AI-Assisted Threat Modeling Framework

A structured instruction set for guiding AI agents through comprehensive security threat modeling.

⚠️ AI Disclaimer: AI outputs are NOT guaranteed to be accurate or complete. LLMs hallucinate and make errors. All outputs MUST be reviewed by qualified security professionals. This tool augments—not replaces—human expertise.

📋 Status: Developed for Cursor with Claude models. Tested primarily in Automatic mode. Collaborative mode and diverse system types need further validation. The complete process is resource-intensive—premium AI plans recommended.

Quick Start

Clone this repository
Open Workspace in Cursor IDE or CLI (or compatible AI editor)
Place target documentation in targets/[system-name]/external-resources/
Initiate by prompting: "Perform a threat model on ./targets/[system-name]/"
Select options when asked (see below)

Startup Selections

The agent will prompt you to select both operational mode and critic review preference before starting:

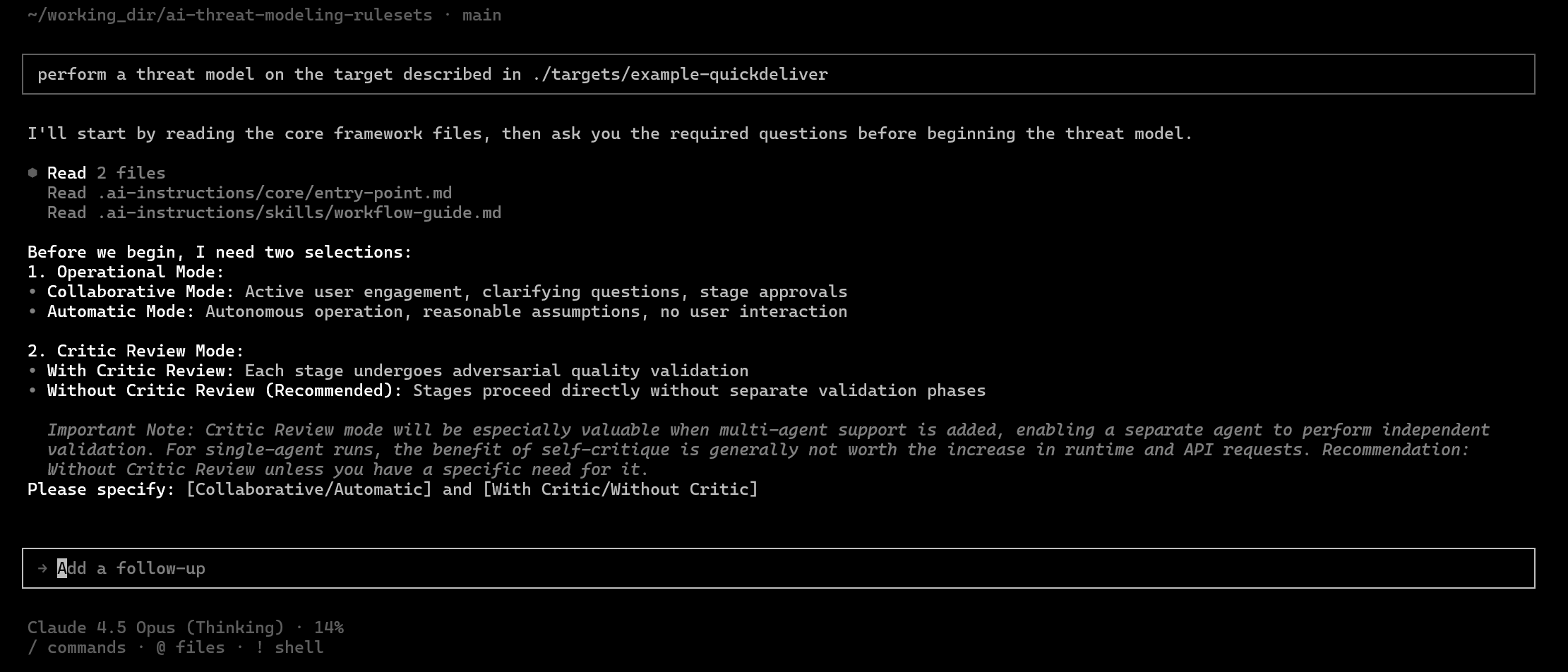

Initial Prompt - Mode Selection

Mode	Description
Collaborative	User answers questions, reviews/approves each stage
Automatic	Fully autonomous, uses provided documentation only

Critic Review	Description
Without Critic (Recommended)	Direct execution, 50-75% faster
With Critic	Adversarial validation after each stage (better suited for future multi-agent setups)

Methodology

6-Stage Process

Stage	Output	Description
1	`01-system-understanding.md`	Architecture, components, trust boundaries
2	`02-data-flow-analysis.md`	DFDs, data flows, attack surfaces
3	`03-threat-identification.md`	STRIDE + MITRE ATT&CK + Kill Chain analysis
4	`04-risk-assessment.md`	Risk scoring and prioritization
5	`05-mitigation-strategy.md`	Security controls and roadmap
6	`00-final-report.md`	Executive-ready consolidated report

Key Principles

Evidence-based: All claims traced to source documentation
Confidence-calibrated: HIGH/MEDIUM/LOW/INSUFFICIENT levels
No fabrication: Unknown details acknowledged, not invented
Multi-framework: Integrates STRIDE, MITRE ATT&CK, and Cyber Kill Chain

Repository Structure

hljs language-bash

.ai-instructions/           # Framework instructions
├── core/entry-point.md     # Central entry point
├── modes/                  # Collaborative & Automatic mode configs
└── skills/                 # Modular skills framework
    ├── workflow-guide.md
    ├── documentation-specialist/   # Stages 1, 2, 6
    ├── threat-modeler/             # Stages 3-6
    ├── quality-critic/             # Validation (optional)
    └── shared/                     # Terminology, confidence levels

targets/[system-name]/
├── external-resources/     # Place target documentation here
└── output/threat-model/    # Generated outputs

Example Output

See targets/example-quickdeliver/ for a complete example threat model output, including all 6 stages and supporting JSON working documents.

Platform Support

Platform	Loader File
Cursor	`.cursorrules` (auto-loaded)
GitHub Copilot	`.github/copilot-instructions.md`

Known Limitations

Single-agent context sharing: Critic retains worker context, reducing validation effectiveness
Numeric anchoring: Agent may hit suggested ranges in instructions

Potential Improvements

Multi-agent architecture for true worker/critic separation
Improved Data-Flow Diagram generation
Final report formatting refinements
Remove numeric anchors from instructions

Related Resources

STRIDE - Microsoft threat classification
MITRE ATT&CK - Adversary tactics knowledge base
Cyber Kill Chain - Attack progression framework

License

MIT License - See LICENSE for details.

Created by: Mike Ensing (ensingm2@gmail.com)

This framework augments human security expertise but does not replace it. Always apply critical thinking to AI-generated threat models.
