Biomedical Knowledge Graph Builder with LLM Agent

Build knowledge graphs from biomedical literature and query them with an LLM agent.

Synthesizing findings across thousands of biomedical papers is a manual bottleneck. This tool extracts entities and co-occurrence relationships from PubMed abstracts, then exposes the resulting knowledge graph through an LLM agent that answers questions grounded in cited literature with mandatory document provenance.

TL;DR: PubMed -> scispaCy NER + UMLS linking -> co-occurrence KG -> Neo4j -> agent query with cited sources.

Stack: Python 3.12, scispaCy, UMLS, Neo4j, Claude (Anthropic), Streamlit, SQLite

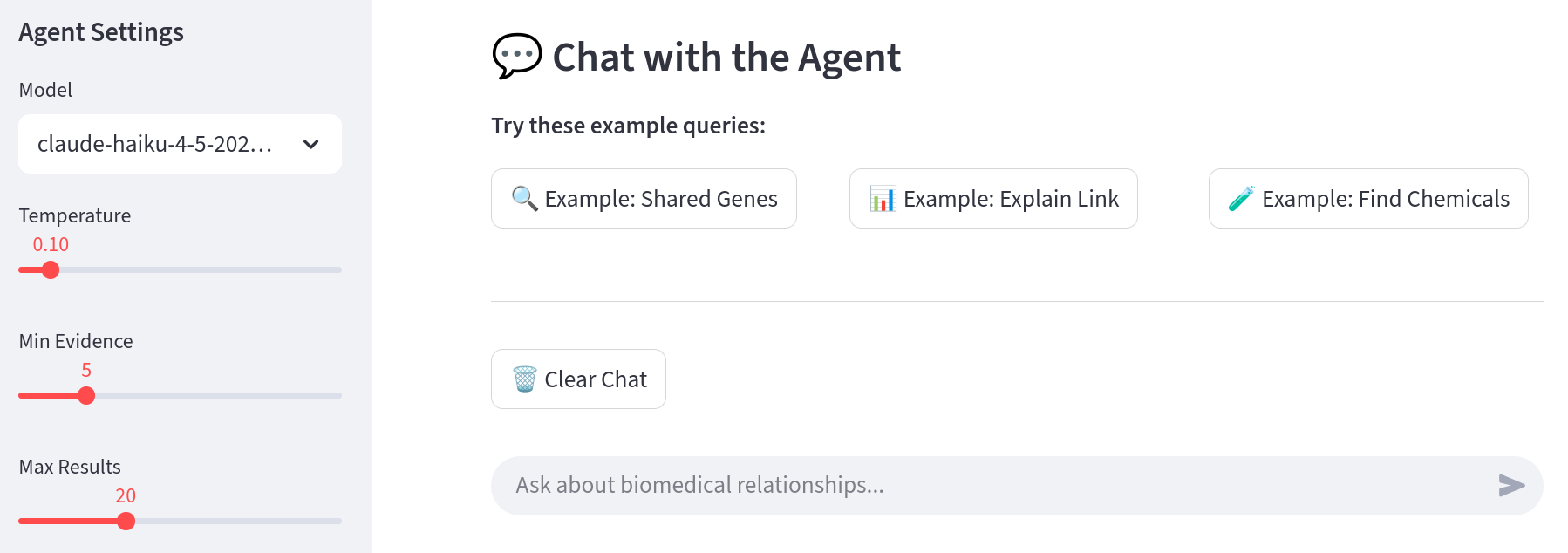

Biomedical KG Agent UI Agent UI: Streamlit interface for querying the biomedical knowledge graph

Example Agent Output

Query: "What genes are associated with both breast cancer and ovarian cancer?"

Full agent response (click to expand)

BRIEF SUMMARY

Several genes are strongly associated with both breast cancer and ovarian cancer, with HER2 showing the highest evidence (1,074 documents). The BRCA genes (BRCA1 and BRCA2) are particularly notable for their role in hereditary susceptibility to both cancers, while p53 mutations are enriched in both disease types. PARP, a DNA repair protein, is also implicated in both cancers, particularly in the context of BRCA-mutant tumors.

SELECTION RATIONALE

Selecting genes with >50 documents of combined evidence across both cancer types. HER2 and HER2 protein are closely related entities (both represent the same gene product); I'm presenting HER2 as the primary result since it has higher evidence. BRCA (163 docs) represents the broader gene family; BRCA1 (94 docs) and BRCA2 (57 docs) are specific genes within this family. All results exceed the 50-document threshold and represent distinct genes with clear relevance to both cancers.

DETAILED RESULTS

HER2 — 1,074 documents; HER2 is amplified or overexpressed in approximately 20-30% of breast cancers and is studied in HER2-overexpressing breast and ovarian cancer cells and tumor xenografts. PARP inhibitor monotherapy is evaluated in HER2-negative breast cancer subtypes and ovarian cancer [30725819, 34957911, 35335736, 35435784, 39600235, 40147045]
BRCA — 163 documents; BRCA mutations are associated with both breast and ovarian cancer development. PARP inhibitors have changed the treatment landscape for advanced ovarian tumors with BRCA mutations and are effective in BRCA 1/2-mutated epithelial ovarian cancer by blocking DNA repair pathways [34907091, 35340889, 35367197, 35641483, 35897700, 37148685]
BRCA1 — 94 documents; BRCA1 mutations are associated with increased breast and ovarian cancer risk. Germline variants in BRCA1 play important roles in the development of breast and ovarian cancer in particular, and BRCA1-associated breast cancers carry a higher propensity of CNS metastasis [34044732, 35340889, 35343191, 35772246, 36928661, 37334492]
p53 — 92 documents; TP53 mutations are enriched in both triple-negative breast cancer and high-grade serous ovarian cancer. Crizotinib combination therapies are emphasized in cancers with high prevalence of p53 mutations, such as TNBC and HGSOC [35393784, 35658233, 35870568, 39001541, 40019487, 40435111]
PARP — 156 documents; PARP1 is amplified in approximately 22.8% of breast cancers. PARP inhibitors (olaparib, rucaparib, niraparib) are approved for epithelial ovarian cancer and are used for breast cancer treatment, particularly in BRCA-mutant tumors [35367197, 35442700, 35466854, 35641483, 35670707, 35834102]
BRCA2 — 57 documents; BRCA2 mutations are associated with increased breast and ovarian cancer risk. Germline variants in BRCA2 play important roles in the development of breast and ovarian cancer, with different mutations associated with varying cancer risks [34044732, 35343191, 35764927, 35772246, 39107554, 39461277]

Use Cases

Literature exploration — Query evidence-backed associations across thousands of abstracts Example: "What genes are associated with both breast cancer and ovarian cancer?"
Evidence inspection — Summarize the literature supporting a specific graph connection Example: "How is BRCA1 linked to breast cancer?"
Pattern discovery — Explore co-occurrence patterns across genes, diseases, and chemicals Example: "What chemicals are related to BRCA1?"

Approach: This is a research exploration tool for biomedical literature analysis. The knowledge graph captures sentence-level co-occurrence relationships.

Features

Literature ingestion (PubMed) with MeSH terms, DOIs, and author keywords
Biomedical NER via multi-model scispaCy ensemble (chemicals, diseases, genes, anatomy)
Co-occurrence extraction with sentence-level evidence and frequency statistics
Knowledge graph storage in SQL and Neo4j
LLM agent for natural language research queries
Streamlit web UI for interactive querying

All agent queries are pre-validated with mandatory document provenance - no dynamic Cypher generation. See Agent for details.

Architecture

hljs language-mermaid

graph TD
    A[PubMed API<br/>Fetch abstracts] --> B[(corpus.db<br/>raw abstracts + metadata)]
    B --> C[NER Pipeline<br/>scispaCy multi-model ensemble<br/>+ UMLS entity linking]
    C --> D[(nlp.db<br/>extracted entities + UMLS links)]
    D --> E[KG Builder<br/>co-occurrence extraction<br/>+ relationship statistics]
    E --> F[(kg.db<br/>knowledge graph)]
    F --> G[Migration<br/>filtering + Neo4j import]
    G --> H[(Neo4j<br/>graph database)]
    H --> I[Agent + UI<br/>LLM-powered queries + Streamlit]

Prerequisites

Python 3.12, Poetry
Neo4j 5.x+: Self-hosted or Neo4j Aura (required for agent + UI)
ANTHROPIC_API_KEY: Required for the LLM agent (optional for CLI-only pipeline)
UMLS: Entity linking uses scispaCy's built-in UMLS linker - no API key or UMLS license needed

System Requirements

RAM: 16 GB minimum. The pipeline peaks at ~10 GB for the default 20K-abstract build, dominated by the UMLS linker model (~6 GB). Entity data adds ~0.5 GB per 20K abstracts. For larger corpora (100K+), 32 GB is recommended. CPU-only; no GPU required.
Disk: ~2 GB one-time download (scispaCy models + UMLS knowledge base), plus ~750 MB per 20K abstracts (SQLite databases).

Getting Started

Clone and install:

hljs language-bash

git clone https://github.com/msajitz/biomed-kg-agent.git
cd biomed-kg-agent
poetry install

Run a demo pipeline (~5 min, no Neo4j needed):

hljs language-bash

make quick

This fetches 100 PubMed abstracts, runs multi-model NER with UMLS entity linking, and builds a co-occurrence knowledge graph - all as SQLite databases in data/.

Data scale: For meaningful exploration, use make build for a 20K-abstract full pipeline (~2 hours).

(Optional) Set up Neo4j + agent:

hljs language-bash

cp .env.example .env   # edit with your Neo4j credentials and Anthropic API key
make migrate DIR=<output_dir>
poetry run streamlit run src/biomed_kg_agent/ui/app.py

Replace <output_dir> with the directory printed by the pipeline (e.g., data/quick_20250225_143000).

For step-by-step control and all CLI options: poetry run biomed-agent --help

Makefile Shortcuts

For convenience, the Makefile wraps the most common workflows:

Command	Description
`make quick`	Full pipeline, 100 abstracts (~5 min)
`make build`	Full pipeline + Neo4j migration, 20K abstracts (~2 hours)
`make demo SEARCH_TERM="diabetes"`	Custom topic demo, 100 abstracts (requires SEARCH_TERM)
`make continue DIR=data/...`	Resume from existing run directory
`make migrate DIR=data/...`	Migrate a KG to Neo4j
`make test`	Run pytest + pre-commit checks
`make clean`	Remove generated data

Environment Variables

Variable	Required	Default	Description
`NEO4J_URI`	For agent/UI	`bolt://localhost:7687`	Neo4j connection URI
`NEO4J_USER`	For agent/UI	`neo4j`	Neo4j username
`NEO4J_PASSWORD`	For agent/UI	-	Neo4j password
`ANTHROPIC_API_KEY`	For agent/UI	-	Anthropic API key (model config: Agent docs)
`ANTHROPIC_MODEL`	No	`claude-haiku-4-5-20251001`	LLM model for agent (see Agent docs)
`PUBMED_EMAIL`	No	-	Recommended for bulk PubMed downloads
`SQLITE_DB_PATH`	No	`data/nlp.db`	SQLite path for cited abstract lookup

See .env.example for a quick-start template.

Development

hljs language-bash

poetry install --with dev
make test                      # pytest + pre-commit
poetry run pre-commit run -a   # lint/format checks only

211 tests, 85%+ line coverage on pipeline, NER, and KG modules. Agent and UI modules require live services and are validated separately (agent validation).

Documentation

Agent - Agent architecture, tools, and customization
Data Model - Knowledge graph schema and query patterns
Known Limitations - Current limitations and workarounds
Validation - NER performance metrics and reproducibility
Scripts - Benchmarking, manual verification, and utility scripts
Validation Metrics - NER/linking coverage results (see methodology)
Agent Tool Routing & Grounding Validation - Tool-routing validation and hallucination spot-checks

To run notebooks: poetry install --with dev,notebook

Acknowledgments

scispaCy - Neumann et al., 2019. Biomedical NER and entity linking.
UMLS - Unified Medical Language System (NLM/NIH)
Neo4j - Graph database
Anthropic Claude - LLM agent backbone

License

This project is licensed under the Apache 2.0 License - see the LICENSE file for details.
