C4 Diagram Skill for Claude Code

Generate C4 Container diagrams (Simon Brown's standard) as editable .drawio files directly from Claude Code conversations.

What It Does

• Generates C4 Container-level architecture diagrams
• Outputs editable .drawio XML (opens in draw.io desktop or web)
• Follows the official C4 color scheme and notation
• Strict layered layout: Person → System Boundary → External Systems
• Every element gets explicit coordinates (no auto-layout drift)
• Legend included on every diagram
• Solid arrows = synchronous, dashed = asynchronous

Example

Ask Claude Code:

/c4-diagram

Draw a C4 container diagram for an e-commerce system with:
- Web app (React), mobile app (Flutter)
- API gateway (Node.js)
- Order service, payment service (Python)
- PostgreSQL database, Redis cache
- External: Stripe payments, SendGrid email

Claude generates a .drawio file you can open and edit in draw.io:

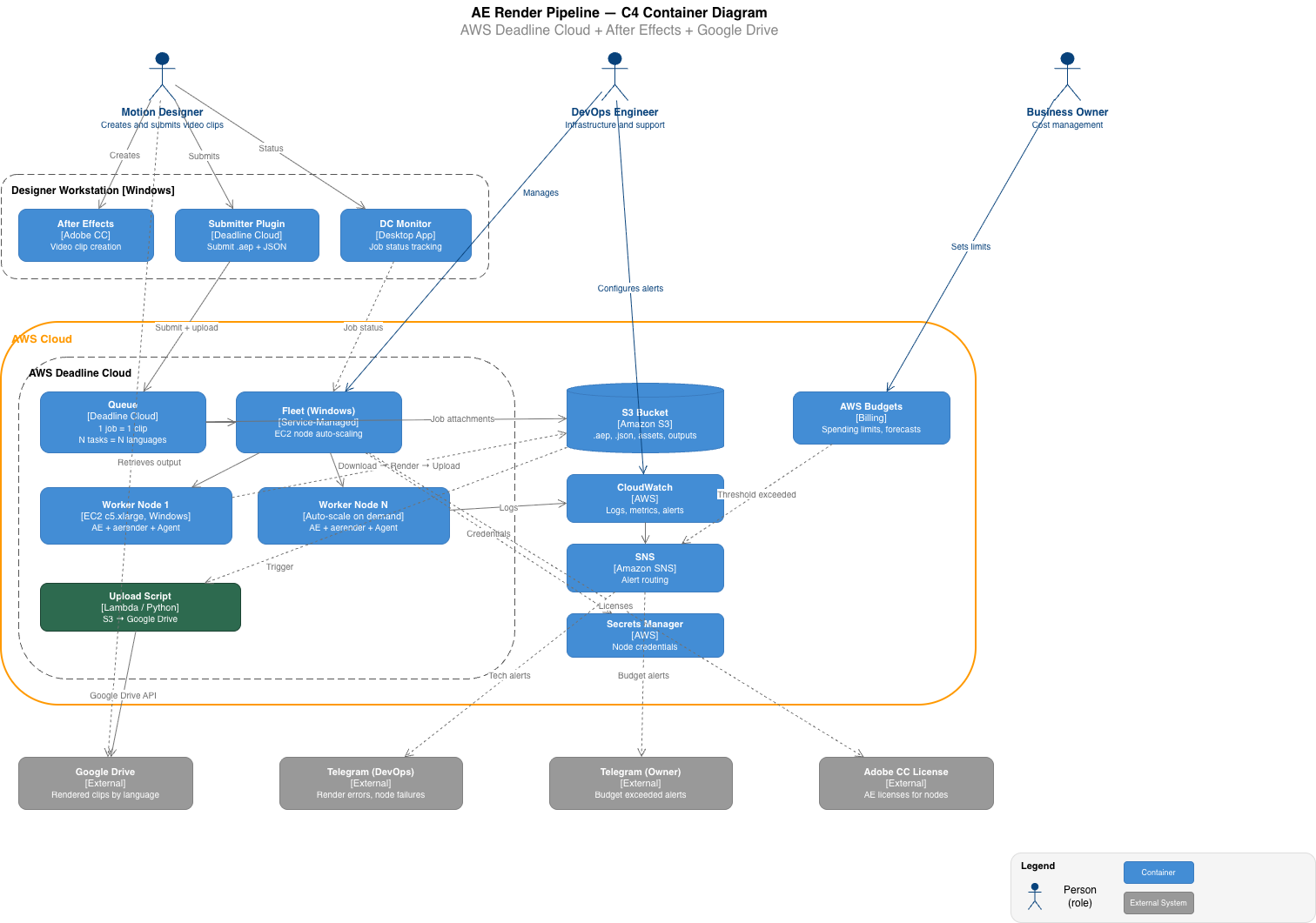

Real output: AWS Deadline Cloud render pipeline with 3 persons, 2 system boundaries, 14 containers, 4 external systems.

Installation

Copy the skill into your project:

# Clone
git clone https://github.com/nicholaev/c4-diagram-skill.git

# Copy into your project
cp -r c4-diagram-skill /your-project/.claude/skills/c4-diagram

Or add directly to your project's .claude/skills/ directory:

cd your-project
mkdir -p .claude/skills
git clone https://github.com/nicholaev/c4-diagram-skill.git .claude/skills/c4-diagram

Then start Claude Code in your project. The /c4-diagram command will be available.

File Structure

c4-diagram-skill/
├── SKILL.md                        # Main skill definition
├── references/
│   ├── element-templates.md        # XML templates for each C4 element
│   ├── drawio-template.md          # Base .drawio file structure
│   └── legend-template.md          # Legend XML template
├── examples/
│   └── ecommerce-example.drawio    # Example output
└── README.md

C4 Elements Supported

Connection Types

Every connection is labeled with an action and protocol.

Why .drawio?

• Editable: modify the diagram after generation (move elements, change labels, add notes)
• Universal: opens in draw.io desktop (free), web app, VS Code extension, Confluence, Notion
• Version control friendly: XML diffs are readable
• Export: PNG, SVG, PDF from draw.io with one click

C4 Model Reference

This skill generates Container diagrams (Level 2 in the C4 model):

For the full C4 model specification, see c4model.com.

License

MIT
