📄 Claude Cheatsheet Generator

Turn your course slides and PDFs into dense, exam-ready LaTeX cheatsheets — powered by Claude Code.

One command. Browser-based config. AI-generated LaTeX. Iterative editing loop. Done.

you: /cheatsheet-generator
      ↓
 ┌─────────────────────────────────────────────────────────┐
 │  Phase 1: Configure in browser                         │
 │  → paper size, columns, colors, font, file selection   │
 ├─────────────────────────────────────────────────────────┤
 │  Phase 2: Claude reads your materials & generates .tex  │
 │  → PDFs, PPTX, Markdown, images — all supported        │
 ├─────────────────────────────────────────────────────────┤
 │  Phase 3: Live editor in browser                        │
 │  → request changes in natural language, Claude edits    │
 └─────────────────────────────────────────────────────────┘
      ↓
 cheatsheet.tex — ready for Overleaf (XeLaTeX)

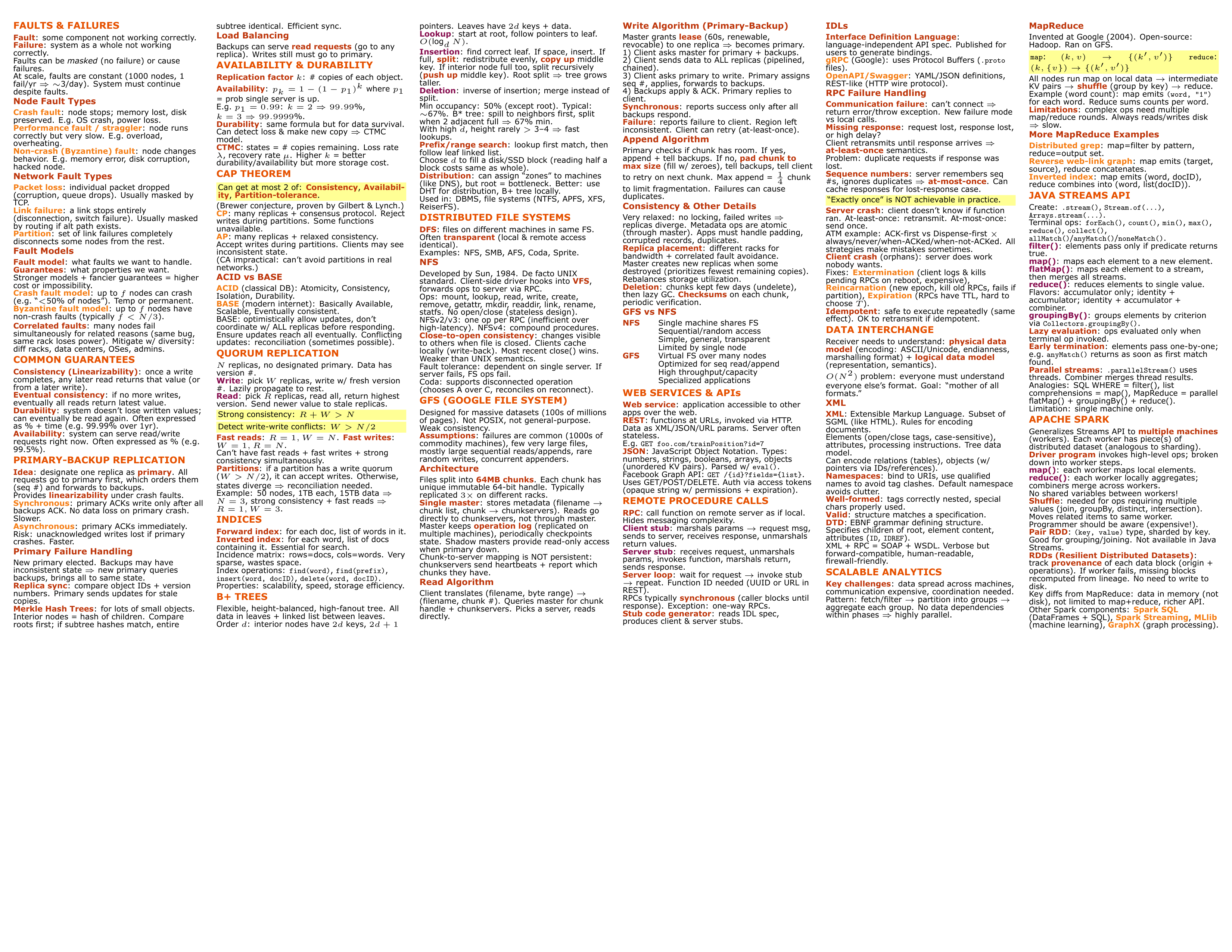

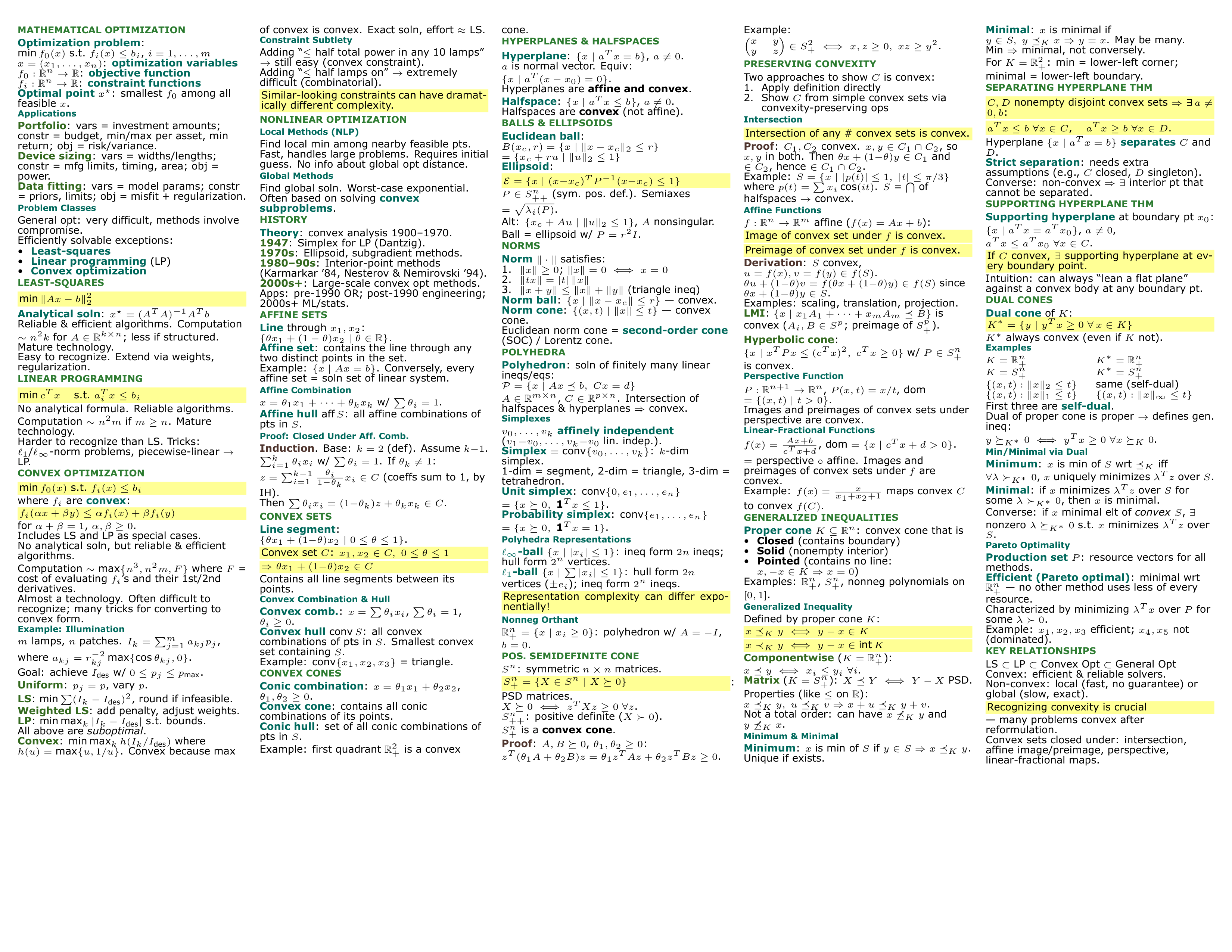

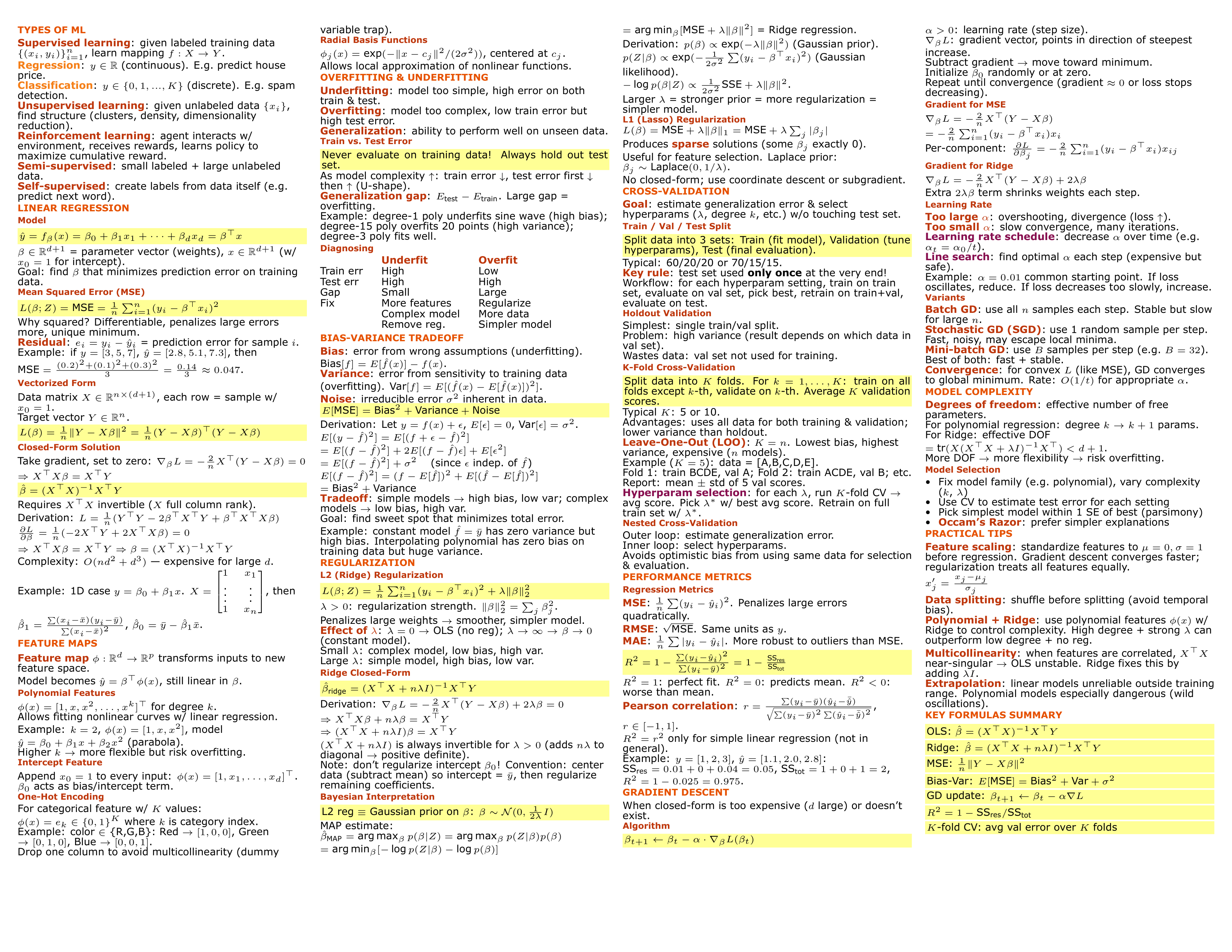

📸 Examples

Generated cheatsheets — compiled in Overleaf with XeLaTeX:

Sample materials are available in skills/cheatsheet-generator/examples/sample_materials/ — try them yourself!

✨ Features

• Multi-format input — reads PDFs (with images/diagrams), PPTX (text + embedded media), Markdown, plain text, and images (PNG/JPG)
• Browser-based configuration — clean UI to set paper size, columns (2–6), font, margins, color scheme, detail level, and select which files to include
• 5 color schemes — Classic, Ocean, Forest, Sunset, Mono — all designed for print readability
• Extreme density — fills every inch of the page with color-coded, abbreviated, formula-heavy content
• Smart organization — groups by topic hierarchy, not source file order; prioritizes exam-focus topics
• Iterative editing — browser-based editor where you describe changes in plain English (or attach images); Claude applies them live
• Image-aware — upload screenshots of formulas or diagrams during editing; Claude sees and incorporates them
• XeLaTeX-ready — output compiles directly in Overleaf with custom fonts

🚀 Quick Start

Install

npx skills add https://github.com/Evan715823/cheatsheet-generator-skill

Then install Python dependencies:

pip install flask python-pptx pymupdf

Use

1. cd into a folder containing your course materials (PDFs, slides, notes)
2. Run Claude Code and type:
   hljs language-csharp

   Copy

   generate a cheatsheet for my exam based on the <your material files>


   Or use the slash command directly:
   hljs language-bash

   Copy

   /cheatsheet-generator


3. A browser window opens — configure your cheatsheet layout, select files, pick a color scheme
4. Claude reads all materials and generates cheatsheet.tex
5. Another browser window opens — request edits in natural language until you're happy
6. Upload cheatsheet.tex to Overleaf, compile with XeLaTeX

🎨 Color Schemes

All schemes include yellow highlight for critical formulas.

⚙️ Configuration Options

📁 Project Structure

skills/cheatsheet-generator/
├── SKILL.md                    # Claude Code skill definition (orchestrator)
├── scripts/
│   ├── config_server.py        # Phase 1: browser config form server
│   └── editor_server.py        # Phase 3: iterative editing server
├── templates/
│   ├── cheatsheet_base.tex     # Parameterized LaTeX template
│   ├── config_form.html        # Configuration UI
│   └── editor_ui.html          # Editing/preview UI
└── examples/
    ├── sample_output.tex       # Reference cheatsheet (compilable)
    ├── sample_materials/       # Sample PDFs to try the skill
    └── screenshots/            # README images

🔧 How It Works

Phase 1 — Configure

A local Flask server launches and opens a browser form. You configure layout (paper, columns, font, margins), content settings (detail level, proofs, examples), select a color scheme, and pick which files to include. Submitting writes .cheatsheet_config.json and the server exits.

Phase 2 — Generate

Claude reads every selected file:

• PDFs — read directly (text + images via multimodal vision)
• PPTX — extracts text via python-pptx + all embedded images
• Markdown/Text — read directly
• Images — read directly (Claude is multimodal)

Then generates a complete cheatsheet.tex using the base template with your config values. Content is organized by topic, color-coded with semantic commands (\concept{}, \process{}, \category{}, \important{}), and packed to fill the entire page.

Phase 3 — Edit

Another Flask server launches with a split-panel editor:

• Left: LaTeX source with syntax highlighting + optional PDF preview
• Right: natural language edit requests + image upload + change history

The server uses a blocking HTTP protocol — no polling, no file watching. When you submit a request, Claude reads the current .tex, applies your change, and posts the result back. Repeat until satisfied, then click Done.

💡 Tips

• Compile with XeLaTeX in Overleaf (not pdfLaTeX) — required for fontspec custom fonts
• Exam focus field is powerful — write "focus on: gradient descent, bias-variance tradeoff" and those topics get more space
• Image upload in editor — screenshot a formula from your textbook, paste/drag it into the editor, and ask Claude to add it
• Multiple cheatsheets — run the skill in different folders for different courses; each gets its own cheatsheet.tex
• Install latexmk and pdftoppm for live PDF preview in the editor (optional)

📋 Requirements

📄 License

MIT
