A Claude Code Skill for browser automation via WebSocket communication with the Chrome extension, enabling web navigation, interaction, screenshots, and page snapshots.

English | 中文 | Changelog

Features

Core Capabilities

Page Navigation - Navigate to URLs, go back/forward
Element Interaction - Click (ref or coordinates), hover, type text, select options, drag elements
Element Search - Search elements by keyword, get element coordinates
Multi-Tab Management - List, open, switch, close tabs
Screenshots - Capture visible page as PNG (save to file or return base64)
Page Snapshots - Get ARIA accessibility tree for structured page analysis
Page Content - Get plain text content, full HTML source code
Keyboard Input - Press any key, submit forms
Console Logs - Retrieve browser console output

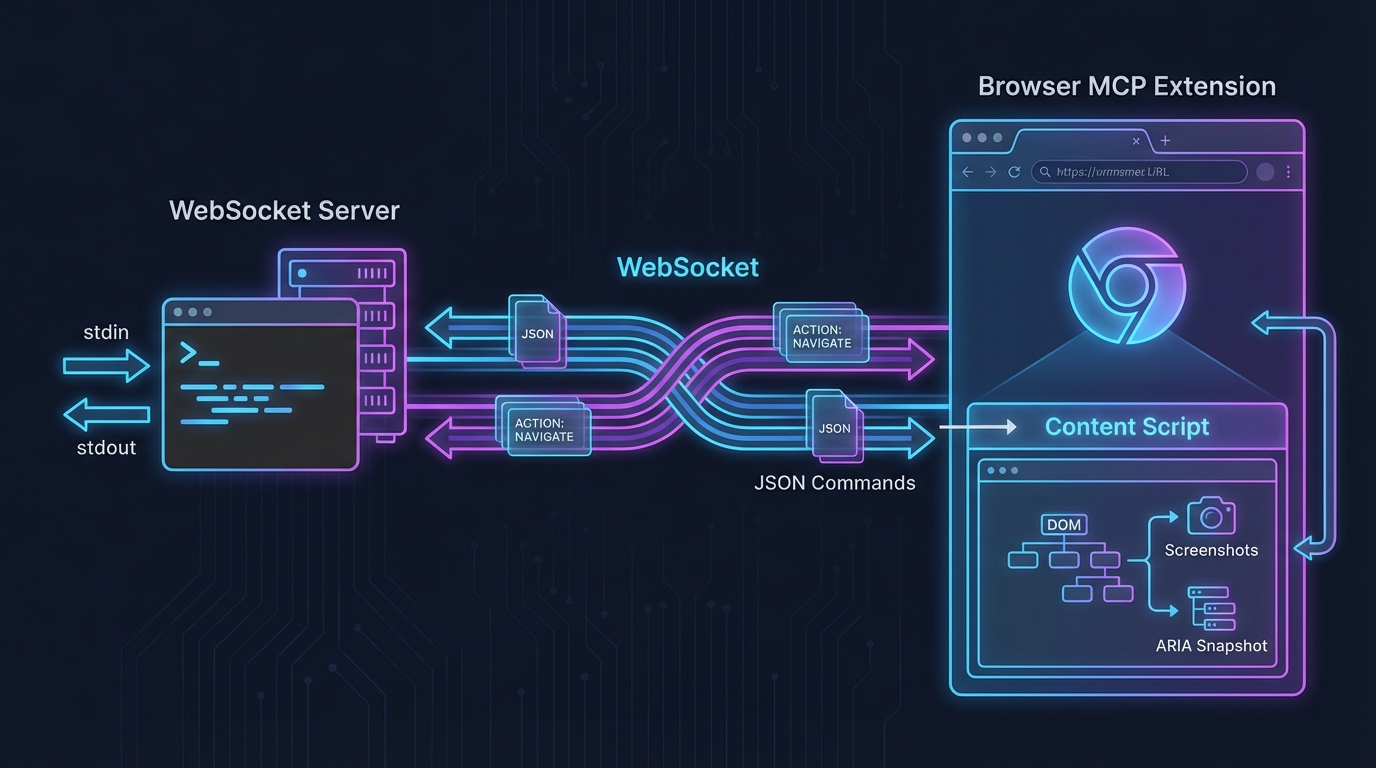

Architecture

The server communicates with the Browser MCP Chrome extension over WebSocket. Commands are sent as JSON via stdin, and results are returned via stdout.

Additional Tools

Batch URL Resolver - Resolve redirect URLs in bulk via HTTP requests (no browser required)

System Requirements

Requirement	Details
Python	3.8+
Chrome	With Browser MCP extension installed
OS	Windows / macOS / Linux
persistent-shell-skill	Recommended for Claude Code to keep the server running

Installation

1. Clone the Repository

hljs language-bash

git clone https://github.com/Tonyhzk/chrome-agent-skill.git

2. Install the Chrome Extension

Open chrome://extensions/ in Chrome
Enable Developer mode
Unzip the .zip extension package from src/browser-chrome-agent/assets/, then click "Load unpacked" and select the unzipped directory; or load the src/browser-mcp-crx/ source directory directly
Pin the Browser MCP extension for easy access

3. Install Python Dependencies

hljs language-bash

pip3 install websockets

4. Set Up Shared Configuration (Optional)

If you use a shared .claude configuration across projects:

hljs language-bash

python3 setup_claude_dir.py

This creates a symlink from the project's .claude directory to your shared configuration.

Quick Start

1. Start the WebSocket Server

hljs language-bash

python3 src/browser-chrome-agent/scripts/server.py --port 9009

2. Connect the Extension

Click the Browser MCP extension icon in Chrome and click Connect.

3. Send Commands

Send JSON commands via stdin (one per line):

hljs language-json

{"action": "navigate", "params": {"url": "https://example.com"}}
{"action": "snapshot", "params": {}}
{"action": "click", "params": {"ref": "s1e5"}}
{"action": "screenshot", "params": {"savePath": "./screenshot.png"}}

Available Actions

Action	Params	Description
`navigate`	`{"url": "..."}`	Navigate to URL
`go_back`	`{}`	Go back
`go_forward`	`{}`	Go forward
`click`	`{"ref": "s1e5"}` or `{"x": 500, "y": 100}`	Click element (ref or coordinates)
`hover`	`{"ref": "s1e5"}`	Hover over element
`type`	`{"ref": "s1e5", "text": "...", "submit": false}`	Type text
`select_option`	`{"ref": "s1e5", "values": ["..."]}`	Select dropdown option
`drag`	`{"startRef": "s1e5", "endRef": "s1e8"}`	Drag element
`press_key`	`{"key": "Enter"}`	Press key
`get_coordinates`	`{"ref": "s1e5"}`	Get element coordinates
`find_element`	`{"keyword": "search"}`	Search elements by keyword, return matching refs
`find_and_locate`	`{"keyword": "search", "index": 0}`	Search element and get coordinates immediately
`get_text`	`{}` or `{"max_length": 5000}`	Get page plain text content
`wait`	`{"time": 2}`	Wait (seconds)
`screenshot`	`{}` or `{"savePath": "path"}`	Capture screenshot
`snapshot`	`{}` or `{"snapshot_file": "path"}`	Get ARIA page snapshot. Supports `snapshot_file` to save to file, `inline: true` to return content directly, `max_length` to control truncation
`get_html`	`{"savePath": "path"}`	Get full page HTML source and save to file
`xpath_query`	`{"xpath": "//h1"}`	Execute XPath query on page. Supports `save_path` to save full results, `max_length` to control display length
`get_console_logs`	`{}`	Get console logs
`list_tabs`	`{}`	List all tabs
`new_tab`	`{"url": "..."}`	Open new tab (url optional)
`switch_tab`	`{"tabId": 123456}`	Switch to specified tab
`close_tab`	`{"tabId": 123456}`	Close specified tab
`status`	-	Check connection status
`quit`	-	Shut down server

Element References

Interactive actions (click, hover, type, etc.) use ref values from the ARIA snapshot to target elements. Use find_element or find_and_locate to search elements by keyword and get their refs or coordinates directly. Use snapshot only when you need to inspect the full page structure.

Project Structure

hljs language-r

chrome-agent-skill/
├── src/browser-chrome-agent/
│   ├── SKILL.md              # Skill definition
│   ├── scripts/
│   │   ├── server.py         # WebSocket server (main entry)
│   │   ├── context.py        # WebSocket connection manager
│   │   ├── tools.py          # Browser automation tools
│   │   ├── utils.py          # Utility functions
│   │   ├── batch_resolve_urls.py  # Batch URL resolver
│   │   └── requirements.txt  # Python dependencies
│   └── assets/               # Chrome extension packages
├── src/browser-mcp-crx/      # Modified Chrome extension source code
├── upstream/                 # Original Browser MCP extension & source archive
├── 0_Doc/                    # Documentation
├── 0_Design/                 # Design resources
├── setup_claude_dir.py       # Shared config symlink tool
├── CHANGELOG.md              # English changelog
└── CHANGELOG_CN.md           # Chinese changelog

Acknowledgements

This project is a Python rewrite of Browser MCP (originally TypeScript/Node.js), adapted as a Claude Code Skill with a WebSocket-based stdin/stdout control interface.

Browser MCP - The original project and Chrome extension that powers browser automation

License

Apache License 2.0

Author

Tonyhzk

GitHub: @Tonyhzk
Email: 1125258615@qq.com
