Diagrams that move. A Claude AI skill that turns a plain-English description — or a Mermaid source — into an animated technical diagram: a self-contained HTML/SVG file where dashed connectors stream in the direction of execution and light dots travel through the system like requests in flight. The style you see on modern infra landing pages (Diagrid, Temporal, Inngest).

▶ Watch real diagrams run live → — unedited skill output, not a video.

Two modes — describe a workflow or a system in plain English (or paste Mermaid), and get one self-contained HTML file that's already moving:

Flow mode	Architecture mode

What it does

Describe a workflow or a system — in plain English, or paste a Mermaid diagram — and Claude hands back a single .html file that's already moving. The name is the implementation: stroke-dashoffset offset animation + animateMotion paths — no libraries, no GIF rendering, no design tools.

• Inputs (today): a natural-language description, or a Mermaid flowchart / graph / stateDiagram-v2 source — the same animated result either way.
• Output styles (today): Flow — workflows, pipelines and state machines, where execution visibly streams from START to END through branches and merges; and Architecture — systems and topology, with semantic component colors, region/security boundaries, a legend, and the differentiator: animated request journeys, a dot hopping client → gateway → service → database and back.
• Refine in plain language: "make the auth path stand out", "put Redis next to Postgres", "split the workers into a second diagram."
• The output is dependency-free: one HTML file — vector, loops forever, a few KB, opens in any browser.

Install

Needs a Claude plan that includes skills (Pro, Max, Team, or Enterprise).

Claude Code — one command. -g installs it globally (every project sees it); drop -g to install into the current project only (./.claude/skills/):

npx skills add csthink/dashmotion -a claude-code -g

claude.ai — download dashmotion.zip from Releases, then Settings → Capabilities → Skills → + Add → upload → toggle on.

Upgrading

No Claude client tells you when a skill has a new version — you pull updates yourself. On Claude Code, one command refreshes it in place:

npx skills update dashmotion -g -y

Name the skill: a bare npx skills update -g -y updates every globally-installed skill, not just dashmotion — which may pull updates into others you didn't mean to touch. Drop -g for a project-local install; re-running the install command works too. On claude.ai there's no in-place update — delete the old skill and upload the new dashmotion.zip.

Check which version you're on — it lives in the skill's SKILL.md; compare it against the latest release (npx skills list shows the path, not the version):

grep '^version:' ~/.claude/skills/dashmotion/SKILL.md     # project-local: ./.claude/skills/dashmotion/SKILL.md

{
  "hooks": {
    "SessionStart": [
      { "matcher": "startup", "hooks": [
        { "type": "command", "command": "npx skills update dashmotion -g -y >/dev/null 2>&1 || true" }
      ] }
    ]
  }
}

Uninstall:

npx skills remove dashmotion -g         # installed via the skills CLI (drop -g if project-local)
rm -rf ~/.claude/skills/dashmotion      # installed by unzipping (use ./.claude/... for project-local)

Quick start

Then just ask — one sentence is enough to see it work:

Use dashmotion to draw a simple 3-step login flow.

The two longer prompts below generated the demos at the top — paste either to reproduce it:

Flow — the left demo:

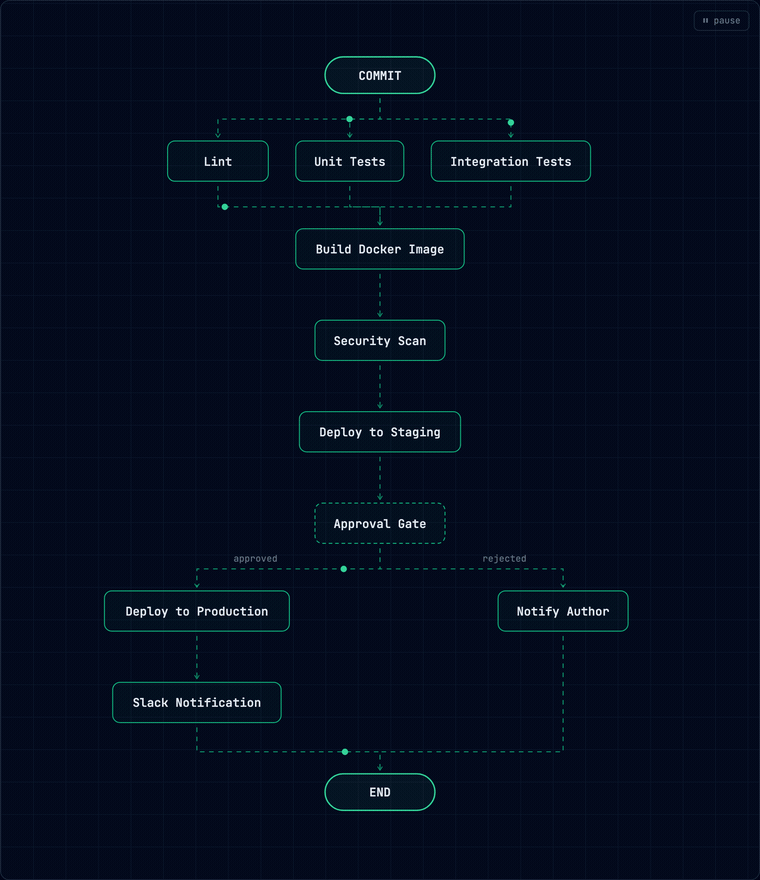

Use dashmotion to visualize our CI/CD pipeline: a commit runs lint, unit tests and integration tests in parallel; all three merge into building a Docker image; then a security scan; then a deploy to staging; then a manual approval gate — approved deploys to production and posts a Slack notification, rejected notifies the author and ends.

Architecture — the right demo:

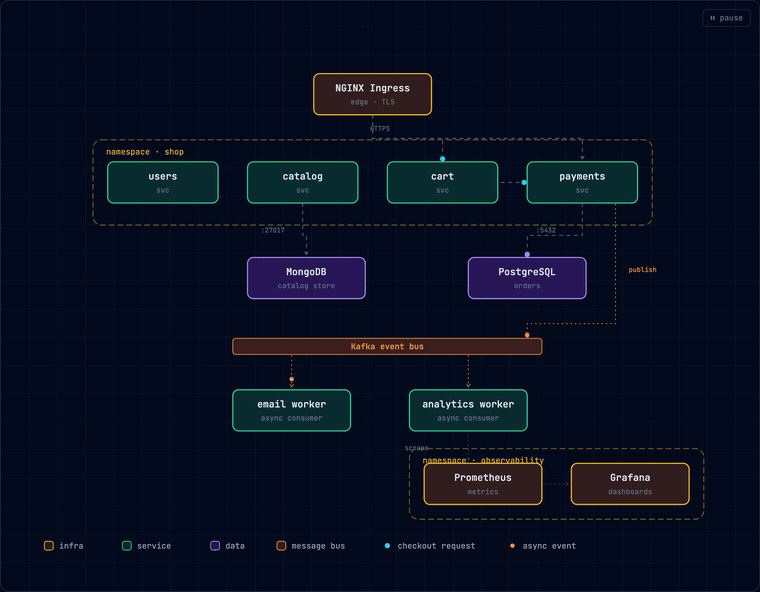

Use dashmotion to draw our Kubernetes microservices platform and animate the main request path: an NGINX ingress in front; users, catalog, cart and payments services in the 'shop' namespace; a Kafka bus between the services and two async workers (email worker, analytics worker); PostgreSQL for orders and MongoDB for the catalog; Prometheus and Grafana in an observability namespace. Animate a checkout request from ingress through cart and payments to PostgreSQL, plus an async event from payments through Kafka to the email worker.

A few things worth knowing:

• Each generation lays things out a little differently — yours won't be pixel-identical to the demo, but it's the same diagram.
• You don't have to spell everything out: point it at a design doc ("use dashmotion to draw the architecture in docs/design.md") or just ask for a flowchart / architecture diagram of what you're building.
• Already have the diagram as Mermaid? Paste it — see Mermaid input below.
• Don't like the result? Say so in plain language and it refines from there.

Mermaid input

Already have the diagram as Mermaid? Paste it — dashmotion turns a static flowchart/graph or stateDiagram-v2 source into the same moving diagram, no redrawing. Topology and labels are kept exactly; only the layout and colors are recomputed.

Use dashmotion to animate this mermaid diagram:

```mermaid
flowchart TB
    A[Receive ticket] --> B{Severity?}
    B -->|P1| C[Page on-call]
    B -->|P2| D[Create incident]
    C --> E[Mitigate]
    D --> E
```

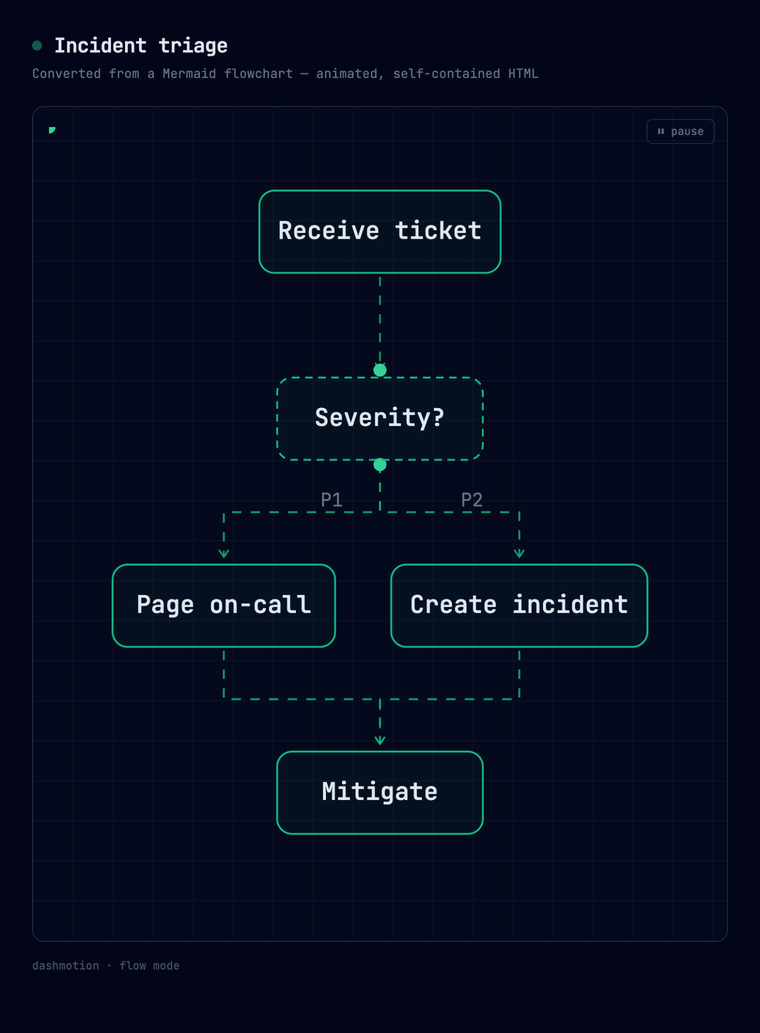

…becomes a moving flowchart — dashed connectors stream from Receive ticket through the Severity? decision, fan out, and merge into Mitigate, with a dot riding the path:

What to expect:

• Preserved exactly: every node and label, every edge and edge label, subgraph containment, and edge kinds — --> animates, -.-> becomes a dotted async edge, ==> marks the main path and gets the traveling dot.
• Recomputed by design: layout (always top-down — LR sources are re-laid out; structure is preserved, geometry is not) and colors (classDef/style/linkStyle are replaced by dashmotion's semantic palette).
• Subgraphs that name system components (namespaces, VPCs, tiers) route to architecture mode with boundaries and request journeys; plain process subgraphs stay in flow mode.
• Other mermaid types (sequence, class, ER, gantt) aren't supported — dashmotion says so instead of guessing a lossy conversion.

Why not just a GIF?

Accessibility

All CSS animation is gated behind @media (prefers-reduced-motion: no-preference); SMIL dots are removed by script under reduced motion; every diagram ships a visible pause/play toggle and role="img" + <title>/<desc>.
