Flattrade MCP — Getting Started Guide

Connect your AI assistant (Claude Desktop, or any other MCP-compatible client) to your Flattrade trading account. No coding or installation of developer tools required — just download a single binary file for your operating system.

1. Download the Binary

Download the file that matches your computer from [DOWNLOAD_LINK]:

Not sure which Mac you have? Apple menu → About This Mac. "Apple M1/M2/M3/M4" → use the macOS Apple Silicon binary. "Intel" → use the macOS Intel binary.

Not sure which Windows you have? Almost certainly flattrade-mcp-windows-amd64.exe.

2. What You'll Need

1. The binary file you just downloaded
2. Your Flattrade Client ID (e.g. FT028416)
3. A Flattrade API Key and API Secret (see Step 3 if you don't have these yet)
4. Claude Desktop or another MCP-compatible AI assistant installed

3. Get Your API Key (One-Time Setup)

Skip this step if you already have an API Key and Secret.

1. Log in to Wall

2. Go to Pi (top menu) → click CREATE NEW API KEY



3. Choose your order volume:

   Will you place more than 10 orders per second?	Select
   No (most users)	No
   Yes (high-frequency / algo use)	Yes



If you selected "No" (most users)

1. Enter your Primary IP Address (your computer's public IP, numbers only — e.g. 103.45.67.89). Secondary IP is optional.
2. Fill in the app details:
   • App Name / Short Name: any name you choose
   • Redirect URL: http://localhost:7080
   • Postback URL: leave blank (not needed for this MCP server)
   • Description: a short note about what the app is for
3. Review the summary, accept the Terms & Conditions, and submit

If you selected "Yes" (more than 10 orders/sec)

1. Same IP Configuration and App/URL Configuration as above

2. Additionally upload your strategy details:

   Field	Description
   Strategy	Your strategy for this API key
   Segment	The market segment for this API key
   File	Supporting file for the selected segment

3. Review the summary, accept the Terms & Conditions, and submit

Both paths — after submitting

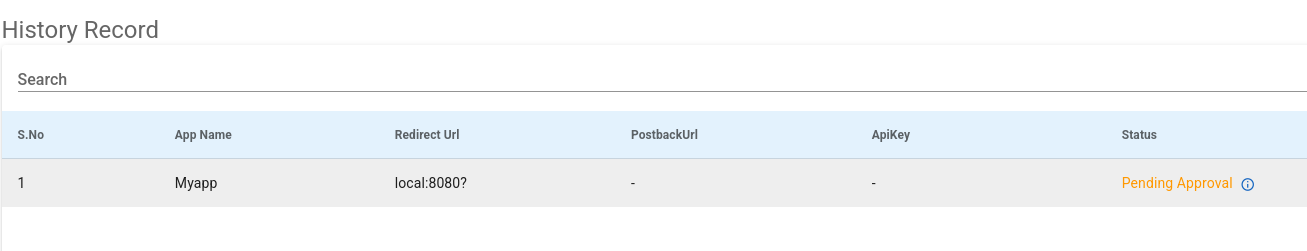

1. Your request shows as Pending Approval:



2. Once approved, your API key is generated:



3. Click the eye icon to reveal your Secret Key:



4. Copy your API Key and API Secret — you'll need both in Step 5

4. Place the Binary File

Put the binary somewhere permanent on your computer.

Windows

1. Create a folder, e.g. C:\Tools\
2. Move the downloaded .exe into it
3. Final path example: C:\Tools\flattrade-mcp-windows-amd64.exe

macOS

mkdir -p ~/flattrade
mv ~/Downloads/flattrade-mcp-macos-m1 ~/flattrade/flattrade-mcp
chmod +x ~/flattrade/flattrade-mcp

(Replace flattrade-mcp-macos-m1 with the file you downloaded)

Linux

mkdir -p ~/flattrade
mv ~/Downloads/flattrade-mcp-linux-amd64 ~/flattrade/flattrade-mcp
chmod +x ~/flattrade/flattrade-mcp

5. Configure Your AI Assistant

Pick whichever option matches how you use Claude.

Option A: Claude Desktop (Edit Config File)

1. Open the config file:

   • Windows: %APPDATA%\Claude\claude_desktop_config.json
   • macOS: ~/Library/Application Support/Claude/claude_desktop_config.json — quickly open it with:
     hljs language-bash

     Copy

     open ~/Library/Application\ Support/Claude/claude_desktop_config.json


     If the file doesn't exist yet, create it (e.g. in TextEdit or VS Code) with the JSON block below as its full content.
   • Linux: ~/.config/Claude/claude_desktop_config.json

2. Add the block below, using the path where you placed the binary and your own credentials:

{
  "mcpServers": {
    "flattrade": {
      "command": "/path/to/flattrade-mcp",
      "env": {
        "FLATTRADE_USER_ID": "YOUR_CLIENT_ID",
        "FLATTRADE_API_KEY": "YOUR_API_KEY",
        "FLATTRADE_API_SECRET": "YOUR_API_SECRET"
      }
    }
  }
}

• Windows example command: "C:\\Tools\\flattrade-mcp-windows-amd64.exe"
• macOS/Linux example command: "/Users/yourname/flattrade/flattrade-mcp"

3. Save the file, then completely quit Claude Desktop (Cmd+Q / close from the system tray) and reopen it
4. Go to Settings → Developer and confirm the flattrade server is listed

Option B: Claude Code (Terminal Command)

If you use the Claude Code CLI instead of (or in addition to) Claude Desktop, you can add the server with a single command — no manual JSON editing needed.

Prerequisites

Claude Code requires Node.js.

1. Download and install it from nodejs.org
2. Open Command Prompt / Terminal and verify with:
   hljs language-bash

   Copy

   node --version


macOS / Linux (bash/zsh)

claude mcp add flattrade \
  --scope user \
  --env FLATTRADE_USER_ID="YOUR_CLIENT_ID" \
  --env FLATTRADE_API_KEY="YOUR_API_KEY" \
  --env FLATTRADE_API_SECRET="YOUR_API_SECRET" \
  -- /path/to/flattrade-mcp

Windows — PowerShell

Use the backtick (`) for line continuation instead of \:

claude mcp add flattrade `
  --scope user `
  --env FLATTRADE_USER_ID="YOUR_CLIENT_ID" `
  --env FLATTRADE_API_KEY="YOUR_API_KEY" `
  --env FLATTRADE_API_SECRET="YOUR_API_SECRET" `
  -- "C:\Tools\flattrade-mcp-windows-amd64.exe"

Windows — Command Prompt (cmd.exe)

cmd.exe doesn't support line continuation the same way — put everything on one line:

claude mcp add flattrade --scope user --env FLATTRADE_USER_ID=YOUR_CLIENT_ID --env FLATTRADE_API_KEY=YOUR_API_KEY --env FLATTRADE_API_SECRET=YOUR_API_SECRET -- "C:\Tools\flattrade-mcp-windows-amd64.exe"

Use whichever version matches your terminal, and replace the binary path with the actual path where you placed it (Step 4), along with your own Client ID, API Key, and API Secret.

• Windows example path: C:\Tools\flattrade-mcp-windows-amd64.exe
• macOS/Linux example path: /Users/yourname/flattrade/flattrade-mcp or /home/yourname/flattrade/flattrade-mcp

Verify it was added:

claude mcp list

Note: Claude Code (terminal) and Claude Desktop use separate config files, so you can set up both at the same time without conflict.

Other MCP-Compatible Assistants

Most MCP clients use the same mcpServers JSON structure shown above, in their own config file. Check your assistant's documentation for the exact config file location, then add the same flattrade block with your binary path and credentials.

6. Log In to Flattrade

In your AI assistant, type:

Login to Flattrade

1. The assistant replies with a login URL — open it in your browser
2. Log in with your Flattrade username and password
3. Review the permissions screen and click Allow
4. Your browser shows a "Connected" page — you can close the tab
5. Back in your AI assistant, type:

Check if login is done

If it replies "Authenticated with Flattrade", you're ready to go.

7. Start Trading

Try a few things:

What is the current price of NIFTY?

Show me my positions

How much cash do I have available?

Buy 1 share of Infosys at market price

Show me the NIFTY option chain at 24000

Daily Login

Your session is saved for the day.

• Still logged in? Just start using it.
• Session expired? Type Login to Flattrade again and repeat the browser login.

What Can You Do?

Troubleshooting

"Not authenticated — call login first" Your session expired. Type Login to Flattrade and complete the browser login again.

Browser shows "This site can't be reached" on localhost:7080 The MCP server isn't running. Close and reopen your AI assistant, then try logging in again.

"Port 7080 busy" Something else on your computer is using port 7080. Close the other application (or restart your computer) and try again.

The assistant doesn't recognize Flattrade commands The MCP server may not be connected. Restart the AI assistant and confirm your config file is saved correctly.

I entered the wrong API Key Edit the config file with the correct key and restart the AI assistant.

(macOS) "Apple could not verify 'flattrade-mcp' is free of malware..." macOS blocks the binary because it isn't signed/notarized by Apple — normal for developer tools distributed outside the App Store. Only proceed if you trust the source of the binary.

1. Try running it once from Terminal: /path/to/flattrade-mcp
2. You'll see the warning — open System Settings → Privacy & Security
3. Scroll to the bottom for a message like "flattrade-mcp" was blocked to protect your Mac → click Allow Anyway
4. Run the binary again: /path/to/flattrade-mcp
5. This time, click Open in the confirmation dialog

Once allowed, Claude Desktop / Claude Code will be able to launch it normally.

Important Notes

• Keep your API Key and Secret private — never share them or commit them to a public repository
• This binary only communicates with Flattrade's official servers
• Your session is stored locally at ~/.flattrade/session.json on your own machine
• Sessions expire daily — log in again each trading day
• Always confirm orders before letting the AI place them — ask for a margin check first

Need Help?

Email support@flattrade.in with:

• Your operating system (Windows / macOS / Linux)
• The exact error message your AI assistant shows
• A screenshot of the browser page (if login fails)
