rive-mcp

Create, edit, inspect, render and live-preview Rive (.riv) animations from Claude — no Rive editor, no cloud, no subscription.

日本語 README はこちら

rive-mcp is a free MCP (Model Context Protocol) server that gives Claude (or any MCP client) full control over .riv files. Unlike the official Rive MCP (which requires the editor running) or paid third-party servers, it works with nothing but a .riv file — and it can even build .riv files from scratch by serializing the binary format directly.

Rendering runs the official Rive runtime (@rive-app/canvas-advanced WASM) inside headless Chromium, so what you see is exactly what ships.

This animation was generated entirely by riv_create — no Rive editor involved.

Highlights

• Generate .riv from JSON — shapes, gradients, embedded PNGs, text, bones + skinning, IK, mesh deformation, keyframe animation with easing, multi-layer state machines, listeners, events, physics baking, particles
• Pro-quality by construction — 28 semantic motion presets (pop-in, staggered rise-in, breathing, stagger-in, parallax-drift, shimmer, …) with professionally tuned amplitudes/easings, an OKLCH design-token generator (riv_design_tokens), motion-quality lint rules (robotic linear movement, teleports, missing stagger), and a one-call critique loop (riv_critique: frames + objective metrics + scoring checklist)
• Real vector art pipeline — import SVG (Figma/Illustrator/Iconify, or npm SVG sets like @twemoji/svg when offline) as true bezier paths (riv_import_svg, riv_asset_search), decompile existing .riv files into editable specs including gradients, blend modes and hand-tuned animation tracks (riv_decompile), plus trim paths (draw-on), clipping masks, blend modes (multiply shadows, screen glows), follow-path motion, solos and detached bezier handles in the scene spec
• Losslessly edit existing .riv — change any property, swap text, delete subtrees (references auto-remapped); round-trip verified pixel-perfect
• Local web Studio — Rive-editor-style 3-pane UI (hierarchy / canvas with click-select & drag / inspector / timeline) with hot reload; edits apply live. Also includes a bezier curve editor for hand-tuning keyframe easing (drag control points, hold/linear/cubic switching, 10 one-click presets), a state machine graph view (node graph of layers/states/transitions with lint findings and live-playback state highlighting), and an onion skin overlay (0-5 surrounding frames) for checking motion at a glance
• Human ⇄ AI loop — an "Instructions for AI" box in the Studio: you type feedback, the AI picks it up via riv_studio_notes (now auto-attached with the current selection/artboard/animation/time context) and fixes the file, your browser updates instantly
• Auto-rig characters — one call turns a character PNG into a rigged .riv with cutout parts, bone-skinned head mesh, eye blink, idle/happy animations and a state machine
• Everything verified — generated files are loaded, rendered and state-machine-driven by the official runtime in E2E tests

Tools (28)

Showcases: professional assets in, professional motion out

Four sample scenes are built end-to-end by the pipeline, each rebuildable with node samples/<name>/build-scene.mjs:

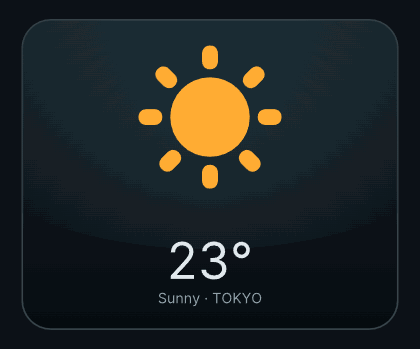

• samples/weather-widget/ — the hero animation above: a UI weather card that cycles sunny → rain (with a lightning flash) → sunny on one looping timeline. Twemoji sun/cloud/bolt imported as SVG, colors from riv_design_tokens, ambient motion from presets, everything clipped to the card.
• samples/cosmic-journey/ — every piece of artwork is professionally designed (Twemoji rocket, ringed planet, moon, stars, comet — fetched as SVG via npm and converted with riv_import_svg); colors from riv_design_tokens, motion from presets, composition fixed through the riv_critique loop.

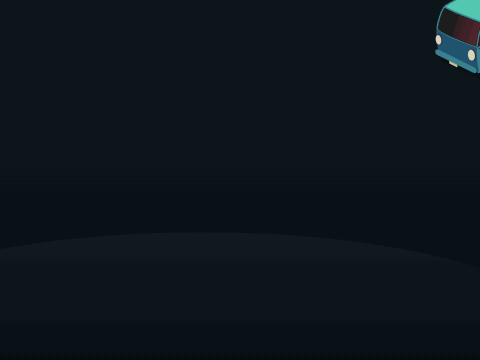

• samples/night-delivery/ — remixes a professional .riv: Rive's official truck (hand-drawn bezier art and its hand-tuned wheel/body animation tracks) is extracted with riv_decompile and composed into a new night scene with a Twemoji moon, scrolling road and a screen-blended headlight beam.
• samples/launch-success/ — hand-authored SVG + tokens + presets + TrimPath draw-on + particles + intro→idle state machine.

Twemoji artwork © Twitter/X and contributors, CC-BY 4.0; truck artwork from Rive's official example files.

Design quality guidance

riv_create output can look like flat "AI placeholder" shapes if a client just wings the scene spec. The server bakes quality in structurally — the recommended flow for any non-trivial scene is:

1. riv_design_tokens → use only the returned palette/gradients/durations/easings (never invent raw hex or ad-hoc timings)
2. riv_create with motion presets instead of hand-authored keyframes wherever one fits
3. riv_critique → look at the frames, score the 6-axis checklist, fix anything below 4, re-run (at least twice)

The same workflow plus hand-authoring craft rules (bezier curves, easing semantics, rigging) is exposed as the rive-design-guidelines MCP prompt. It also carries numeric recipes (spacing/timing tokens, composition & layering rules, anti-patterns to avoid) across 6 dedicated sections. For clients without MCP prompts support, it ships as a portable skill file at skills/rive-design-guidelines/SKILL.md.

Quick start

Claude Code plugin (recommended) — one install gets the MCP server, the design-guidelines skill, and the rive-designer agent:

/plugin marketplace add ODU33104/rive-mcp
/plugin install rive-mcp@rive-tools

Or install from npm:

npm install -g rive-mcp-server

# Register with Claude Code (user scope = available in every project)
claude mcp add --scope user rive -- rive-mcp

Or run from source:

git clone https://github.com/ODU33104/rive-mcp.git
cd rive-mcp
npm install
npm run build
claude mcp add --scope user rive -- node /absolute/path/to/rive-mcp/dist/index.js

A Chromium-based browser is auto-detected in this order (usually nothing to install):

1. RIVE_MCP_CHROME env var (path to Chrome/Edge executable)
2. Playwright browser cache
3. Installed Chrome → Edge

Requires Node.js 20+.

The Studio: human ⇄ AI collaboration

riv_studio opens a local web page where a human can inspect, directly edit, and request changes to whatever the AI built (first-run guide included, UI in English/Japanese):

1. Let the AI build — "create a bouncing-ball riv and open it with riv_studio"
2. Touch it — click/drag objects on the canvas, tweak numbers & colors in the inspector (applies live)
3. Ask the AI — type bigger changes into Instructions for AI, then say "check the studio notes" in chat
4. When the AI edits the file, the browser hot-reloads instantly

Works without a scene JSON too: any .riv can be edited property-by-property through the hierarchy + inspector.

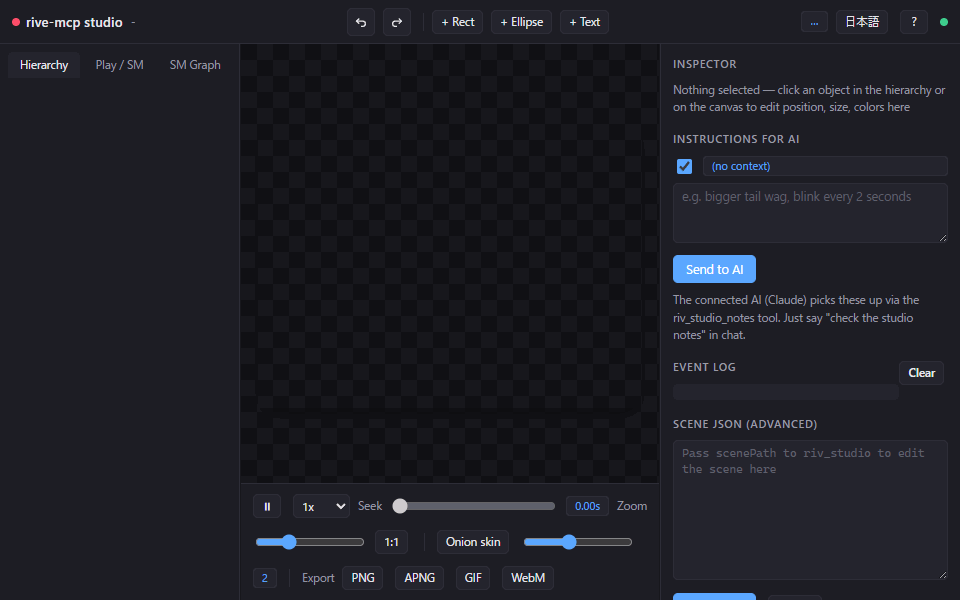

Feature tour

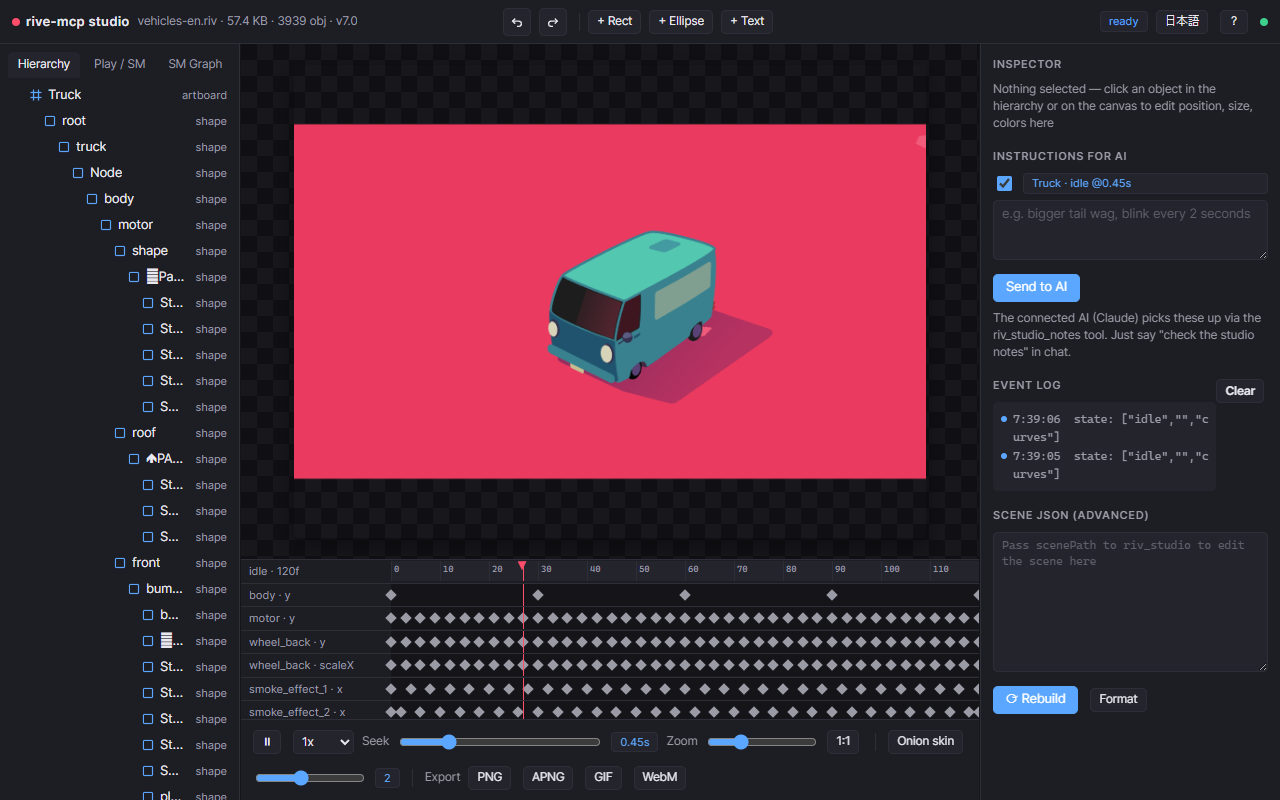

Timeline / dope sheet — per-track keyframes with seek, zoom and playback-speed control.

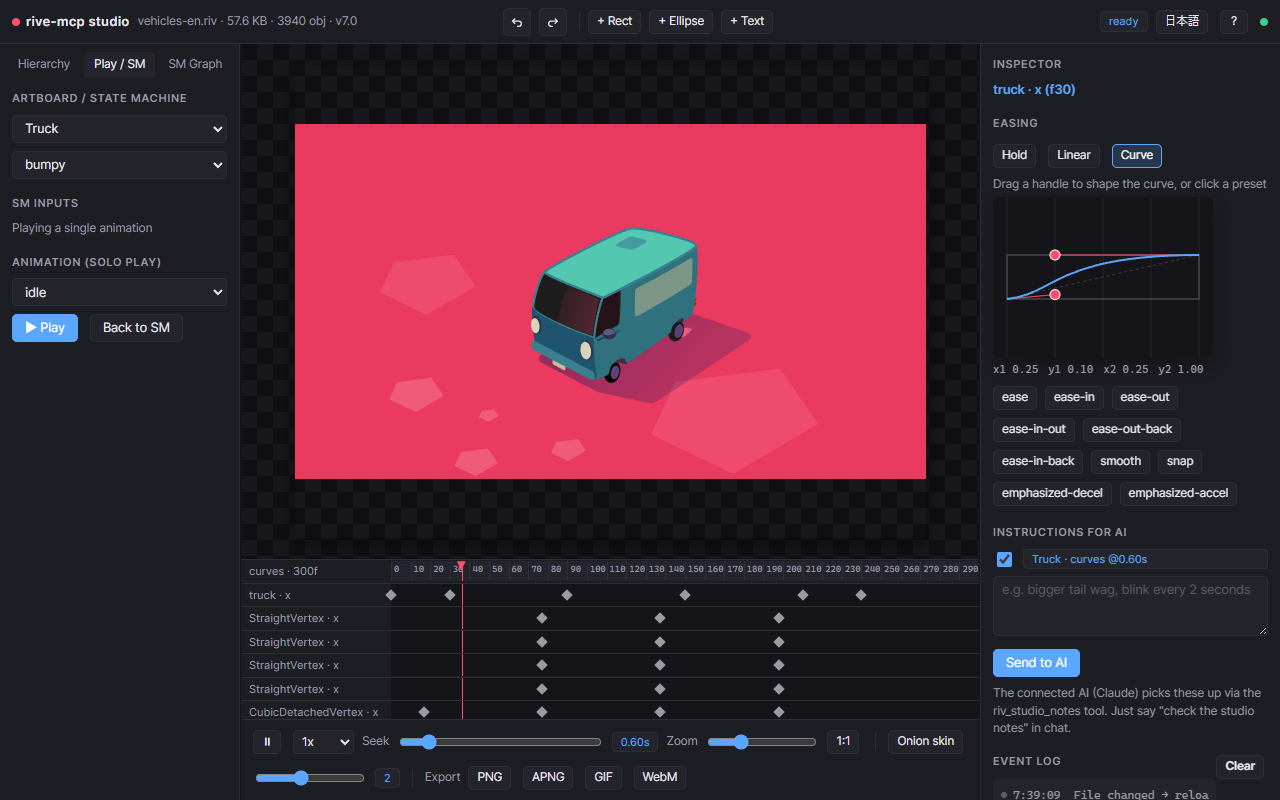

Bezier curve editor — pick a keyframe span, drag the control points, or apply one of 10 easing presets. Switch any span between hold / linear / cubic.

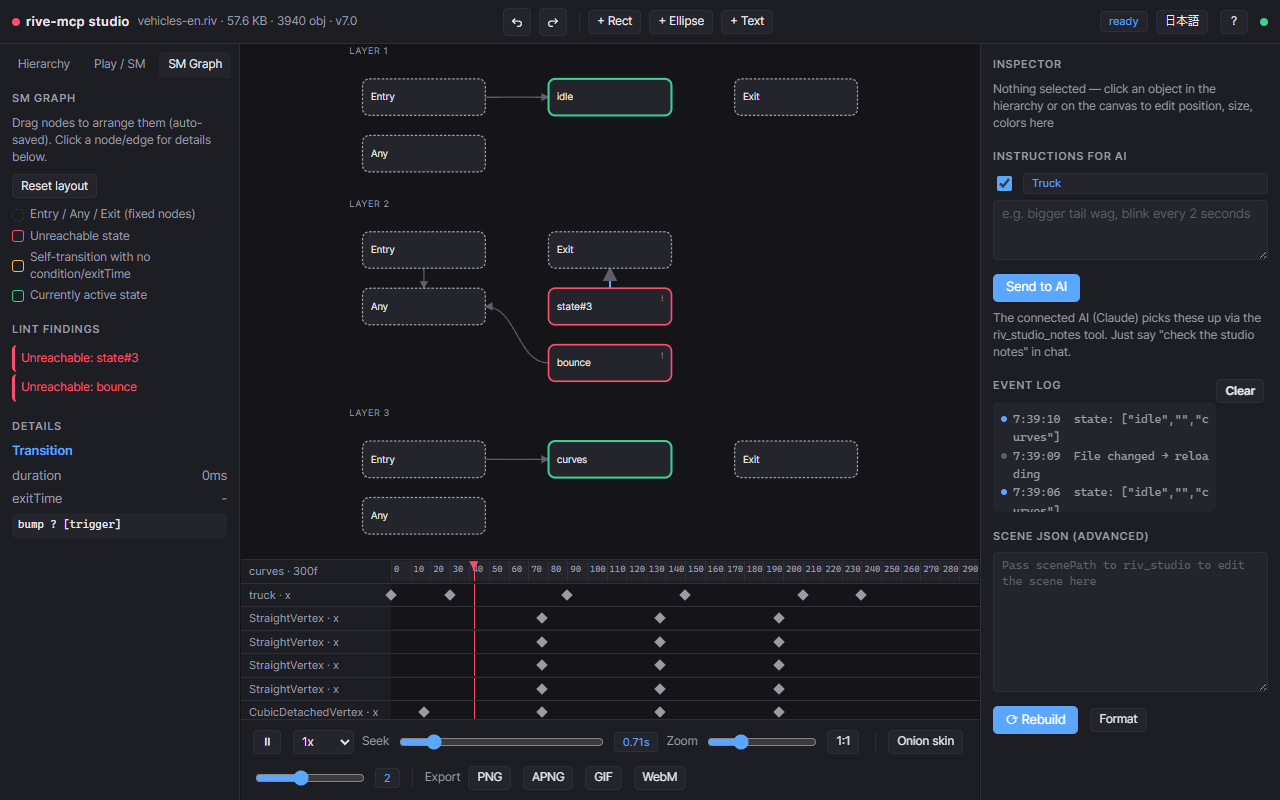

State machine graph view — layers, states and transitions as a node graph; click a transition to see its duration / exitTime / conditions. Lint-integrated: unreachable states are red, unconditional self-transitions yellow, and the active state glows during playback.

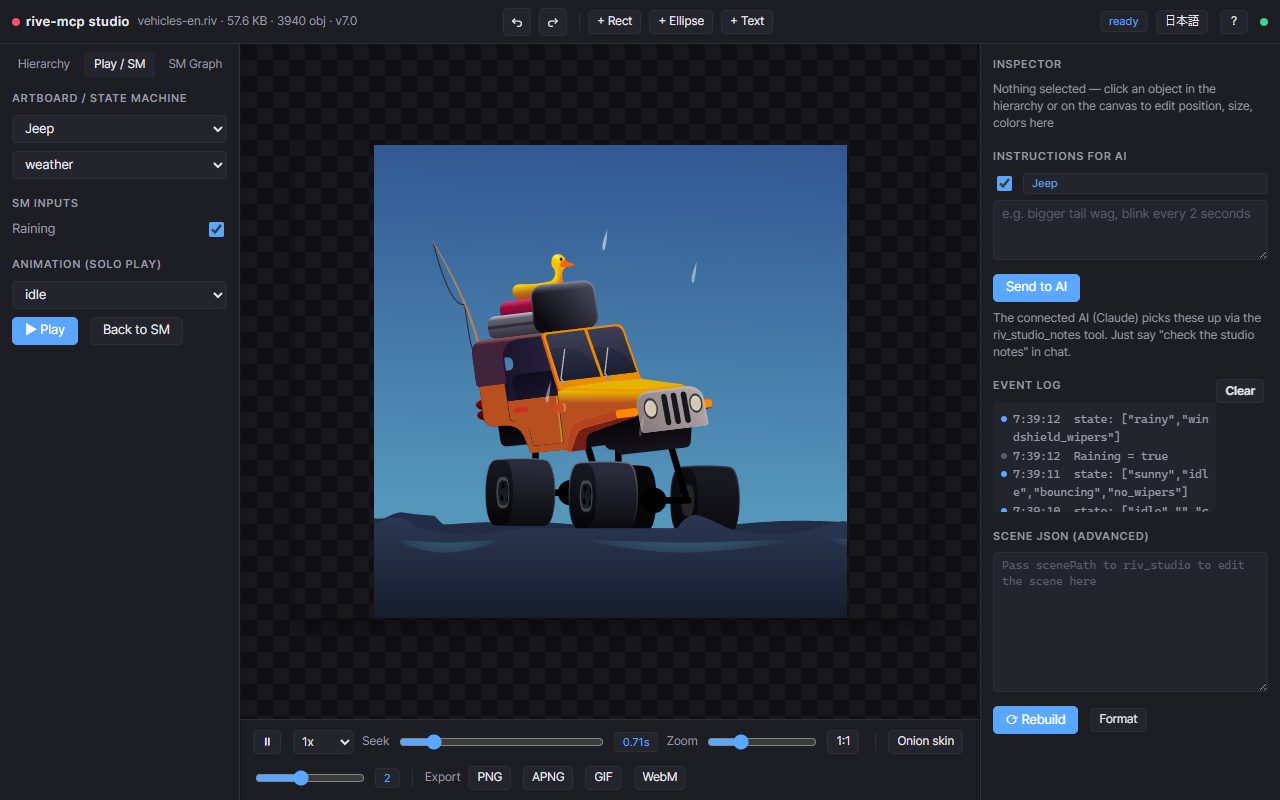

State machine playground — flip bool inputs and fire triggers from the browser to watch transitions happen.

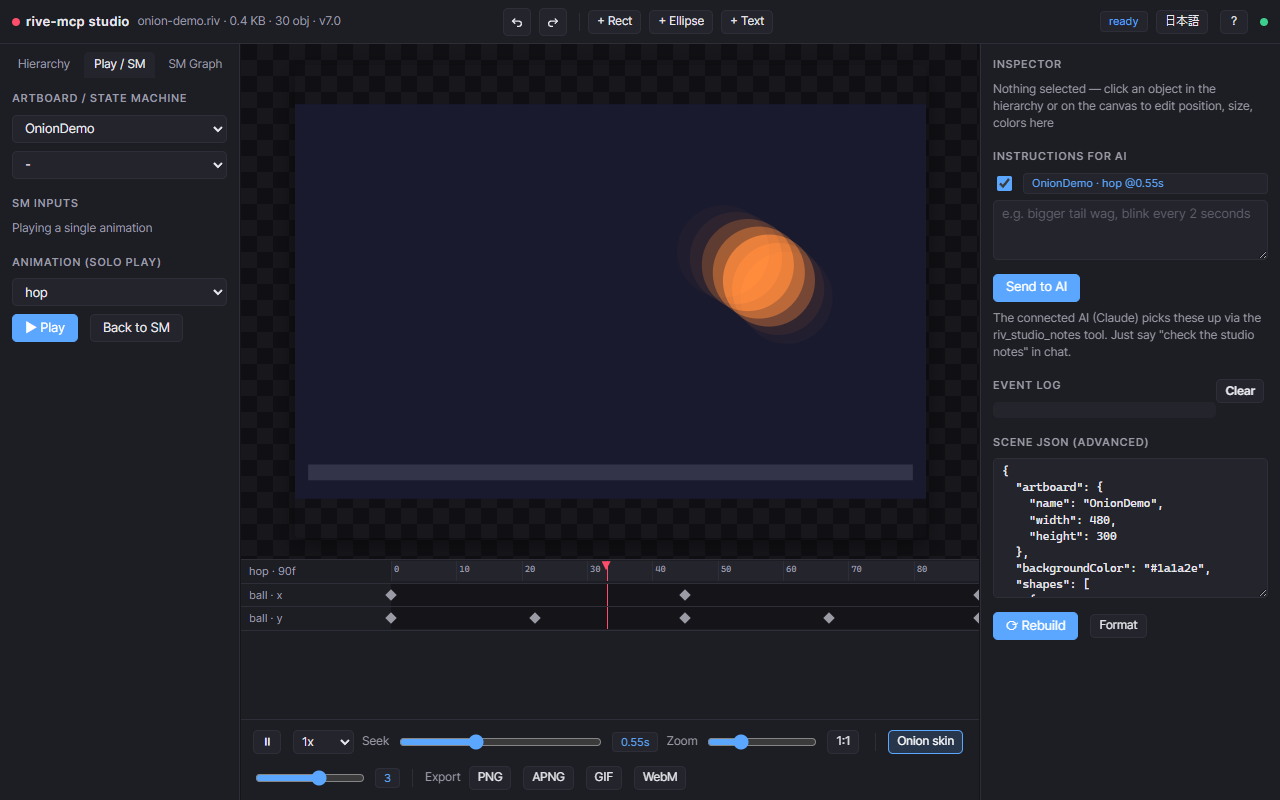

Onion skinning — ghost the surrounding 0–5 frames with distance-based opacity to check motion arcs at a glance.

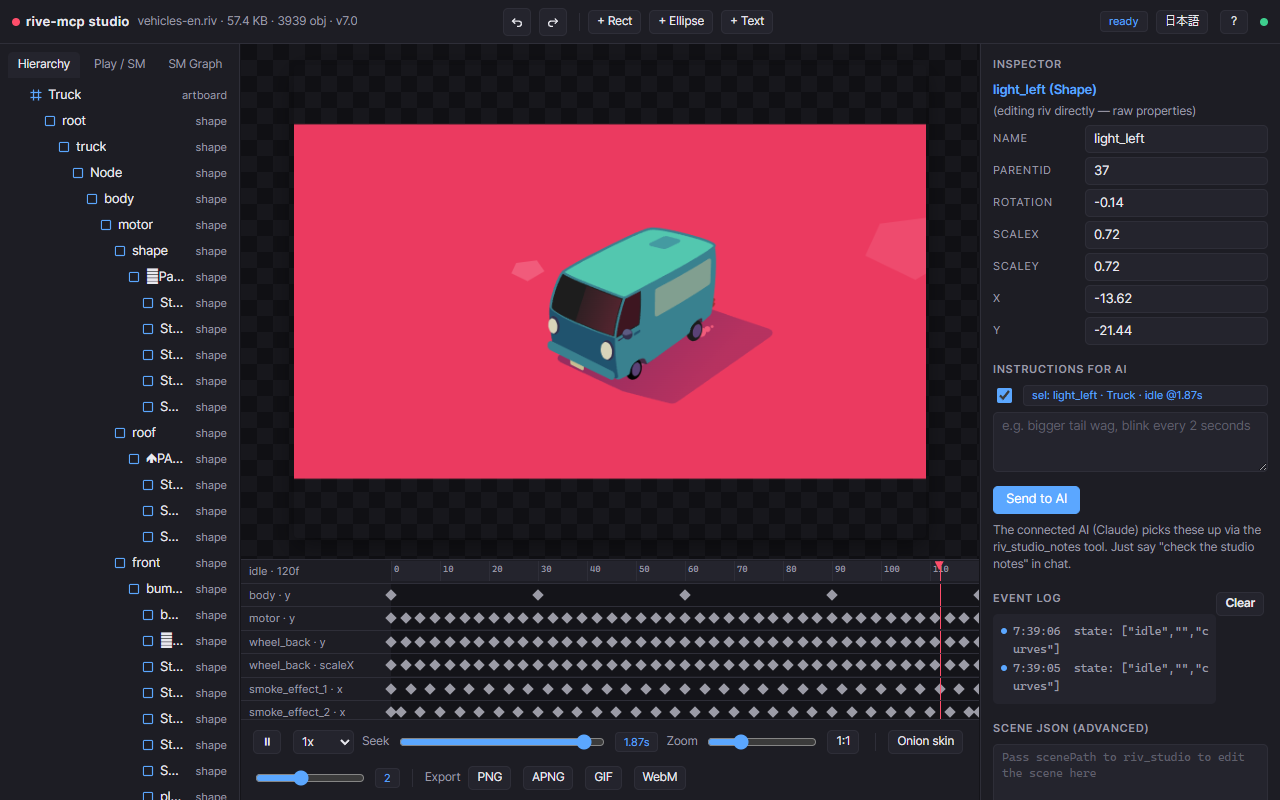

Direct editing — select in the hierarchy or on the canvas, then edit position / rotation / scale / colors / text in the inspector with undo/redo.

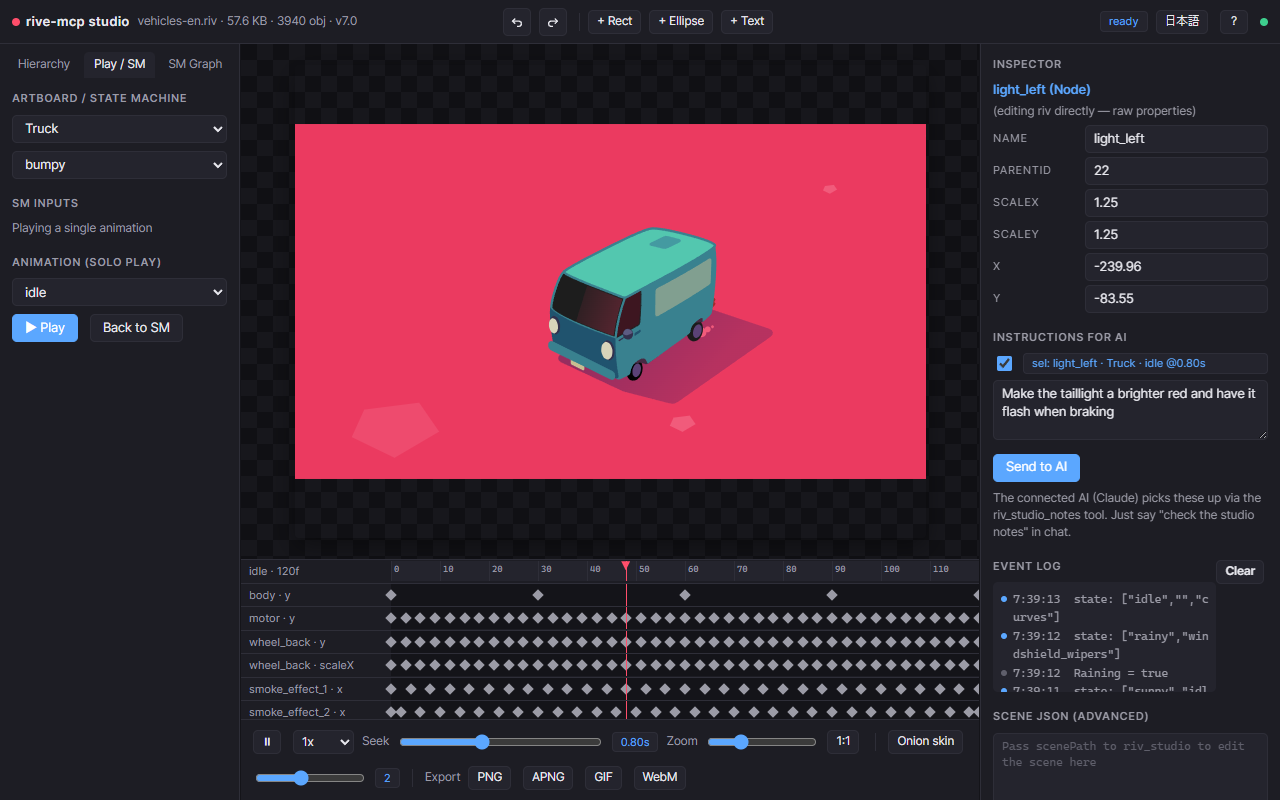

Instructions for AI — type a change request and it ships with your current selection, artboard, animation and playhead time auto-attached; the AI picks it up via riv_studio_notes.

One-click export

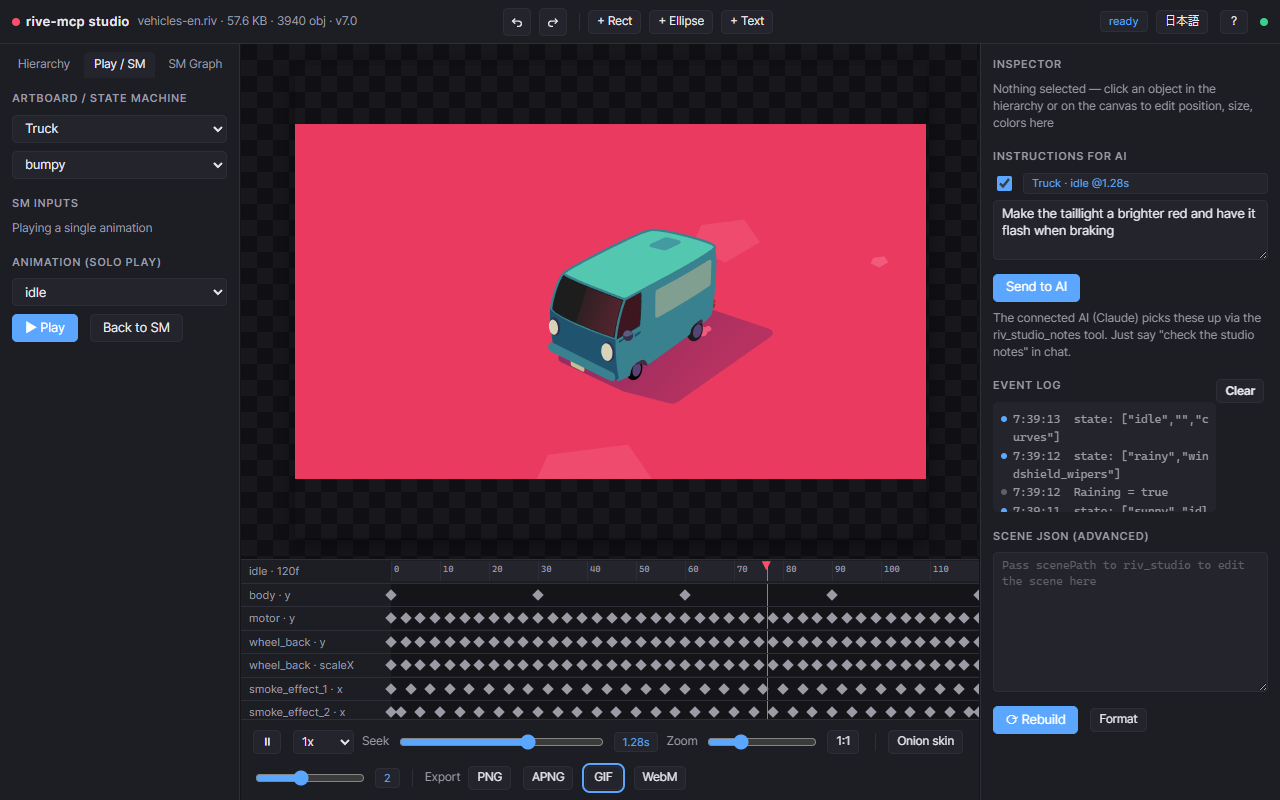

Click PNG / APNG / GIF / WebM in the Studio toolbar to render the current animation on the spot — no MCP round-trip needed for a quick preview export.

Character animation

Turn a single character PNG into a naturally moving .riv:

• riv_slice_image cuts out ears/tail/etc. by polygon, riv_rig_character assembles the whole rig in one call: pivot groups, a seamless 2-bone head mesh for tilting, vector eyelid blink, idle/happy animations and a happy trigger
• Or compose manually with riv_create: image embedding, grid meshes with per-vertex keyframes, bone chains with distance-weighted skinning, IK constraints

Example prompts

• "List the riv files in samples/ and inspect vehicles.riv"
• "Render the curves animation as a GIF"
• "Create a riv of falling snow over a night sky and open it in the studio"
• "Rig characters/cat.png — ears and tail should move, and it should look happy on click"
• "Check the studio notes" (after typing feedback into the Studio UI)
• "Write the React integration code for this file"

Development

npm run build      # vendor runtime assets + tsc
npm run test:e2e   # spawns the real server, exercises all 28 tools over JSON-RPC

docs/riv-format.md documents the reverse-engineered knowledge of the .riv binary format used by the writer (typeKeys/propertyKeys resolved from the official rive-runtime type definitions vendored in vendor/rive-defs/defs.json).

Limitations

• Text-run enumeration is not exposed by the runtime API (access by name works)
• GIF output has no transparency (composited on a background color)
• The Canvas2D preview renderer can show mesh seams that don't exist in the file (WebGL/Skia render clean)
• fill.feather/stroke.feather (vector blur) writes correctly to the .riv but isn't rendered by this server's Canvas2D preview pipeline — only a GPU Rive Renderer supports it
• Luau scripting and the Layout engine are not generated (runtime spec still moving)

License

Free to use (personal & commercial) — but not open source. This is source-available freeware:

• ✅ Use the software freely; the .riv files and code it generates are yours without restriction
• ❌ No modification, no redistribution, no derivative works
• ❌ No reverse engineering; no AI-assisted analysis, extraction or reproduction of the code (including use as training data)

See LICENSE for the exact terms. Bundled third-party components: Inter font (OFL 1.1), Rive runtime & type definitions (MIT, © Rive, Inc.).

rive-mcp is an unofficial tool and is not affiliated with or endorsed by Rive, Inc.
