Fraud Investigator Assistant Agent

About the solution

The Fraud Investigator Assistant demonstrates how customers can revolutionize their fraud investigation process using AWS Bedrock, MCP (Model Context Protocol) servers, and Strands expert agents. Fraud investigations can be an arduous, time-consuming endeavor. Each step can involve various compliance and security policies requiring specialized skills in different domains. Building an AI expert network can accelerate this work and allow customers to run investigations faster. This innovative approach dramatically reduces investigation timelines by combining a knowledge base of policy information with custom MCP servers for private data and open-source MCPs for public information-gathering.

Assistance capabilities:

• Orchestrator Agent - Decides which expert(s) should be used when processing a request and which policy needs to be enforced.
• Transactional Expert - Analyzes merchant transactions & authorization data.
• Merchant Indicators Expert - Retrieves and analyzes statistical aggregated data on merchants.
• Online Search Expert - Performs merchant verification and reviews online presence.
• Policies Knowledge Base - Supports investigation scaling and accurate execution of company policies particular use cases.
• Intelligent Insights - Provided through conversational AI.
• Comprehensive Toolset - For integrating external data sources via MCP protocol.

Table of Contents

1. Architecture & Data Flow
2. Screenshots
3. Tool Versions
4. Prerequisites
5. Installation
6. User Interface
7. Database Schema
8. Testing
9. Destroy
10. Clean Up Cache
11. License
12. Package Dependencies

Key Features

• Amazon Bedrock Agent with multiple action groups
• Strands Agents for domain expert agents: merchant portfolio agent, merchant aggregated data agent, merchant transaction agent, online assistant agent
• MCP Servers Integration for internal data access and external web search
• PostgreSQL Database with merchant and transaction data
• Streamlit UI for interactive testing
• Terraform Infrastructure for AWS deployment
• Comprehensive Testing with functional unit tests

Repository structure

app/                        # Application-level logic and data
build-script/               # Build scripts
data/                       # Mocked example data
iac/                        # All Terraform and application layer code
    bootstrap/              # Deploy bootstrapped infrastructure
    roots/                  # Main Terraform and application code
        app/
    templates/              # Terraform components and modules
images/                     # Architecture and other images for the
test/                       # Folder with different test scripts to check functionality
ui/                         # Interact with agent via Streamlit UI
init.sh                     # Initialize environment variables
LICENSE                     # License file to use this project artifacts
Makefile                    # Scripts to deploy, destroy, and interact with IAC
README.md                   # This document which includes repository details and instructions
set-env-vars.sh             # Export environment variables set during init.sh

Architecture and Data Flow

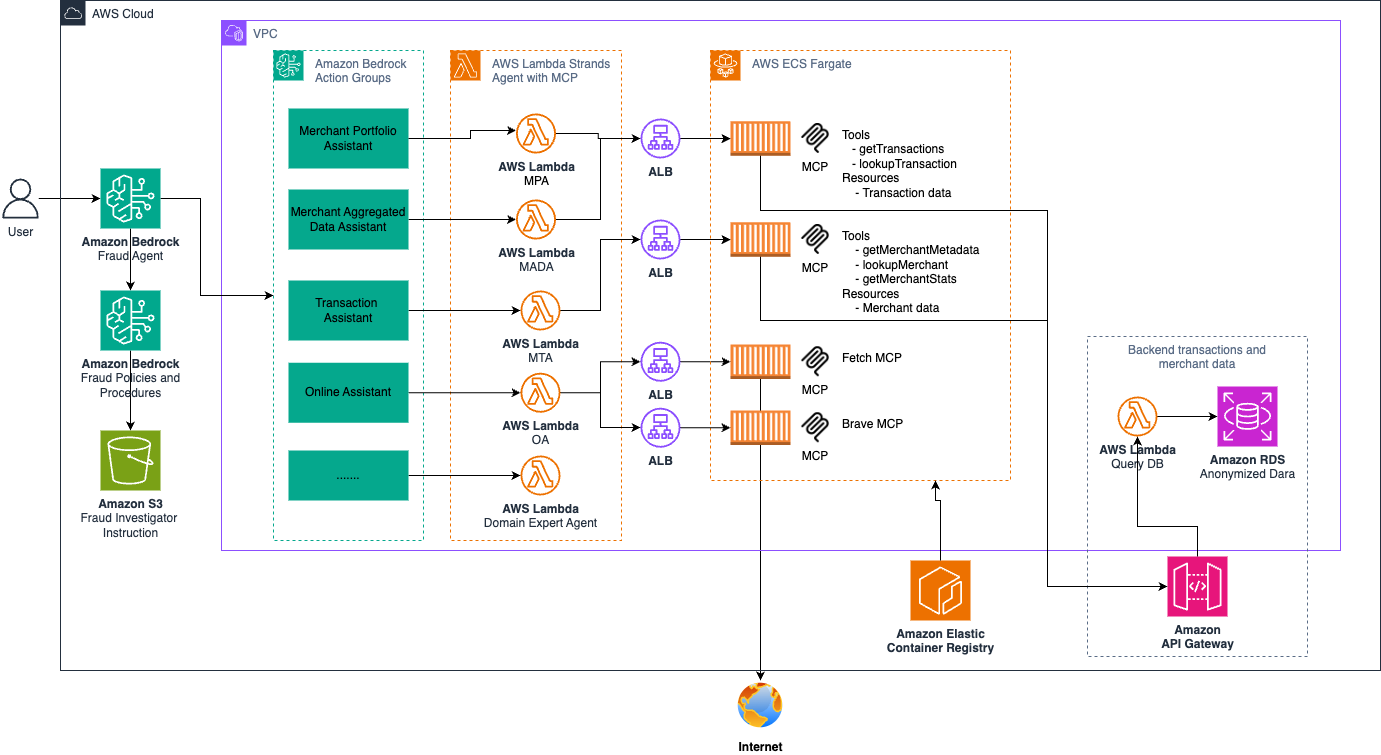

Architecture

Data Flow

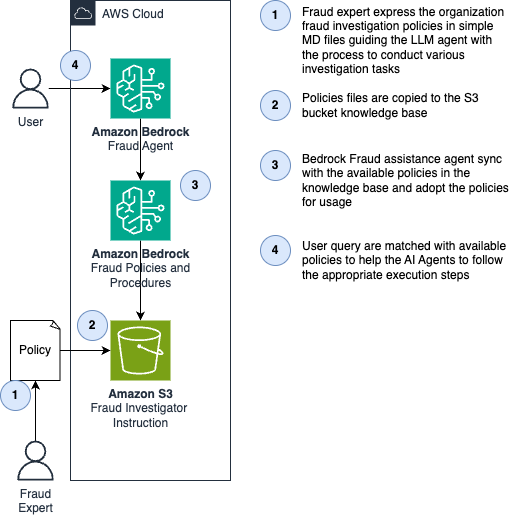

Fraud expert ingest policies to knowledge base

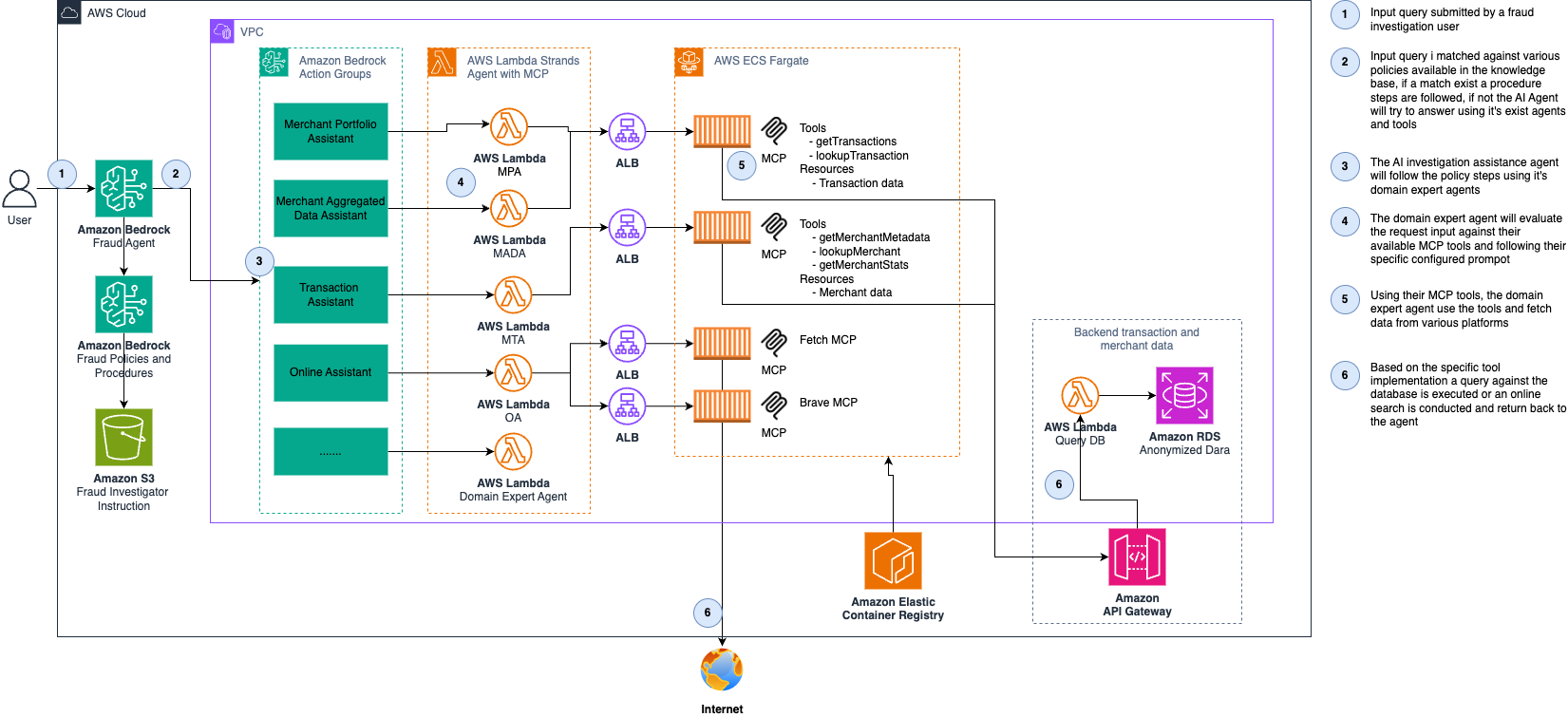

Fraud AI assistance process user query

System Components

1. Frontend Layer

   • Streamlit UI for agent interaction

2. Agent Layer

   • Amazon Bedrock Agent with multiple action groups:
     • Merchant Action Group
     • Transaction Action Group
     • Online/Internet Action Group

3. MCP Server Layer

   • Merchant MCP: Database queries for merchant data
   • Transaction MCP: Transaction analysis and filtering
   • Fetch Search MCP: Fetch the contents from URL and can be used for website verification
   • Brave MCP: Alternative search capabilities

4. Data Layer

   • REST API endpoints: Data access through API
   • PostgreSQL (Aurora): Primary database with merchant/transaction data
   • OpenSearch: Knowledge base for policies and procedures
   • S3: Document storage

5. Infrastructure

   • VPC: Secure network isolation
   • Lambda Functions: Serverless compute
   • API Gateway: REST API management
   • Secrets Manager: Secure credential storage

Screenshots

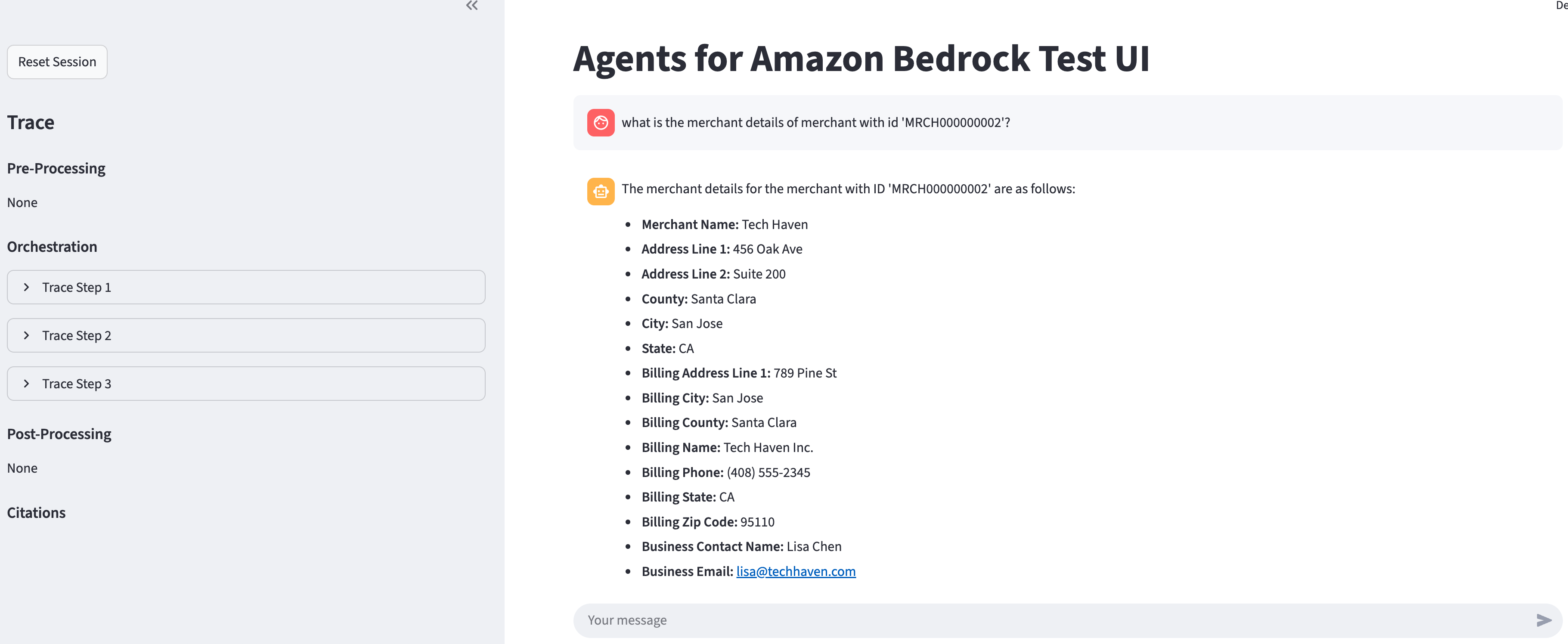

Fetching merchant metadata information

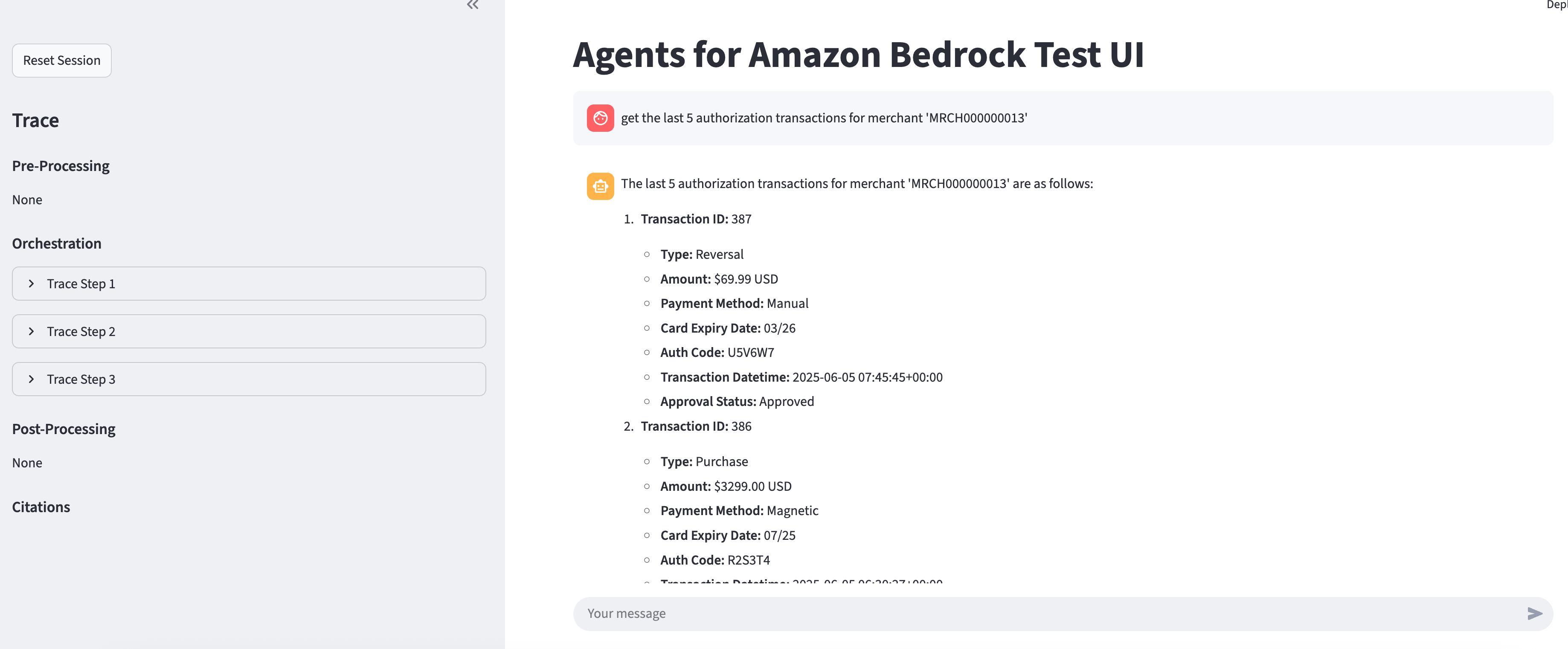

Get last authorization transactions for a merchant

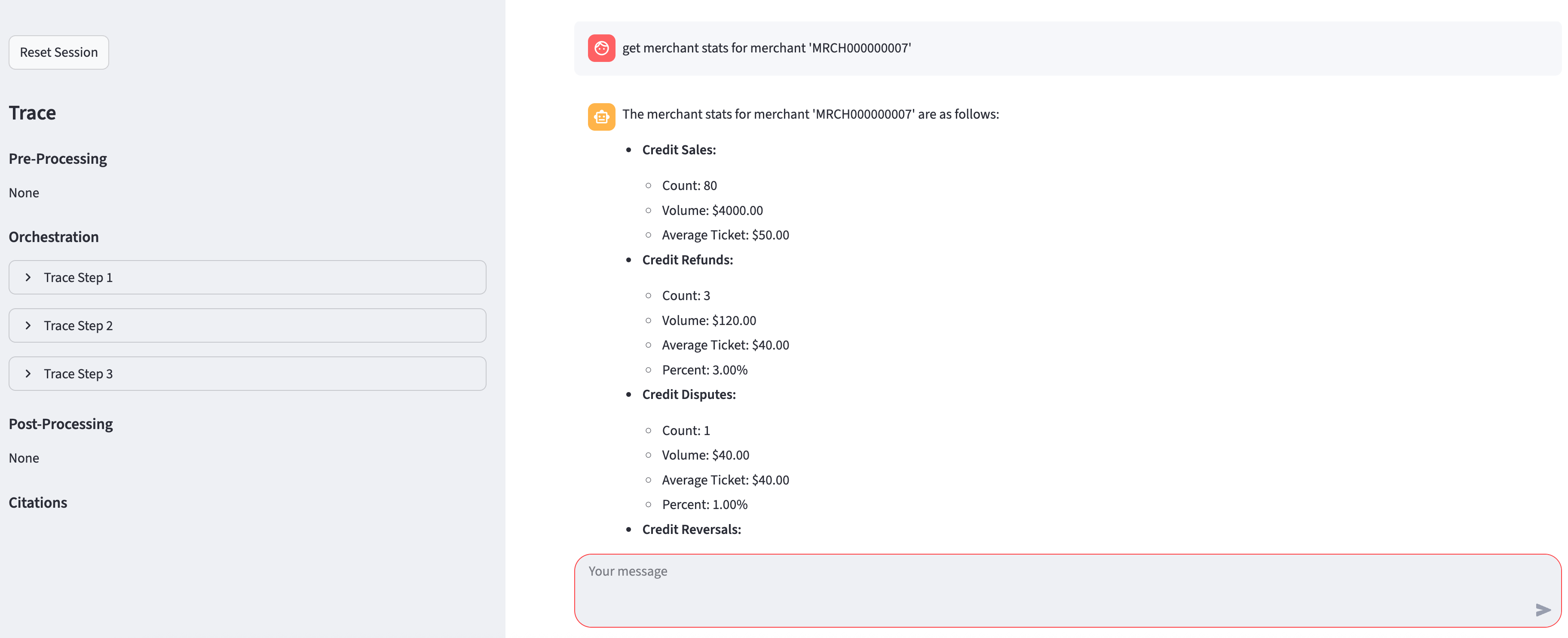

Get merchant stats data (default day, month/year also supported)

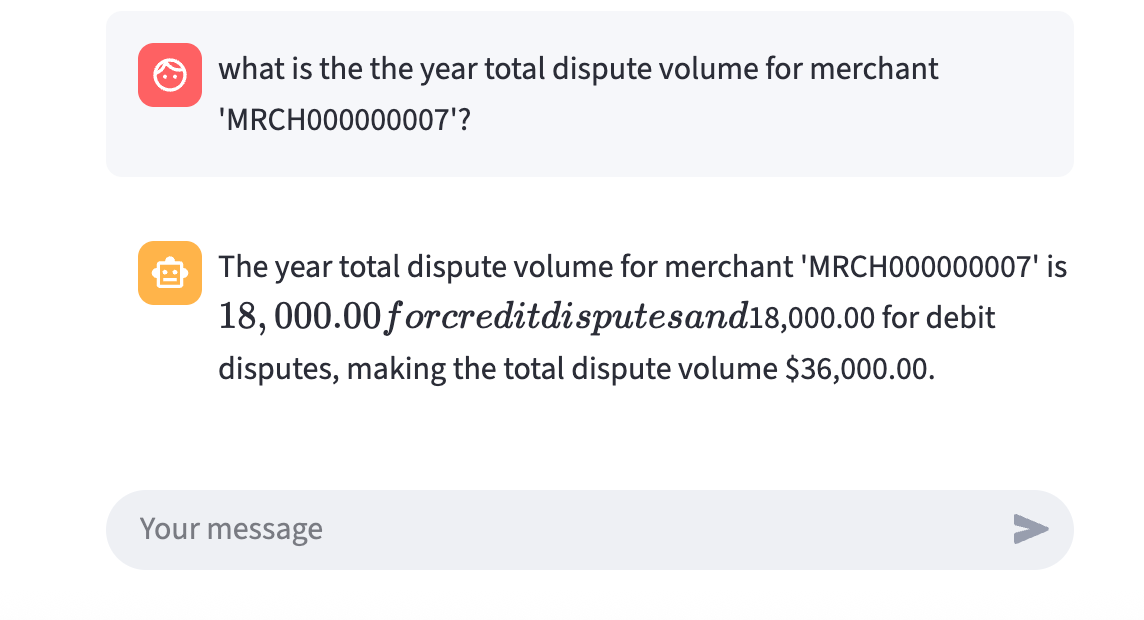

Fetch last year merchant total dispute volume

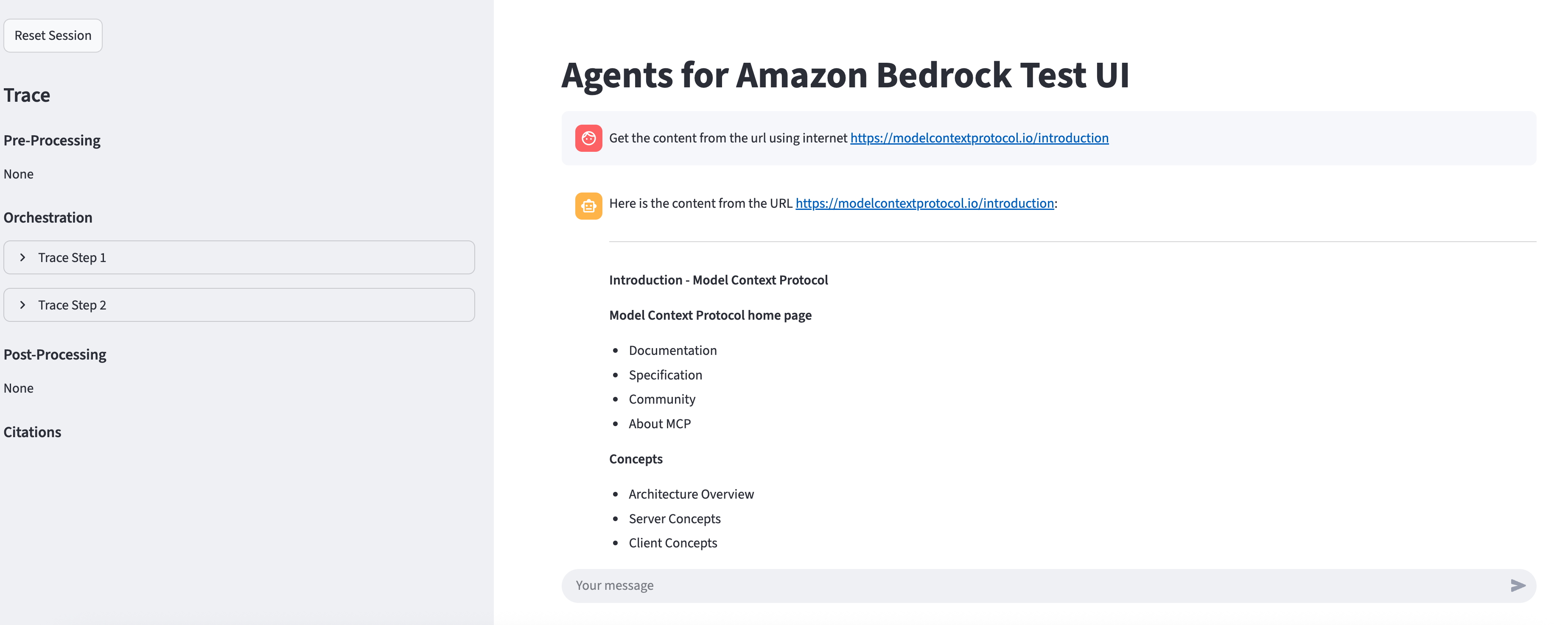

Fetch realtime online website content

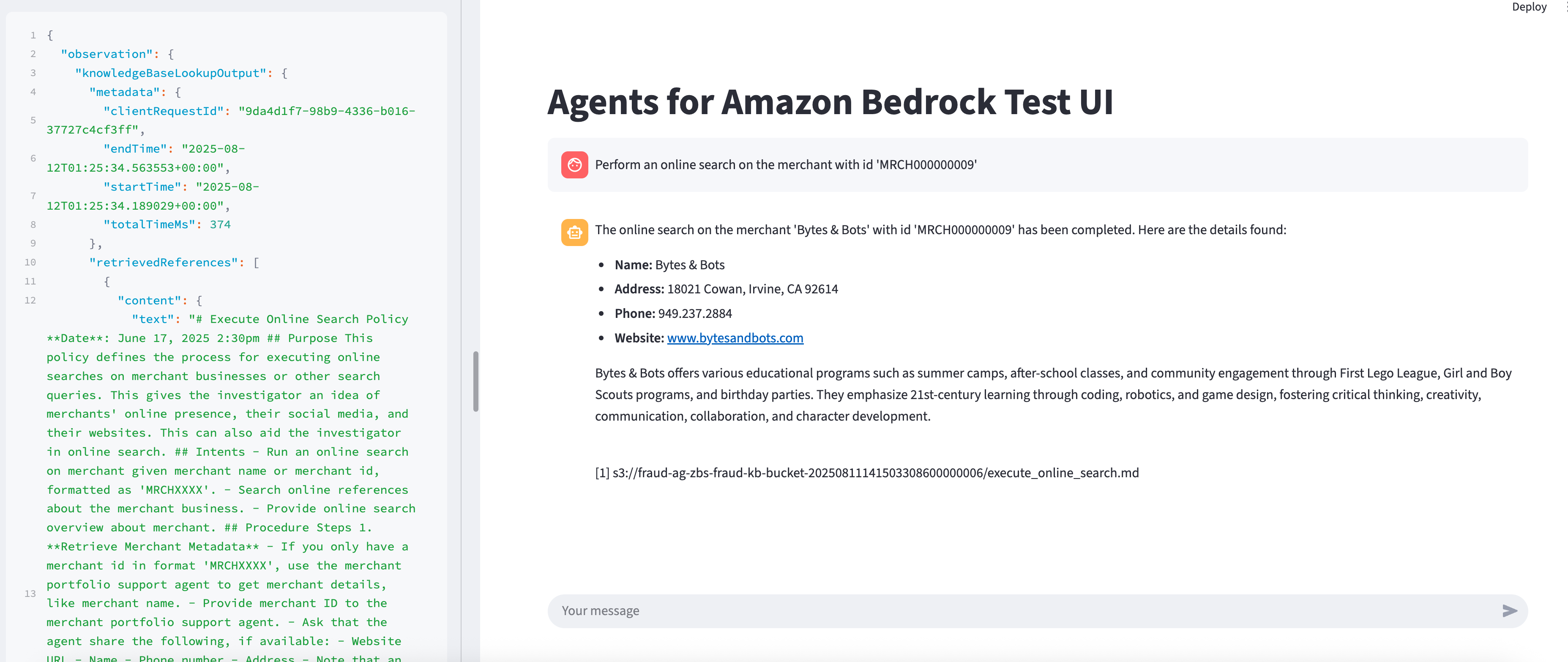

Perform online search according to knowledge base policy

Tool Versions

To build and deploy this system the following tools are required:

• Python: Version 3.12 or higher
• AWS CLI: Version 2.0 or higher, configured with appropriate credentials
• Terraform: Version >5.0
• Make: GNU Make 4.0 or higher
• Bash: Version 4.0 or higher
• Streamlit: For UI testing
• Strands Agents: Version >=0.1.0
• Podman: Version 5.5.2 or higher

Prerequisites

Python Dependencies

The project requires the following Python packages:

• pandas==2.2
• GCC >= 8.4

AWS Credentials

Use the secret access key of a user or export the temporary credentials before continuing.

Accept End User License Agreements (EULAs)

For all Bedrock models you plan on using, accept their EULA in the region of deployment:

• Claude 3.5 Sonnet
• Claude 3 Haiku
• Titan Text models

Database Setup

The system uses PostgreSQL with the following schema:

• merchant_details: Merchant master data
• authorizations: Transaction authorization records
• settlements: Settlement transaction data
• merchant_stats: Aggregated merchant statistics

Installation

Build Layers and Lambdas

Give access to the script that creates lambda and layers packages by running

chmod +x ./build-script/build-lambdas.sh
chmod +x ./build-script/build-layers.sh

Then build them by running the following, respectively

make build-lambdas
make build-layers

Verify zip archive is created under /app/layers/***/layer.zip
Verify zip archive is created under /app/lambdas/packages/***.zip

Deploy Infrastructure

After an application environment is configured and you have built the layers and lambdas zips, you can deploy the application with those configurations by executing the targets from Makefile in the order listed by the deploy-all target.

make deploy-all

Common Deployment Issues

Terraform has some issues with Amazon Bedrock. Here are some common issues to resolve.

Deploy Database

In an S3 bucket we have a DDL file and DML file that create database tables and add data to them, respectively. In order to run these files we have a lambda function with the name xxx-xxx-deploy-db. Search for this function in the AWS Lambda console page and run a test event that has any content in it, triggering the function.

⚠️ Warning: This function drops and recreates all tables. Backup sensitive data first.

Manual Knowledge Base Sync

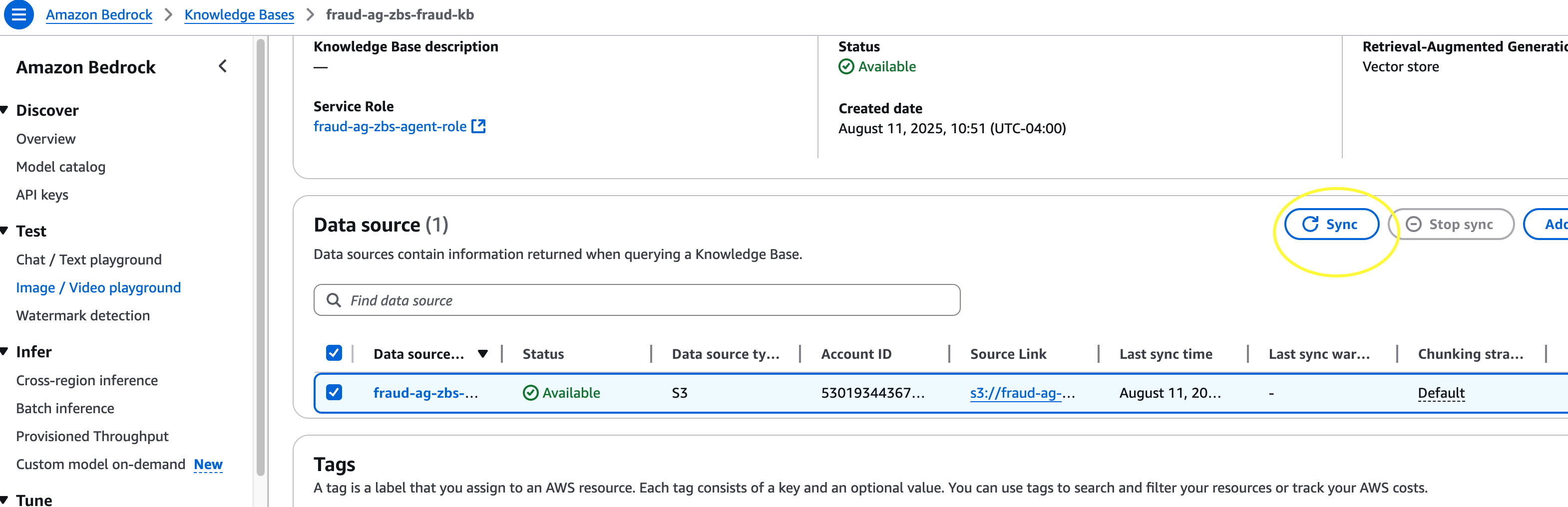

Navigate to Amazon Bedrock console page. Click Knowledge Bases on the left side bar. Click on the created knowledge base, select the data source, click sync. This adds the data to the knowledge base.

Build and Deploy Everything

To avoid having to run all of the build and deploy commands you can use the single command below to do everything.

make everything

⚠️ Warning: This does not include database deployment, which only needs to be done once at the initialization, or knowledge base sync which should be done whenever you update the policies.

Database Schema

Tables Structure

Review detailed schema at: /data/schema/ddl.sql

1. merchant_details: Core merchant information

   • Merchant numbers, business details, contact info
   • Address, phone, email information
   • Account status and limits

2. authorizations: Transaction authorization data

   • Account numbers, amounts, currencies
   • Transaction types, payment methods
   • Approval status and decline reasons

3. settlements: Settlement transaction records

   • Processed amounts, transaction IDs
   • Card information and countries
   • Transaction modes and statuses

4. merchant_stats: Aggregated statistics

   • Sales volumes and counts
   • Refund and dispute metrics
   • Entry method distributions

Testing

MCP Client Tests

chmod +x ./test/fut/mcp-client-tests.sh
make test-mcp-client

Agent Tests

make test-agent

Test Cases

The system includes comprehensive test cases for:

• Transaction detail queries
• Merchant searches by various criteria
• Data filtering and aggregation
• Web search functionality

Using knowledge base policies

Before testing knowledge policy scenario make sure to upload a policy to the S3 bucket - see example /data/knowledge-base/ After uploading the policies you must sync the agent with the knowledge base change:

MCP Server Configuration

The system includes multiple MCP servers:

• merchant_mcp: Handles merchant data queries
• transaction_mcp: Processes transaction analysis
• websearch_mcp: Performs web searches
• brave_mcp: Alternative search provider
• fetch_mcp: HTTP request capabilities

User Interface

To work with the Streamlit UI, you need a .env with agent and alias ID.

Automatically Create .env

To get the IDs from the terraform state and automatically create a .env file, run:

make prep-ui-env

If you switch cloud environments you need to run this otherwise it will try to contact the agent related to the previously used cloud environment.

Manually Create .env

First make a copy of .env.TEMPLATE and rename it to .env. Then, add the agent id and alias id. I have an example below.

# The ID of the agent.
BEDROCK_AGENT_ID=XXXXXXXXX
# The ID of the agent alias. The default `TSTALIASID` will be used if it is not set.
BEDROCK_AGENT_ALIAS_ID=XXXXXXXXXX

Run UI

Now, you are ready to run the UI. The script is below and the UI will be accessible with http://localhost:8080/.

make run-ui

Destroy

To easily destroy the resources in your environment use the destroy-all command.

make destroy-all

Clean Up Cache

This will help users clean up Terraform cache from local machine. Please run the following make command to clean up local cache.

make clean-tf-cache

Notes for Path to Production

Logging

1. Include ELB access logging for application load balancers in front of the MCP servers on ECS. Documentation
2. Be mindful of logging sensitive data. The current solution has thorough logging for testing and debugging purposes and because all data is non-sensitive. As you incorporate real data and promote the solution to different environments, be sure to change the logging. Documentation

Encryption and Secrets Management

1. Add certificates to ALB and make sure to use HTTPS traffic. Documentation
2. Encrypt CloudWatch log data. Documentation

Networking

1. Restrict network access of OpenSearch collection to Bedrock service and VPC endpoint where you have CICD pipeline. Documentation
2. Update VPC to use proxy for outbound traffic instead of NAT gateway.

Identity and Access Management

1. Further restrict IAM permissions. For example, the Bedrock Agent role currently allows for all models and inference profiles to allow for testing and expirmentation but you will want to limit that to your region.

Guardrails

1. The current agentic solution does not have guardrails implemented. Documentation

License

This library is licensed under the MIT-0 License.

Dependencies

This solution uses several 3rd party packages / libraries, all of which are open sourced, MIT License or Ap :

1. Fetch MCP - https://pypi.org/project/mcp-server-fetch/
2. Brave Search - https://www.npmjs.com/package/@modelcontextprotocol/server-brave-search
3. MCP Proxy - https://github.com/sparfenyuk/mcp-proxy
4. Fast MCP - https://github.com/jlowin/fastmcp
