SPARDA

🇫🇷 Français — L'IA écrit. SPARDA prouve. Un gate déterministe et hors-ligne qui détecte quand une modif d'IA retire une garde, expose une route ou casse un invariant — sans clé API, directement dans la boucle d'édition de l'agent. Pour tout comprendre en 10 minutes (douleur, architecture, vision) : SPARDA-EXPLIQUE.md.

AI writes. SPARDA proves.

L'IA écrit. SPARDA prouve.

The trust layer for AI-written backends. SPARDA compiles your backend — routes, database queries, state mutations, guards, side-effects — into one deterministic behavior graph, then statically proves what can and can't break before you ship: no unguarded mutation, no broken invariant, no non-atomic aggregate write.

100% local · deterministic · zero API key · no cloud account. It fails loudly on a real risk, and when it can only see part of your app it says PROVEN (PARTIAL) — never a false green.

60-second proof

From your Express, FastAPI, Flask, Next.js, NestJS or Medusa app — nothing to configure:

npx sparda-mcp apocalypse   # prove the tree is safe to deploy — exit 1 on any real risk
npx sparda-mcp prove        # the whole verdict: proof + coverage + shareable seal
npx sparda-mcp badge        # a README badge: proven · coverage% · routes

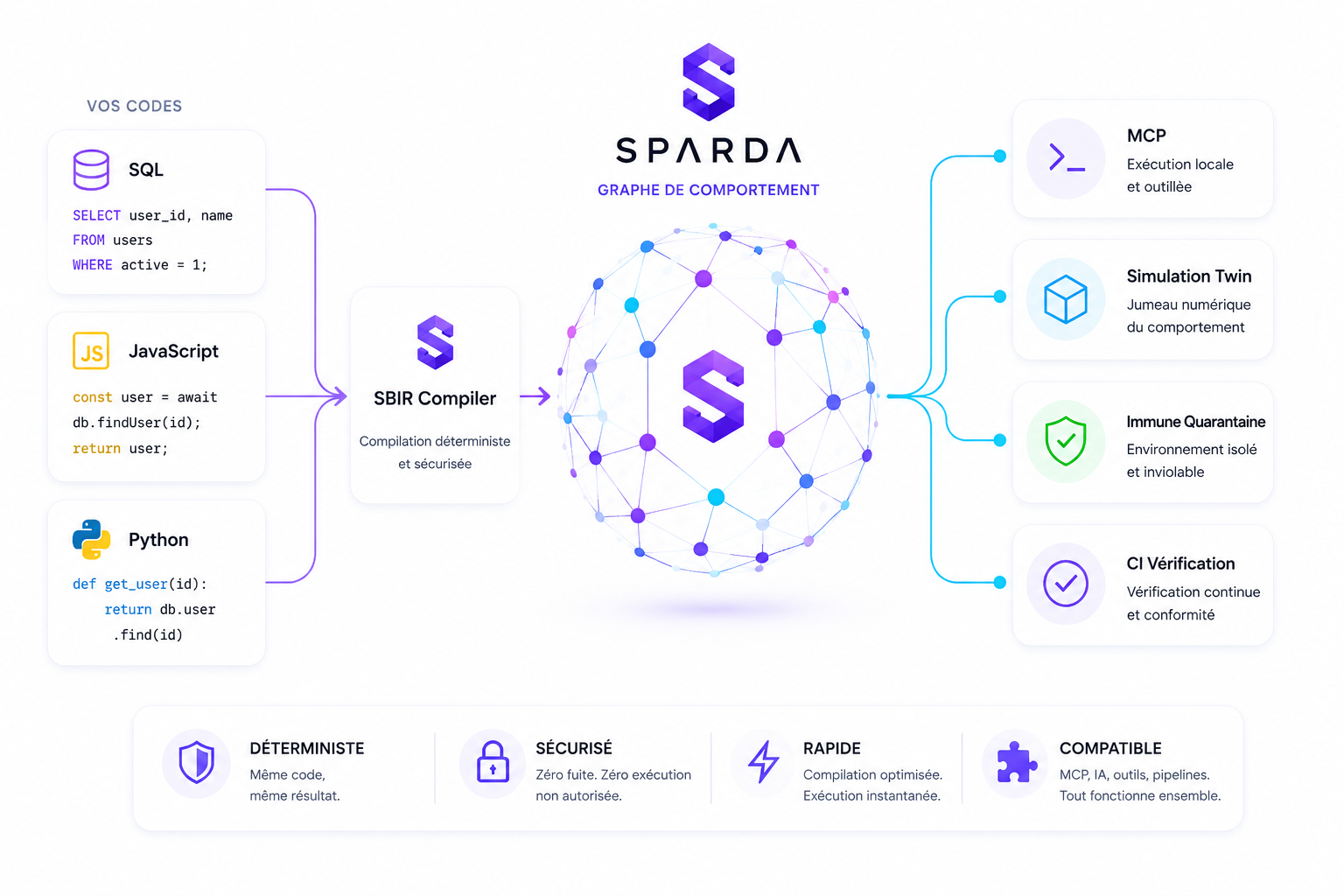

Under the hood it compiles your backend into one language-agnostic graph — the Unified Behavior Graph (UBG), serialized as .sparda/ubg.json under the SBIR specification (SPARDA Behavior IR) — and every command is a pass over that graph.

[!IMPORTANT]
The Route-Compilation Proof — reproduce it yourself. SPARDA compiles real open-source monsters to their behavior graph with zero crashes, each in ≈1–2 seconds: Next.js Dub (579 routes), NestJS Immich (281), MedusaJS (477). It natively resolves deep Dependency Injection, external controllers, and Next.js handlers. Try it on your own codebase in 60 seconds:

hljs language-bash

Copy

npx sparda-mcp prove

Honesty first: compiling a route is a parser result; proving it safe is a separate per-repo verdict — and most real apps come back NOT_PROVEN, which is the true state, not a failure.

What the graph unlocks — 100% local, deterministic, zero runtime dependencies, zero API key:

The prover is the product. The MCP server is one output of the graph, not the point — SPARDA compiles the whole system's behavior, then proves, replays, heals, and (optionally) serves it.

Nomenclature: SBIR is the specification (the format, like "JSON"); UBG is the compiled graph itself (the artifact, ubg.json). The MCP server is one output of the graph, not the product.

Optional: expose the graph to AI clients (MCP runtime)

Beyond proving, SPARDA can turn your running app into a live MCP server — the graph, executable, with write-safety and an immune layer. This is optional and separate from the prover above.

1. Scan + inject — run once, from your app's directory:

   hljs language-bash

   Copy

   npx sparda-mcp init


   SPARDA parses your routes (AST), generates a marked /mcp router, injects it into your app (with a backup), and writes sparda.json. Every step is reversible.

2. Start your app, then start the bridge:

   hljs language-bash

   Copy

   npx sparda-mcp dev


3. Connect your client. init prints a ready-to-paste block for claude_desktop_config.json, pre-filled with your app's name and path:

   hljs language-json

   Copy

   {
     "mcpServers": {
       "your-app": {
         "command": "npx",
         "args": ["sparda-mcp", "dev"],
         "cwd": "/absolute/path/to/your-app"
       }
     }
   }


   Claude Code connects to the same bridge. That's it — your running app is now a set of MCP tools your AI can call.

Try the Standalone Demo

To see SPARDA in action instantly without modifying your codebase:

npx sparda-mcp demo

This runs the entire MCP lifecycle (detect → parse → generate → inject → remove) on a bundled demo app in a temporary folder, in about 10 seconds. For the compiler itself, run npx sparda-mcp ubg then apocalypse on any Express/FastAPI app.

Black Box Report

SPARDA is designed as a local organism. To see what it remembers and how much compute it has recycled:

npx sparda-mcp report

This prints a terminal dashboard aggregating your exposed tools, write opt-ins, proof journal decisions, and crystallized composite tools.

To write a self-contained, offline HTML dashboard at .sparda/report.html, append the --html flag:

npx sparda-mcp report --html

To output raw JSON for integration:

npx sparda-mcp report --json

Deployment Proof: Apocalypse

SPARDA's Behavior Graph is a formal model of your system. Instead of waiting for runtime failures or relying on static analysis vibes, you can statically prove the safety of your backend before any deployment:

npx sparda-mcp apocalypse

This command reads the compiled .sparda/ubg.json (with zero source code parsing at runtime) and discharges five static correctness obligations:

• Unguarded Mutation (Critical): Flags any mutation path that does not cross a security guard.
• Non-Atomic Aggregate Write (High): Flags when an API writes to multiple tables of the same Consistency Domain (Aggregate) outside a single transaction scope.
• Unvalidated Constrained Write (Medium): Flags writes into columns with declared invariants (CHECK, NOT NULL, UNIQUE — parsed from your .sql DDL or schema.prisma, Prisma enums included) without prior validation (Zod/Pydantic).
• Irreversible Observable Effect (High): Flags out-of-process actions (like Stripe charges) that happen alongside state writes without a structural compensation path (like a catch-refund).
• Aggregate Member Bypass (Info): Flags mutating a member table directly without routing through the aggregate root.

To save your current graph as a safe baseline:

npx sparda-mcp apocalypse --save-baseline

Subsequent runs will diff the candidate graph against this baseline to detect regression vectors:

• Deletion of any security guard (Critical).
• Deletion of a database SQL invariant (High).
• API blast radius expansion (Medium).

If any Critical or High finding is found, apocalypse exits with a non-zero code to block your CI pipeline.

One step in your workflow — findings land in the GitHub Security tab (SARIF):

- uses: zyx77550/sparda@main
  with:
    sarif: 'true'

Time Travel: Timeless

Every production request is deterministic between its effects — the compiler knows exactly where the nondeterminism lives (db, http, clock, random, uuid: the effect nodes of the graph). Timeless records only those points (a few KB per request) and replays the request byte-identically against your current code, with the database, webhooks and clock virtualized from the recording:

npx sparda-mcp timeless                # list recorded flights
npx sparda-mcp timeless replay <id>    # re-fly it — byte-identical or loud divergence
npx sparda-mcp timeless export <id>    # the production bug is now a vitest test

Recording is two lines in your app (ESM), with deterministic sampling and GDPR redaction built in:

import { getFlightBox } from 'sparda-mcp/src/flight/box.js';
const box = getFlightBox();
box.arm();
app.use(box.middleware({ sample: 100 })); // 1 request in 100; passwords/tokens redacted by default
const db = box.wrapClient(pgPool); // your query client, tapped

The closed loop nobody else has: production bug → recorded flight → failing test → AI writes the fix → apocalypse proves the fix breaks no guard, invariant or transaction → deploy. Replay is per-request (concurrent-race capture is out of scope for v1 — stated, not hidden).

Self-Healing, Proven: sparda heal

The loop above, as one gesture — and the machine judges the fix, whoever wrote it:

npx sparda-mcp heal <flightId>                       # diagnose + write the fix brief
# ...apply the fix (a human, or --agent "your-ai-cli")...
npx sparda-mcp heal <flightId> --check --expect '{"status":404}'

The brief is built from the graph itself — it hands the fixer the handler's file:line, the capabilities the fix must not grow, and the guards it must not remove. Then the gate — the actual product — proves the fix on three axes at once:

1. Behavior — lenient replay of the recorded flight (same deterministic inputs) now produces the expected response, not the recorded bug. The fix may reformulate a query (the tap is relabeled, allowed); it may not change the effect order or kinds.
2. Compiler laws — verify still passes: the graph is still sound and deterministic.
3. No regression — apocalypse diff against the frozen pre-fix graph: zero new critical/high findings, no guard removed, no blast radius grown.

✓ HEALED & PROVEN — same recorded inputs, correct output, zero law broken, zero protection lost. Ship it.

The gate is honest in both directions: an unfixed bug, or a "fix" that silently drops a guard, keeps it closed (exit 1). This is the difference between an AI that writes plausible code and a system that proves the code is correct — the trust layer the agent era is missing.

Any Backend On Earth: OpenAPI Lowering

SPARDA parses Express, FastAPI, Flask and Next.js natively — and every other stack through the format the industry already agreed on. Go, Java, Rails, Laravel, .NET: if it has an OpenAPI spec, it compiles.

npx sparda-mcp ubg --openapi openapi.json

Security schemes become gating guard nodes, response schemas become typed returns, declared request bodies count as validated input. Pair the spec with your .sql or schema.prisma files and the full state layer — invariants, aggregates, state machines — fills in from declared truth. (JSON specs in v1; we refuse to half-parse YAML with zero dependencies.)

The Mirror VM: delete the framework, the app still answers

The graph is not a diagram — it executes:

npx sparda-mcp mirror

MIRROR — the graph is serving. 3 entrypoint(s) on http://127.0.0.1:4477
  GET    /orders/{orderId}  → {amount, id, status}
  POST   /orders  🔒 bearerAuth  → {amount, id, status}

No Express. No FastAPI. No source code — just ubg.json answering HTTP: guards actually deny (401), responses render the compiled return schemas, unknown paths 404 with the full route table. Front-end teams develop against backends that aren't deployed yet — or aren't written yet (point mirror at an OpenAPI spec). Every response carries x-sparda-mirror: true; the mirror serves declared behavior, it never invents business values.

To undo everything: npx sparda-mcp remove restores your code byte-for-byte.

The promise — every word is backed by a test in CI

1. Three minutes, one command. AST scan, router generation, reversible injection — no config.
2. Try it for free, leave for free. npx sparda-mcp remove restores your code byte-for-byte (tested on JS, TS, Python, even Windows CRLF files). No trace, no lock-in.
3. The AI cannot write until you say so. Every POST/PUT/DELETE is disabled by default; you enable per tool, and your choice survives every re-run.
4. Your app defends itself. A route failing 3 times in a row is quarantined — the AI can't hammer your broken production. Latency anomalies are flagged. Zero LLM needed.
5. Nothing leaves your machine. No telemetry to us, no cloud, local key auth, 4 exact-pinned dependencies.
6. What it learns is never lost. Diagnoses, descriptions, settings — versioned with your git, surviving every re-init.

What we don't promise: the honest limits in docs/SECURITY.md.

How it works

1. npx sparda-mcp init parses your codebase (AST), extracts every route, and injects a tiny marked router (/mcp) into your app — fully reversible with npx sparda-mcp remove.
2. Tool calls run inside your live app process — warm DB pools, real auth chain, real data. SPARDA adds no infrastructure: compute comes from your host process, intelligence from your AI client's own model (MCP sampling), storage from sparda.json + git.
3. Write tools (POST/PUT/DELETE) are disabled by default. You opt in per tool in sparda.json — your choices survive re-runs.
4. Suspicious docstrings are sanitized before they ever reach the AI (prompt-injection defense).
5. npx sparda-mcp doctor --app audits your codebase for drift: it detects stale tools (IA seeing ghosts), unsynced routes, schema drift via fingerprints, and zombie configurations. High severity issues trigger a non-zero exit code for your CI pipeline.
6. npx sparda-mcp seed export/import lets you package and share your app's "genome" (semantic memory, workflows, antibodies) securely, transferring immune memory between environments or across similar stacks with zero data leak.
7. npx sparda-mcp twin starts a safe, simulated mock server of your backend on the original port. It serves GET calls from learned exemplars (observed response shapes & mock data) and returns simulated 202 writes without ever touching your real database or production APIs. Learn exemplars by running npx sparda-mcp twin --learn.
8. npx sparda-mcp grammar maps the graph of valid sequences of tool calls (observed circuits and candidate hypotheses) to prevent LLM hallucination of routes.
9. npx sparda-mcp evolve mutates candidate chains and tests them against the twin in-memory, promoting successful chains to evolved workflow suggestions.

What SPARDA gives your AI

Operate, not just read

Every route becomes a tool that runs against your live process — real auth, real data, warm connections. One call to sparda_get_context hands the AI the whole living picture: enabled tools, suggested workflows, runtime telemetry, quarantine state, and immune memory — so every session resumes where the last one stopped.

Prove the edit before you commit — the one check an LLM can't do to itself

The AI just edited a route. Did it quietly drop a guard? It calls sparda_prove and finds out now, not in a CI run later. The tool recompiles the app to its behavior graph, discharges the same static obligations as sparda apocalypse, and returns a deterministic verdict — the exact word the CLI and badge emit, so it can never over-claim (a low-coverage clean app reads SURFACE, never a bare PROVEN). Save a baseline once (sparda apocalypse --save-baseline) and every later sparda_prove flags any finding with regression: true — the guard your edit removed, the route it dropped, the blast radius it grew. That's "AI writes. SPARDA proves." inside the edit loop. Clients that list MCP prompts also get the prove-my-edit workflow.

Write-safety: the AI can't write until you say so

• Writes (POST/PUT/DELETE) ship disabled. Enable them per tool in sparda.json; your choice survives every re-init.
• An enabled write is never executed on the first call. SPARDA returns an awaiting_confirmation envelope — a single-use token plus a preview of the action — and commits only after an explicit confirm step.
• When your client supports MCP elicitation, that confirmation prompt appears in the AI's own UI.
• Proof-after-write: every successful write is followed by a read-back of the same resource, so the AI — and you — see the real effect, not a hopeful guess.

Your app defends itself — zero LLM on the hot path

• Quarantine. A tool that returns 3 consecutive 5xx is quarantined: further calls get a 503 with a reason and a retry delay instead of hammering your broken route. After a cooldown it half-opens for a single probe.
• Latency & anomaly flags. The router learns each route's baseline and flags deviations locally, in a few lines of math.
• Adaptive diagnosis, only on surprise. A genuinely new failure wakes your AI client's own model to diagnose it once; the diagnosis is cached as an "antibody" in sparda.json, so the same failure later costs zero tokens. Cloning your code doesn't clone its immune memory.

A free intelligence layer, zero API key

On first connection your AI client's own model (via MCP sampling) rewrites raw routes into business-language tool descriptions and proposes multi-step workflows — cached in sparda.json and exposed as MCP prompts. Nothing to configure, nothing to pay.

It gets cheaper the more you use it

• Response recycling. When a read keeps returning the same answer, SPARDA serves the next identical call straight from memory — without touching your host app. Reads only; writes always hit the host.
• A recycling gauge. GET /mcp/stats counts how many calls were answered from SPARDA's own knowledge vs. how many paid the host route. It reads 0% on day one and fills with usage — a measure, never a promise.

Tools nobody wrote — Labs, opt-in, default OFF

Turn it on with "labs": { "recordSequences": true } in sparda.json. SPARDA then notices when one tool's output feeds the next tool's input and records the circuit — structure only (tool names, argument names, counts), never your data. A read-only circuit seen enough times crystallizes into a composite tool, announced mid-session: one call runs the whole chain, auto-feeding each step from the previous step's real response. Write routes are never absorbed — their per-call confirmation always stands.

Living context & telemetry

GET /mcp/stats (per-tool calls/errors, tool "purity", quarantine state) and GET /mcp/events (errors, latency anomalies, cached diagnoses) expose exactly what your app is doing — surfaced to the AI as live notifications.

Built for AI clients: the bundled Skill

SPARDA ships with an Agent Skill (SKILL.md) that teaches any compatible AI client how to drive a SPARDA server to its full potential — call sparda_get_context first, exploit response recycling, honor quarantine, prefer crystallized circuits over re-walking a chain, and follow the two-phase write-confirm protocol. The live, per-project tool list always comes from sparda_get_context at runtime, so the guidance never goes stale.

Supported frameworks

• Next.js App Router (13/14/15) — file-based injection. SPARDA creates a catch-all route handler. It natively resolves wrapped handlers (export const POST = withAuth(h)) and deep effect chains.
• NestJS — AST-based router injection. Deeply resolves Multi-hop Dependency Injection (Controller → Service → Repository), inherited DI, and baseUrl/paths imports. Supports Prisma, TypeORM, and Kysely.
• Express 4/5 (JS/TS, ESM/CJS) — AST-based router injection. Deeply resolves external controllers, Mongoose schemas, and barrel re-exports. Uses dynamic tree-scanning to find non-standard entry points (bootstrap.ts, etc).
• MedusaJS — Native AST ingestion of complex e-commerce routing.
• Any Backend On Earth (Go, Java, Rails, Laravel) — Compiles flawlessly from OpenAPI 3.x specs.
• FastAPI (Python >= 3.9) — AST-based router injection.

Security posture (honest)

• 4 runtime dependencies, exact-pinned.
• Dynamic Local Key Resolution. The generated router contains no baked secrets. It resolves authorization keys at runtime from the SPARDA_LOCAL_KEY environment variable or the local gitignored .sparda/key file, and fails closed (503) when neither is found. For custom production or staging setups, you can override this behavior by exposing SPARDA_LOCAL_KEY in your environment.
• Local key on every router call; self-reference loop protection; 30s timeouts; 8 KB output truncation.
• AST-positioned injection with backup and post-injection re-parse; npx sparda-mcp remove leaves a clean git diff.
• Persistence is value-free: SPARDA records structure (tool names, field names, fingerprints), never your payloads.

Full threat model and known gaps: docs/SECURITY.md.

Documentation

• docs/ARCHITECTURE.md — how init, the injected router, and the bridge fit together, plus the sparda.json schema.
• docs/SECURITY.md — threat model, defenses, and honest known gaps.
• docs/TESTING.md — how the promises above are kept honest in CI.
• docs/ERRORS.md — the error knowledge base.

Beyond the open core

SPARDA is free, including in production (see License). Team-scale capabilities — fine-grained per-person access policies and a signed, tamper-evident audit log — are planned for a future paid tier. The open core stands on its own; nothing here is crippled to upsell you.

License

Business Source License 1.1 — free to use, including in production. You may not resell SPARDA or offer it as a competing commercial service. Each version converts to Apache 2.0 four years after its release.

By Residual Labs
