Agent-Based SRE: Automated Diagnosis and Mitigation in K8s

sre-agent is an autonomous multi-agent system designed to automate Incident Response in Kubernetes environments. By leveraging Large Language Models (LLMs) and a Divide & Conquer strategy, it significantly reduces the Mean Time to Resolution (MTTR) for complex microservice faults.

This system integrates with AIOpsLab for realistic fault injection and uses a custom Model Context Protocol (MCP) server to interface with observability tools (Prometheus, Jaeger, Kubernetes API) securely and efficiently.

📁 Repository Structure

SRE-agent/
├── sre-agent/          # 🧠 Main Multi-Agent System implementation (LangGraph)
├── MCP-server/         # 🔌 Custom Model Context Protocol server for observability tools
├── notebooks/          # 📓 Jupyter notebooks for analysis and development
├── Results/            # 📊 Experiment outputs, logs, and reports
├── archive/            # 📦 Archive of previous project iterations
└── assets/             # 🖼️ Diagrams and static assets

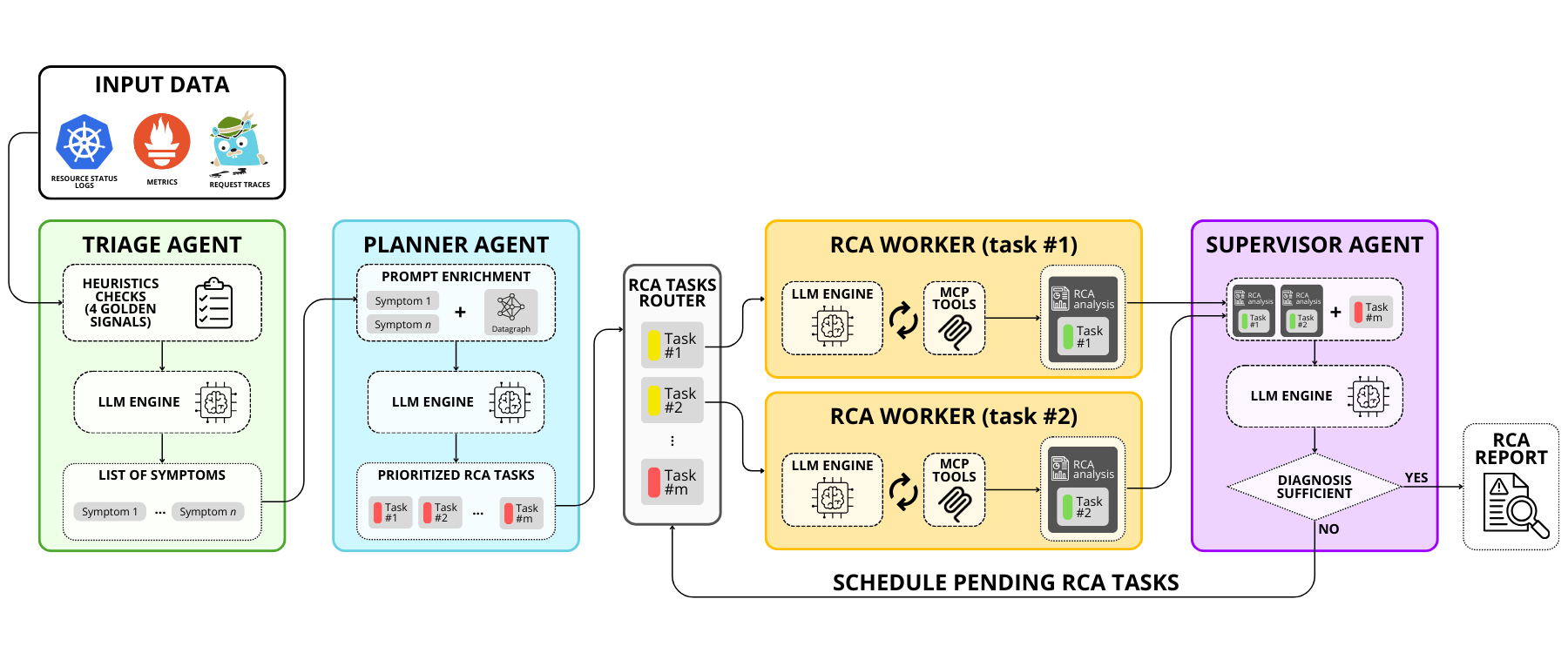

🤖 SRE Agent Architecture

The agent implements a parallel multi-agent workflow to diagnose faults efficiently:

Core Components

1. 🔍 Triage Agent (Hybrid)

   • Role: Detects symptoms explicitly.
   • Method: Combines deterministic heuristics (based on the Four Golden Signals: Latency, Errors, Saturation) with LLM reasoning. This hybrid approach grounds the diagnosis in hard evidence to minimize hallucinations.

2. 📋 Planner Agent (Topology-Aware)

   • Role: Strategies the investigation.
   • Method: Uses a Graph-Based Datagraph to understand cluster topology (dependencies, upstream services). It generates a deduplicated, prioritized list of RCA Tasks, assigning specific investigation goals and target resources.

3. 🔬 RCA Workers (Parallel Execution)

   • Role: Execute the investigation.
   • Method: Divide & Conquer. Multiple workers run in parallel, each handling a specific task. They use MCP tools (Logs, Traces, Metrics) to gather evidence and produce a diagnostic report. A deterministic RCA Router manages task dispatching.

4. 👔 Supervisor Agent

   • Role: Final Decision Maker.
   • Method: Aggregates worker reports to synthesize a final Root Cause Analysis. It can either finalize the diagnosis or trigger a feedback loop to schedule pending tasks if more evidence is needed.

Key Features

• Datagraph: A graph representation of the cluster topology (Infrastructure & Data dependencies) that guides the agent, preventing irrelevant resource exploration.
• Custom MCP Server: Standardizes tool interaction and performs "pre-digestion" of data (e.g., retrieving only relevant metrics or error logs) to optimize context window usage and reduce token costs.

🧪 Automated Evaluation Pipeline

The repository includes a robust pipeline for automated experimentation and benchmarking.

Framework

• Integration: Built on top of AIOpsLab to deploy testbeds (Hotel Reservation, Social Network) and inject realistic faults (Network delays, Pod failures, Misconfigurations).
• Batch Execution: automated_experiment.py orchestrates end-to-end batch runs: Cluster Setup → Fault Injection → Agent Execution → Evaluation → Cleanup.

Metrics

The system is evaluated on:

1. Detection Accuracy: Correct identification of an anomaly.
2. Localization Accuracy: Correct identification of the root cause resource (Service/Pod).
3. RCA Score: Semantic evaluation of the diagnosis using LLM-as-a-Judge (1-5 scale with rationale).

🛠️ Setup & Usage

Prerequisites

• Python 3.13+ & Poetry
• Docker & Kind (Kubernetes in Docker)
• Make (for AIOpsLab commands)
• OpenAI API Key (for GPT-5-mini)

Installation

# Clone the repository
git clone https://github.com/martinimarcello00/SRE-agent.git
cd SRE-agent

# Install dependencies
poetry install

# Configure environment
cp .env.example .env
# Edit .env and add your API keys:
# nano .env

Running the Agent

You can run the agent interactively via LangGraph Studio or as a script.

Option A: LangGraph Studio (Recommended for Dev)

cd sre-agent
poetry run langgraph dev

Option B: Python Script

# Run a specific experiment scenario
python sre-agent/sre-agent.py

Running Automated Experiments

To execute a batch of experiments defined in your configuration:

# Ensure your .env file is configured
# python automated_experiment.py

This script will sequentially provision the cluster, inject faults, run the agent, and save the results in Results/.
