Well-Architected IaC (Infrastructure as Code) Analyzer

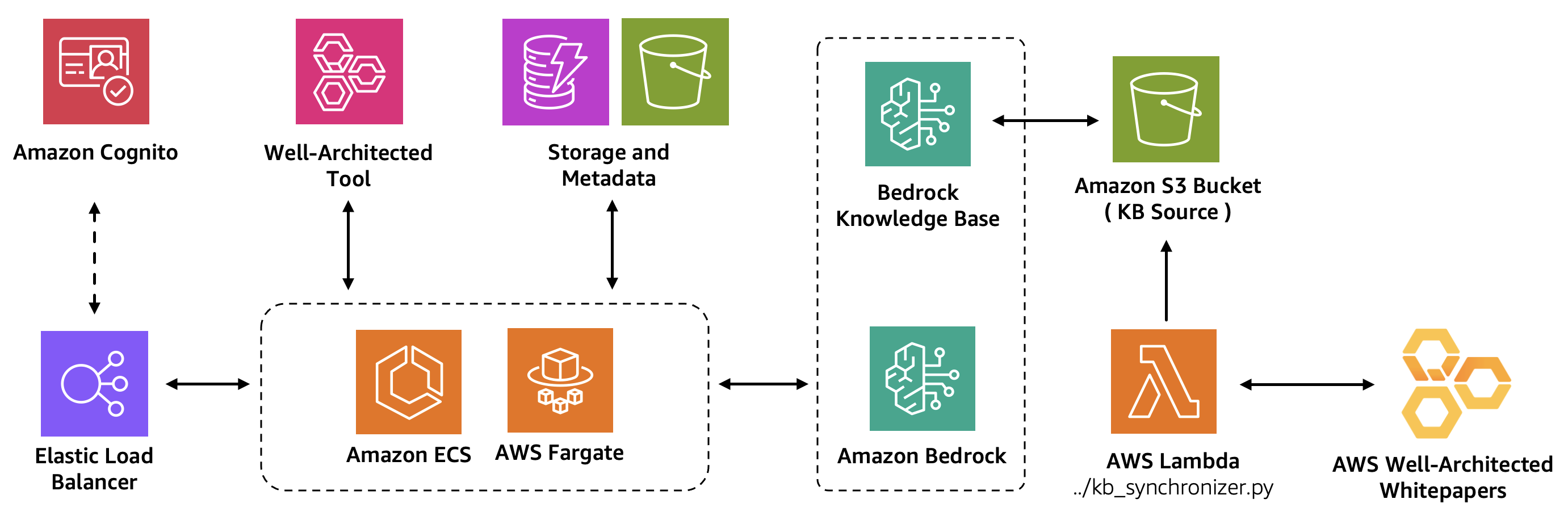

solutions_diagram

Description

Well-Architected Infrastructure as Code (IaC) Analyzer is a sample project that demonstrates how generative AI can be used to evaluate infrastructure code for alignment with best practices.

It features a modern web application built with React and AWS Cloudscape Design System, allowing users to upload IaC documents (e.g., AWS CloudFormation, Terraform, or AWS CDK templates), complete IaC projects (multiple files or zip archives), or architecture diagrams for assessment. The application leverages Amazon Bedrock to analyze the infrastructure against AWS Well-Architected best practices. These best practices are sourced from AWS Well-Architected whitepapers and synchronized with the Amazon Bedrock knowledge base.

This tool provides users with insights into how well their infrastructure code aligns with or deviates from established AWS best practices, offering suggestions for improving cloud architecture designs. Users can also upload supporting documents to provide additional context for more accurate analysis results. For architecture diagrams, it can even generate corresponding IaC templates following AWS best practices.

Additionally, an interactive Analyzer Assistant chatbot enables users to ask questions, seek clarification, and receive personalized guidance about analysis results and Well-Architected best practices.

Note: This is a sample project, for non-production usage. You should work with your security and legal teams to meet your organizational security, regulatory and compliance requirements before deployment

Features

NEW 🎯 Prioritization Framework with Eisenhower Matrix:
- Each Not Applied best practice is scored with Criticality (from Knowledge Base Risk Level), Complexity (remediation effort), and Priority (Immediate | Short-term | Long-term) derived via the Eisenhower Matrix
- New Priorities tab visualizes every relevant, Not Applied best practice on an interactive Eisenhower-style matrix, plotted by Risk criticality (impact) and Implementation effort (complexity) across four quadrants: Quick wins, Major initiatives, Delegate, and Reconsider
- Click any point on the matrix to open a details panel with the best practice's status reason, recommendation, and Criticality/Complexity/Priority reasons, or ask the Analyzer Assistant about it in one click
- Filter the analysis by Criticality, Complexity, or Priority to focus remediation planning, and export all fields to CSV
NEW 🧠 Enhanced AI Capabilities with Latest Anthropic Models:
- Full support for Claude Fable 5, Claude Opus 4.8, Claude Opus 4.7, Claude Sonnet 4.6, and Claude Opus 4.6 models
- Supported Claude models leverage Adaptive Thinking for complex reasoning and analysis
- 1M token context window natively supported by Claude Fable 5, Claude Opus 4.8, Claude Opus 4.7, Claude Opus 4.6, and Claude Sonnet 4.6 models, enabling analysis of much larger IaC projects and architectural documentation in a single pass
🚀 Accelerated Analysis with Parallel Processing:
- Configurable batch size controls how many Well-Architected (or selected Lens) questions are processed in parallel
- Complete full framework review up to 80% faster compared per-question sequential processing
- Default adjustable batch size configuration (between 1-12) balances speed and API throttling risk
💰 Cost-Optimized Vector Storage with Amazon S3 Vectors:
- S3 Vectors is the default vector store for the Bedrock Knowledge Base
- Achieve up to 80% cost reduction compared to OpenSearch Serverless while maintaining sub-second query performance
- OpenSearch Serverless remains available as an option for deployment

Upload and analyze Infrastructure as Code templates:
- CloudFormation (YAML/JSON)
- Terraform (.tf)
- AWS CDK (in any supported language)
Upload and analyze architecture diagrams:
- PNG format
- JPEG/JPG format
Analyze complete IaC projects:
- Multiple files at once
- ZIP archives containing infrastructure code
Upload and analyze architectural documentation in PDF format:
- PDF documents (up to 5 files, max 4.5MB each)
- With the recent "Citations API and PDF support for Claude models", the analyzer is now able to analyze text, charts and visuals (e.g. embedded images and diagrams) from the PDF documents.
Interactive Analyzer Assistant chatbot:
- Ask questions about analysis results
- Get detailed explanations of Well-Architected best practices
- Receive personalized guidance for implementation
- View conversation history with markdown support
- Download or delete chat histories for each analysis
Add supporting documents (PDF, TXT, PNG, JPEG) to provide additional context for analysis
Generate IaC templates from architecture diagrams
Real-time analysis against Well-Architected best practices
Integration with AWS Well-Architected Tool
Export analysis results and recommendations
Language Localization Support:
- Select your preferred language from the Output Language in Optional Settings menu
- Support for English, Japanese, Korean, Brazilian Portuguese, Spanish and French
- Language selection affects analysis results, recommendations, and detailed explanations
- Consistent localization across all file types (CloudFormation, Terraform, CDK, PDF documents, and architecture diagrams)
Multi-lens support:
- Analyze infrastructure against specialized Well-Architected lenses
- Support for domain-specific lenses including Serverless, IoT, SaaS, Machine Learning, and more
- Get tailored recommendations specific to your workload type
- Switch between different lenses for comprehensive analysis
Custom Lenses support:
- Extend analysis beyond AWS Official Lenses with your organization's own Custom Lenses
- Define custom pillars, questions, and best practices specific to your security policies, compliance requirements, or internal standards
- Integrate custom lens documentation (PDF) with the Amazon Bedrock Knowledge Base for AI-powered analysis
- See the Custom Lenses Guide for step-by-step instructions

Expand to see the list of supported AWS Official Lenses:

AWS Well-Architected Framework (core framework)
Industry Lenses:
- Financial Services Industry
- Healthcare Industry
- Government
- Mergers and Acquisitions
Technology Lenses:
- Generative AI
- Serverless Applications
- Machine Learning
- IoT (Internet of Things)
- SaaS (Software as a Service)
- Data Analytics
- Container Build
- DevOps
- Migration
- Connected Mobility
- SAP

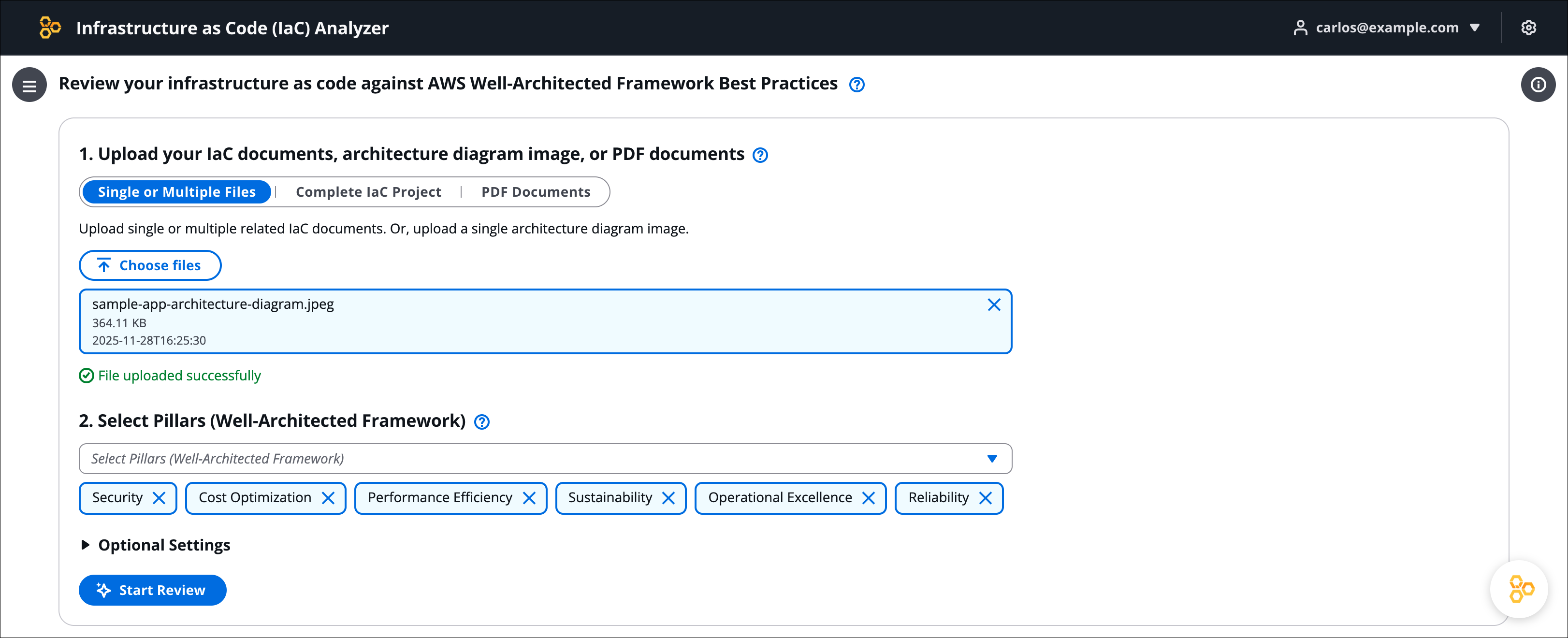

wa_aic_analyzer_screenshot_main

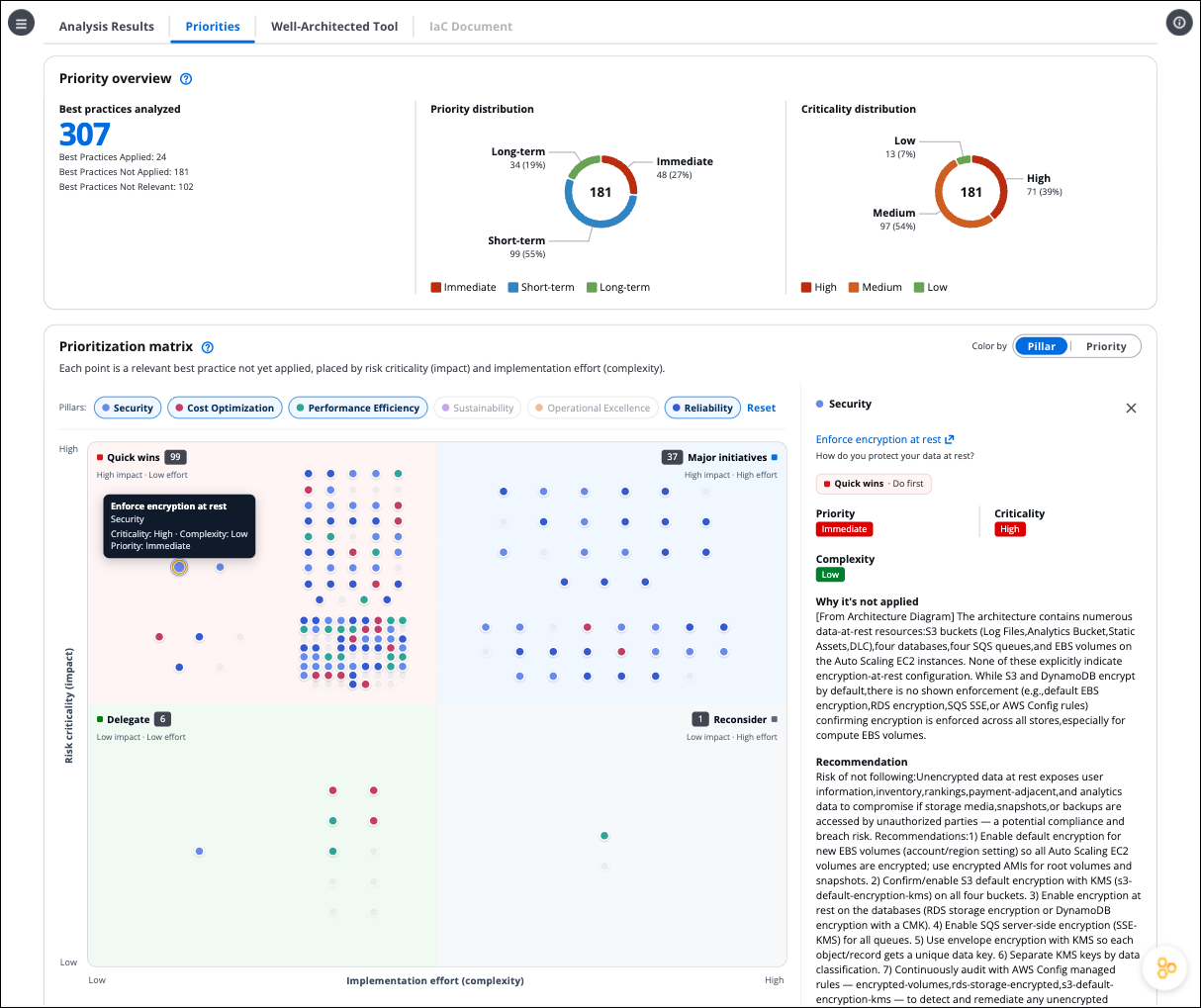

wa_aic_analyzer_screenshot_priorities

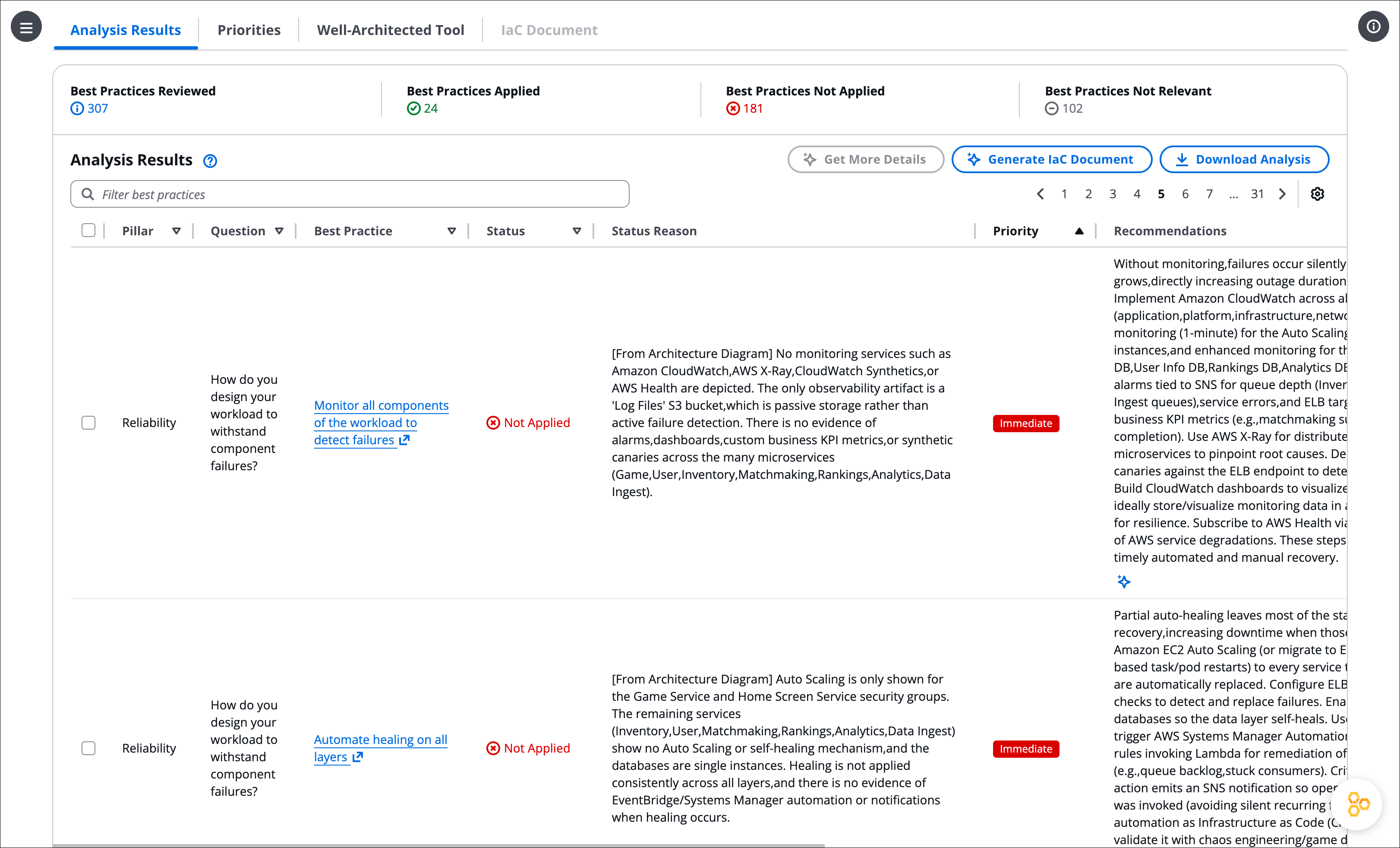

wa_aic_analyzer_screenshot_results

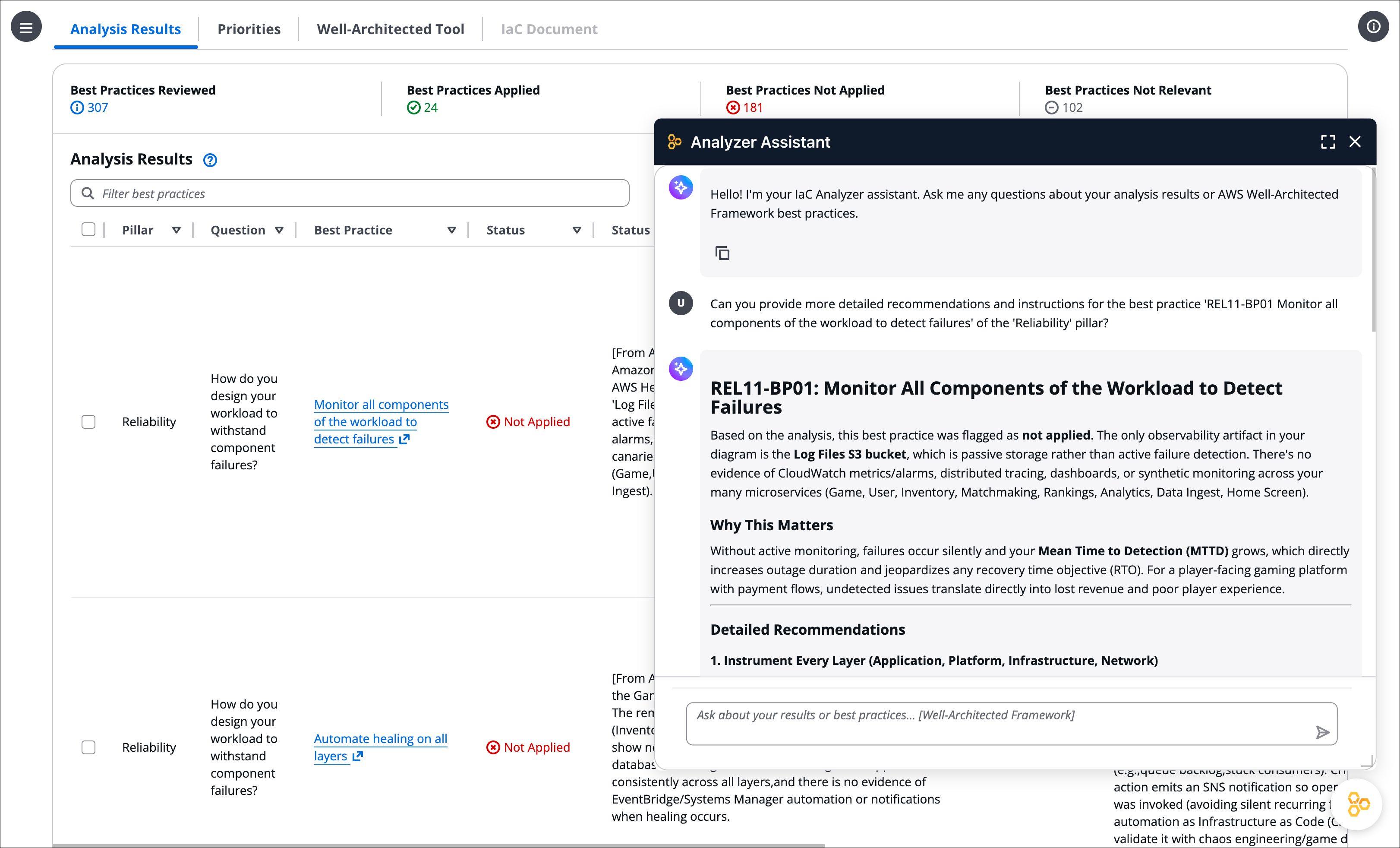

wa_aic_analyzer_screenshot_chat

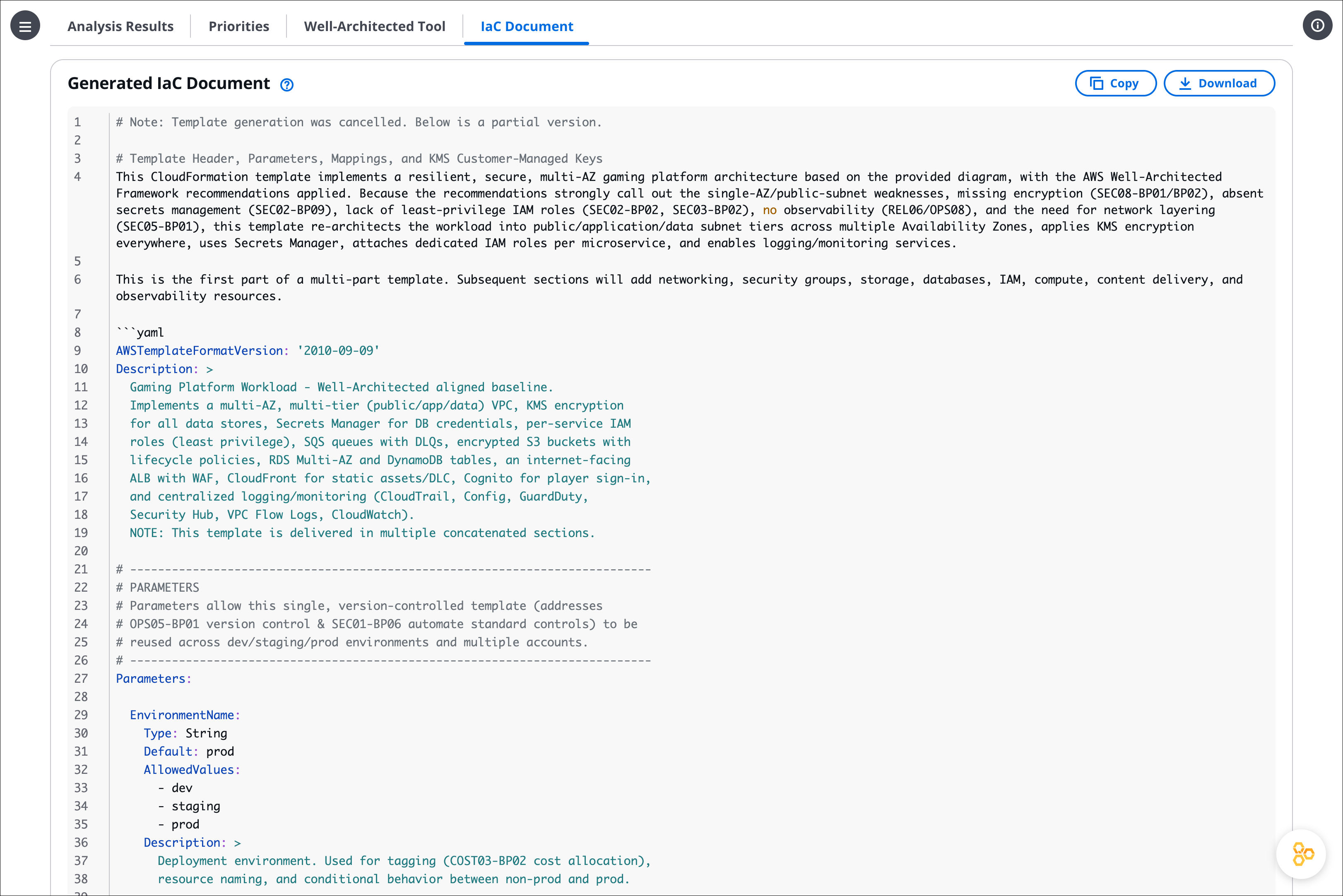

wa_aic_analyzer_screenshot_template_generation

Installation and Deployment

You have three options for deploying this solution:

Option 1: Using a CloudFormation Deployment Stack (Recommended)
Option 2: Using a Deployment Script
Option 3: Manual Deployment

Option 1: Using a CloudFormation Deployment Stack (Recommended)

This option uses AWS CloudFormation to create a temporary deployment environment to deploy the Well-Architected IaC Analyzer solution. This approach doesn't require any tools to be installed on your local machine.

Deployment Steps

Download the CloudFormation template: iac-analyzer-deployment-stack.yaml
Open the AWS CloudFormation console:
- Make sure you are in the same AWS region where you enabled access to the LLM models
On the "Create stack" page:
- Select "Upload a template file" and upload the iac-analyzer-deployment-stack.yaml template
- Choose "Next"
On the "Specify stack details" page. Enter or change the stack name, then:
- Change the stack parameters as needed. Check the CloudFormation Configuration Parameters section below for details
  - Security Note: By default, the stack deploys with a Public Application Load Balancer (internet-facing) with authentication enabled. For maximum security, we strongly recommend keeping authentication enabled for internet-facing deployments. If you disable authentication, your application will be publicly accessible without any security controls.
  - Model Selection Note: The tool currently defaults to Claude Sonnet 4.6. If you want to use a different model (E.g. Claude Fable 5, Claude Opus 4.8, or Claude Opus 4.7), you'll need to explicitly add the model ID in the stack "Amazon Bedrock Model ID" configuration parameter. Please note that not all models are available in all AWS regions, so verify availability in your region before deployment.
  - Geographic and Global Cross-Region Inference Note: The default Claude Sonnet 4.6 model ID uses a GLOBAL cross-Region inference profile (global.anthropic.claude-sonnet-4-6), which routes requests to any supported AWS commercial Region worldwide for optimal performance and cost savings. If your organization has data residency or compliance requirements, consider using a GEOGRAPHIC inference profile instead (e.g., "us." or "eu." prefix). For more information visit the documentation Choosing between Geographic and Global cross-Region inference
- Choose "Next" until reaching the "Review" page and choose "Submit".

The deployment process typically takes 15-20 minutes.

Once complete, you'll find a new CloudFormation stack named WA-IaC-Analyzer-{region}-GenAIStack containing all the deployed resources for this solution. Find the application URL in the stack outputs:

In the CloudFormation console, navigate to the Outputs tab of the stack named WA-IaC-Analyzer-{region}-GenAIStack
Look for the FrontendURL value

Post-Deployment Steps

If you enabled authentication with a custom domain:
- Create a DNS record (CNAME or Alias) pointing to the ALB domain name
If you created a new Cognito user pool:
- Navigate to the Amazon Cognito console
- Find the user pool created by the stack (named "WAAnalyzerUserPool")
- Add users who should have access to the application
Access your deployed application using the URL from the CloudFormation outputs (or your CNAME or Alias pointing to the ALB)

Troubleshooting

If you encounter issues during deployment, you can check the deployment logs in CloudWatch:

Log Group: iac-deployment-logs-<region>-<unique-id>
- This log group contains all deployment steps and actions
- Log Stream {instance_id}-user-data: Contains deployment instance initialization and setup logs
- Log Stream {instance_id}-deploy: Contains the complete Well-Architected IaC Analyzer deployment logs

You can also find a direct link to these logs in the Outputs tab of your CloudFormation deployment stack.

Option 2: Using a Deployment Script

Expand this section for instructions using the deployment script:

Prerequisites

The following tools must be installed on your local machine:

Node.js (v18 or later) and npm
Python (v3.11 or later) and pip
AWS CDK CLI
Either one of these container tools:
- Finch
- Docker
AWS CLI configured with appropriate credentials

Note: If you would like to change the default Load Balancer scheme, AI model or authentication options, check the Configuration Options For Manual Deployments section first before deploying.

Clone the Repository

hljs language-bash

git clone https://github.com/aws-samples/well-architected-iac-analyzer.git
cd well-architected-iac-analyzer

Make the deployment script executable:

hljs language-bash

chmod +x deploy-wa-analyzer.sh

Deploy with required parameters:

hljs language-bash

# Deploy using Docker
./deploy-wa-analyzer.sh -r us-west-2 -c docker

# Or deploy using Finch
./deploy-wa-analyzer.sh -r us-west-2 -c finch

The script will automatically:

Check for prerequisites
Set up the Python virtual environment
Install all dependencies
Deploy the CDK stack
Provide post-deployment information

After successful deployment, you can find the Application Load Balancer (ALB) DNS name in:

The outputs of the deploy-wa-analyzer.sh script
The outputs section of the CloudFormation stack named WA-IaC-Analyzer-{region}-GenAIStack in the AWS Console

Option 3: Manual Deployment

If you prefer to manually deploy step by step, expand this section for more instructions:

Prerequisites

The following tools must be installed on your local machine:

Node.js (v18 or later) and npm
Python (v3.11 or later) and pip
AWS CDK CLI
Either one of these container tools:
- Finch
- Docker
AWS CLI configured with appropriate credentials

Note: If you would like to change the default Load Balancer scheme, AI model or authentication options, check the Configuration Options For Manual Deployments section first before deploying.

Clone the Repository

hljs language-bash

git clone https://github.com/aws-samples/well-architected-iac-analyzer.git
cd well-architected-iac-analyzer

Set Up Python Virtual Environment

hljs language-bash

# Create virtual environment
python -m venv .venv

# Activate virtual environment
# On Linux/macOS:
source .venv/bin/activate
# On Windows:
.venv\Scripts\activate

# Verify you're in the virtual environment
# You should see (.venv) at the beginning of your prompt

Install Dependencies

Install Python dependencies:

hljs language-bash

pip3 install -r requirements.txt

Install CDK dependencies:

hljs language-bash

npm install

Install Frontend dependencies:

hljs language-bash

cd ecs_fargate_app/frontend
npm install
cd ../..

Install Backend dependencies:

hljs language-bash

cd ecs_fargate_app/backend
npm install
cd ../..

Deploy the Stack

Set the AWS region and ignore ECR credentials storage during CDK deployment:

hljs language-bash

export CDK_DEPLOY_REGION=us-west-2
export AWS_ECR_IGNORE_CREDS_STORAGE=true

Set the container runtime:

hljs language-bash

export CDK_DOCKER=finch  # For Finch

# OR

export CDK_DOCKER=docker # For Docker

Bootstrap CDK (if not already done):

hljs language-bash

cdk bootstrap

Deploy the stack:

hljs language-bash

cdk deploy

After successful deployment, you can find the Application Load Balancer (ALB) DNS name in:

The outputs of the cdk deploy command
The outputs section of the CloudFormation stack named WA-IaC-Analyzer-{region}-GenAIStack in the AWS Console

CloudFormation Configuration Parameters

The deployment stack template provides a comprehensive set of configuration options organized into parameter groups. Expand this to see more details:

Global Settings

Deploy with internet-facing Application Load Balancer? (PublicLoadBalancer)
- True (Default): Deploys an internet-facing load balancer accessible from the internet
- False: Deploys an internal load balancer accessible only within your VPC network
- Access considerations for internal load balancers: To access an internal load balancer, you'll need network connectivity to the deployed VPC via:
  - VPC peering
  - VPN connection
  - AWS Direct Connect
  - Other network connectivity solutions
- ⚠️ Security Warning: By default, authentication is enabled for secure access. If you disable authentication while using a public load balancer (True), your application will be publicly accessible without any security controls. We strongly recommend keeping authentication enabled for public-facing deployments.
Amazon Bedrock Model ID (ModelId)
- Default: global.anthropic.claude-sonnet-4-6 (Claude Sonnet 4.6)
- You can specify an alternative Bedrock model ID if needed
- Note: This application has been primarily tested with Anthropic models (Claude Fable 5, Claude Opus 4.8, Claude Opus 4.7, Claude Sonnet 4.6, Claude Opus 4.6, Claude Sonnet 4.5, and Claude Opus 4.5). While other Bedrock models may work, using different models might lead to unexpected results.
- Claude Fable 5: Uses always-on Adaptive Thinking (no thinking configuration is sent) with high effort. Natively supports 1M token context window.
- Claude Opus 4.8 / 4.7 models: Use Adaptive Thinking with xhigh effort for complex reasoning and analysis. Natively support 1M token context window.
- Claude 4.6 models: Use Adaptive Thinking with high effort for complex reasoning and analysis. Natively support 1M token context window.
- Claude 4.5 models: Use Extended Thinking with budget tokens for enhanced analysis.
Analysis Batch Size (BatchSize)
- Default: 5
- Range: 1-12
- Controls how many Well-Architected questions are processed in parallel during analysis
- Lower values (1-3): More conservative approach, reduces the risk of API throttling
- Higher values (6-12): Faster processing, but may increase the risk of API throttling
- Recommendation: Start with the default value of 5 and adjust based on your experience with API throttling

Authentication Settings

Enable Authentication (Authentication)
- True (Default): Enables authentication via the selected method
- False (Not Recommended): No authentication required to access the application
Authentication Method (AuthType)
- new-cognito (Default): Creates a new Amazon Cognito user pool
- existing-cognito: Uses an existing Amazon Cognito user pool
- oidc: Uses an OpenID Connect provider (Auth0, Okta, etc.)
- none (Not Recommended): No authentication
SSL Certificate ARN (CertificateArn)
- Required when Authentication is set to True
- Format: arn:aws:acm:region:account:certificate/certificate-id
- Important: Before enabling authentication, you must have a valid AWS Certificate Manager (ACM) certificate covering the DNS domain name that you plan to use for accessing the application

Authentication-Specific Settings

New Cognito User Pool Settings

These parameters are required when AuthType is set to new-cognito:

Cognito Domain Prefix (CognitoDomainPrefix)
- A unique prefix for your Cognito domain (e.g., wa-analyzer)
- The resulting domain will be: your-prefix.auth.region.amazoncognito.com
Allowed Callback URLs (CallbackUrls)
- Comma-separated list of URLs where users will be redirected after signing in
- Must include the URL you'll use to access the application, followed by /oauth2/idpresponse
- Example: https://wa-analyzer.example.com/oauth2/idpresponse
Logout Redirect URL (LogoutUrl)
- URL where users will be redirected after signing out
- Example: https://wa-analyzer.example.com

Existing Cognito User Pool Settings

These parameters are required when AuthType is set to existing-cognito:

Existing Cognito User Pool ARN (ExistingUserPoolArn)
- ARN of your existing Cognito user pool
- Format: arn:aws:cognito-idp:region:account:userpool/pool-id
Existing Cognito Client ID (ExistingUserPoolClientId)
- The client ID from your existing Cognito user pool
Existing Cognito Domain (ExistingUserPoolDomain)
- The domain of your existing Cognito user pool
- Can be a Cognito prefix domain: your-prefix.auth.region.amazoncognito.com
- Or a custom domain: auth.your-domain.com
Existing Cognito Logout URL (ExistingCognitoLogoutUrl)
- The URL users are redirected to after signing out
- Example: https://wa-analyzer.example.com

OpenID Connect (OIDC) Settings

These parameters are required when AuthType is set to oidc:

OIDC Issuer URL (OidcIssuer)
- The issuer URL for your OIDC provider
- Example for Auth0: https://your-tenant.us.auth0.com/authorize
OIDC Client ID (OidcClientId)
- The client ID from your OIDC provider
OIDC Authorization Endpoint URL (OidcAuthorizationEndpoint)
- The authorization endpoint of your OIDC provider
- Example for Auth0: https://your-tenant.us.auth0.com/authorize
OIDC Token Endpoint URL (OidcTokenEndpoint)
- The token endpoint of your OIDC provider
- Example for Auth0: https://your-tenant.us.auth0.com/oauth/token
OIDC User Info Endpoint URL (OidcUserInfoEndpoint)
- The user info endpoint of your OIDC provider
- Example for Auth0: https://your-tenant.us.auth0.com/userinfo
OIDC Logout URL (OidcLogoutUrl)
- The URL for logging out users
- Example for Auth0: https://your-tenant.us.auth0.com/v2/logout?client_id=your-client-id&returnTo=https://wa-analyzer.example.com

Important OIDC Note: Before deploying with OIDC authentication, you must create a secret in AWS Secrets Manager named WAIaCAnalyzerOIDCSecret containing your OIDC client secret in the same region where you'll deploy the stack:
hljs language-bash
# Using AWS CLI
aws secretsmanager create-secret \
  --name WAIaCAnalyzerOIDCSecret \
  --secret-string "your-oidc-client-secret" \
  --region <aws-region>

Configuration Options For Manual Deployments

If you are following either the Option 2 or 3 for deploying the solution, configuration parameters are managed from the `config.ini` file. Expand this section to learn more:

Model Selection

If you want to use a different model than the default Claude Sonnet 4.6, update the config.ini with the correct model ID:

hljs language-ini

[settings]
model_id = global.anthropic.claude-sonnet-4-6

Note: This application has been primarily tested with Anthropic models (Claude Fable 5, Claude Opus 4.8, Claude Opus 4.7, Claude Sonnet 4.6, Claude Opus 4.6, Claude Sonnet 4.5, and Claude Opus 4.5). While other Bedrock models may work, using different models might lead to unexpected results. The default model ID is set to global.anthropic.claude-sonnet-4-6. Claude Fable 5 uses always-on Adaptive Thinking with high effort and natively supports a 1M token context window. Claude Opus 4.8 and 4.7 models use Adaptive Thinking with xhigh effort and natively support 1M token context window. Claude 4.6 models use Adaptive Thinking with high effort and natively support 1M token context window, while Claude 4.5 models use Extended Thinking with budget tokens.

Batch Size Configuration

The batch size controls how many Well-Architected questions are processed in parallel during analysis. You can adjust this value in the config.ini file:

hljs language-ini

[settings]
batch_size = 5

Guidelines:

Default value: 5 (recommended for most use cases)
Lower values (1-3): More conservative, reduces API throttling risk
Higher values (6-12): Faster processing, but may increase throttling risk

If you experience API throttling errors during analysis, consider reducing the batch_size value.

Load Balancer Scheme Selection

By default, this project will deploy the Load Balancer scheme as internet-facing (Public load balancer), making it accessible from the internet.

If you need to change the load balancer scheme to internal, you can modify the public_load_balancer parameter in the config.ini file:

hljs language-ini

[settings]
public_load_balancer = False

To access an internal load balancer, you will need to be in the private network connected to the deployed VPC, either via:

VPC peering
VPN
AWS Direct Connect
Other network connectivity solutions

⚠️ Security Warning: The load balancer is internet-facing by default with authentication enabled for security. We strongly recommend keeping authentication enabled for internet-facing deployments. If you disable authentication (by setting authentication = False), the application and all its functionalities will be accessible directly through the Internet without any security controls. Proceed with caution and understand the security implications.

Authentication Options

Note: Before defining authentication settings, make sure you have a valid AWS Certificate Manager (ACM) certificate covering the DNS domain name (CNAME or Alias) that you plan to use to point to this application's ALB.

For Example:

If you own the domain *.example.com

And you plan to access the application via wa-analyzer.example.com (with a CNAME or Alias pointing to the ALB deployed by this stack)

You must first create or import a certificate in ACM that covers either:

*.example.com, or

wa-analyzer.example.com

Then, you can add the certificate's ARN in the certificate_arn parameter below when deploying the stack

The application can be deployed with different authentication configurations managed via the config.ini file.

A. New Cognito User Pool (Default Deployment)

HTTPS listener with AWS Cognito authentication
Creates a new Cognito user pool
Self-signup disabled by default

Example settings in config.ini:

hljs language-ini

# In below example, "wa-analyzer.example.com" is the DNS alias that you would create pointing to the ALB deployed by this CDK stack
authentication = True
auth_type = new-cognito
certificate_arn = arn:aws:acm:region:account:certificate/certificate-id
cognito_domain_prefix = your-domain-prefix
allback_urls = https://wa-analyzer.example.com/oauth2/idpresponse
logout_url = https://wa-analyzer.example.com

B. Existing Cognito User Pool

HTTPS listener with existing AWS Cognito authentication
Uses an existing Cognito user pool

Example settings in config.ini:

hljs language-ini

# In below example, "wa-analyzer.example.com" is the DNS alias that you would create pointing to the ALB deployed by this CDK stack
authentication = True
auth_type = existing-cognito
certificate_arn = arn:aws:acm:region:account:certificate/certificate-id
existing_user_pool_arn = arn:aws:cognito-idp:<aws-region>:<aws-account-id>:userpool/<user-pool-id>
existing_user_pool_client_id = <user-pool-client-id>
existing_user_pool_domain = <your-existing-cognito-domain-prefix>.auth.<aws-region>.amazoncognito.com # Example using Cognito prefix domain: https://docs.aws.amazon.com/cognito/latest/developerguide/cognito-user-pools-assign-domain-prefix.html
# Or; existing_user_pool_domain = wa-analyzer-auth.example.com # Example of custom domain (e.g. wa-analyzer-auth.example.com): https://docs.aws.amazon.com/cognito/latest/developerguide/cognito-user-pools-add-custom-domain.html)
existing_cognito_logout_url = https://wa-analyzer.example.com

C. OpenID Connect (OIDC)

HTTPS listener with OIDC authentication
Compatible with any OIDC-compliant identity provider

D. No Authentication (Not Recommended)

HTTP listener only
Can be deployed as public or private ALB
Example settings in config.ini:
hljs language-ini
```
authentication = False
auth_type = none
```

If you plan to use OIDC authentication (auth_type = oidc), follow these steps:

Before deployment, create a secret in AWS Secrets Manager named WAIaCAnalyzerOIDCSecret containing your OIDC client secret before deploying the stack. The secret must be created in the same AWS region where you plan to deploy the stack:

hljs language-bash

# Using AWS CLI
aws secretsmanager create-secret \
  --name WAIaCAnalyzerOIDCSecret \
  --secret-string "your-oidc-client-secret" \
  --region <aws-region>

# Or you can create it via the AWS Console:
# 1. Go to AWS Secrets Manager console
# 2. Choose "Store a new secret"
# 3. Choose "Other type of secret"
# 4. Enter your OIDC client secret as a plaintext value
# 5. Set the secret name exactly as: WAIaCAnalyzerOIDCSecret
# 6. Do not add any automatic rotation
# 7. Complete the secret creation

Configure OIDC settings in config.ini:

hljs language-ini

# Below is an example when using Okta as your OIDC IdP, refer to the config.ini file for more examples.
# In below example, "wa-analyzer.example.com" is the DNS alias that you would create pointing to the ALB deployed by this CDK stack
authentication = True
auth_type = oidc
certificate_arn = arn:aws:acm:region:account:certificate/certificate-id
oidc_issuer = https://<okta-tenant-id>.us.auth0.com/authorize
oidc_client_id = <okta-client-id>
oidc_authorization_endpoint = https://<okta-tenant-id>.us.auth0.com/authorize
oidc_token_endpoint = https://<okta-tenant-id>.us.auth0.com/oauth/token
oidc_user_info_endpoint = https://<okta-tenant-id>.us.auth0.com/userinfo
oidc_logout_url = https://<okta-tenant-id>.us.auth0.com/v2/logout?client_id=<oidc-client-id>&returnTo=https://wa-analyzer.example.com (# Refer to https://auth0.com/docs/authenticate/login/logout)

Clean up

You have two options to remove all resources created by this solution:

Option 1 - Using AWS Console (Recommended)

Open the CloudFormation console
Find and delete the stack named WA-IaC-Analyzer-{region}-GenAIStack

Option 2 - Using the Destroy Script

Only use this clean up option if you followed either Option 2 or 3 when deploying the solution. Expand for more details:

Make the destroy script executable:

hljs language-bash

chmod +x destroy-wa-analyzer.sh

Run the script with required parameters. Make sure to use the same region where you deployed the stack:

hljs language-bash

# Clean up using Docker
./destroy-wa-analyzer.sh -r us-west-2 -c docker

# Or clean up using Finch
./destroy-wa-analyzer.sh -r us-west-2 -c finch

The script will automatically:

Verify prerequisites
Set up the necessary environment
Destroy all resources in the stack

Local Development

For development purposes, you can run the application locally using either Finch or Docker containers. This allows you to make changes to the code and see them reflected immediately without having to deploy code changes into your AWS stack.

Prerequisites for Local Development

In addition to the main prerequisites, ensure you have:

Either Finch or Docker installed and running
AWS credentials configured with access to required services
Access to Amazon Bedrock service and the required models (as described in the main Prerequisites section)

Setting up Required AWS Resources

Note for Existing Stack Users: If you have already deployed this CDK stack in your AWS account, you can skip the manual resource creation steps below. Instead:

Go to the CloudFormation console and find your stack (it starts with "WA-IaC-Analyzer-")

In the "Outputs" tab of the CDK CloudFormation stack, find:

KnowledgeBaseID: Use this value for KNOWLEDGE_BASE_ID in your .env file (for "Setting up Local Development Environment" section below)

WellArchitectedDocsS3Bucket: Use this value for WA_DOCS_S3_BUCKET in your .env file (for "Setting up Local Development Environment" section below)

LensMetadataTableName: Use this value for LENS_METADATA_TABLE in your .env file (for "Setting up Local Development Environment" section below)

AnalysisStorageBucketName: Use this value for ANALYSIS_STORAGE_BUCKET in your .env file (for "Setting up Local Development Environment" section below)

AnalysisMetadataTableName: Use this value for ANALYSIS_METADATA_TABLE in your .env file (for "Setting up Local Development Environment" section below)

If you haven't deployed the stack yet, follow the steps below:

To simplify setup for development, you can deploy just the required Knowledge Base and Storage layer components:

Navigate to the local development directory:
hljs language-bash
```
cd local_development
```

Set Up Python Virtual Environment

hljs language-bash

# Create virtual environment
python -m venv .venv

# Activate virtual environment
# On Linux/macOS:
source .venv/bin/activate
# On Windows:
.venv\Scripts\activate

# Verify you're in the virtual environment
# You should see (.venv) at the beginning of your prompt

Install the required dependencies:
hljs language-bash
```
pip3 install -r requirements.txt
```

Deploy the KB storage stack:

hljs language-bash

# Set your preferred AWS region
export CDK_DEPLOY_REGION=us-west-2 # Or your preferred region where you have enabled the LLM models
export CDK_DOCKER=finch # Or docker

# Bootstrap CDK (if you haven't done this before)
cdk bootstrap

# Deploy the dev stack (which only deploys Bedrock KB and storage layer resources)
cdk deploy --require-approval never

After deployment completes, note the outputs from the CloudFormation stack:
- KnowledgeBaseID: Use for KNOWLEDGE_BASE_ID in your .env file in the following section.
- WellArchitectedDocsS3Bucket: Use for WA_DOCS_S3_BUCKET in your .env file in the following section.
- LensMetadataTableName: Use for LENS_METADATA_TABLE in your .env file in the following section.
- AnalysisStorageBucketName: Use for ANALYSIS_STORAGE_BUCKET in your .env file in the following section.
- AnalysisMetadataTableName: Use for ANALYSIS_METADATA_TABLE in your .env file in the following section.

Setting up Local Development Environment

Create a .env file in the root directory with the following variables:

hljs language-ini

# AWS Authentication
AWS_REGION=your-aws-region-key
AWS_ACCESS_KEY_ID=your-access-key
AWS_SECRET_ACCESS_KEY=your-secret-key
AWS_SESSION_TOKEN=your-session-token

# Well-Architected Framework Resources
WA_DOCS_S3_BUCKET=your-knowledgebase-source-bucket-name
LENS_METADATA_TABLE=your-lens-metadata-table-name
KNOWLEDGE_BASE_ID=your-kb-id
MODEL_ID=global.anthropic.claude-sonnet-4-5-20250929-v1:0

# Analysis Configuration
BATCH_SIZE=5

# Storage Configuration
STORAGE_ENABLED=true
ANALYSIS_STORAGE_BUCKET=your-analysis-storage-bucket-name
ANALYSIS_METADATA_TABLE=your-analysis-metadata-table-name

Security Note: It is encouraged the use of temporary credentials (including AWS_SESSION_TOKEN) when running the application locally. More details in Temporary security credentials in IAM. Temporary credentials have a limited lifetime and automatically expire, providing an additional layer of security.

Make the development script executable:

hljs language-bash

# Make sure you are in the root directory of this project
chmod +x dev.sh

Start the development environment using either Docker or Finch:

hljs language-bash

# Using Docker
./dev.sh -c docker -up

# Or using Finch
./dev.sh -c finch -up

This will:

Build and start the frontend container (available at http://localhost:8080)
Build and start the backend container (available at http://localhost:3000)
Enable hot reloading for both frontend and backend changes
Mount source code directories as volumes for immediate updates

To stop the development environment:

hljs language-bash

# Using Docker
./dev.sh -c docker -down

# Or using Finch
./dev.sh -c finch -down

Development Commands Reference

hljs language-bash

# Start development environment
./dev.sh -c <container_tool> -up

# Stop development environment
./dev.sh -c <container_tool> -down

# Show help and usage information
./dev.sh -h

Where <container_tool> is either docker or finch.

Contributing

See CONTRIBUTING for more information.

Want to add support for a new language? Check out our localization guide for step-by-step instructions.

License

This library is licensed under the MIT-0 License. See the LICENSE file.

well-architected-iac-analyzer

Well-Architected IaC (Infrastructure as Code) Analyzer

Description

Features

Installation and Deployment

Option 1: Using a CloudFormation Deployment Stack (Recommended)

Deployment Steps

Post-Deployment Steps

Troubleshooting

Option 2: Using a Deployment Script

Prerequisites

Option 3: Manual Deployment

Prerequisites

CloudFormation Configuration Parameters

Global Settings

Authentication Settings

Authentication-Specific Settings

New Cognito User Pool Settings

Existing Cognito User Pool Settings

OpenID Connect (OIDC) Settings

Configuration Options For Manual Deployments

Model Selection

Batch Size Configuration

Load Balancer Scheme Selection

Authentication Options

Clean up

Option 1 - Using AWS Console (Recommended)

Option 2 - Using the Destroy Script

Local Development

Prerequisites for Local Development

Setting up Required AWS Resources

Setting up Local Development Environment

Development Commands Reference

Contributing

License

Similar Packages

Tags

Original Author

Publisher
