OpenRazorRGB

A native macOS app to control the RGB lighting of a Razer BlackWidow V3 Pro (Wired) keyboard — without Razer Synapse.

Built with Swift + IOKit. The lighting protocol is reimplemented from OpenRGB. No kernel extension, no libusb, no root — pure IOKit HID feature reports.

Screenshots

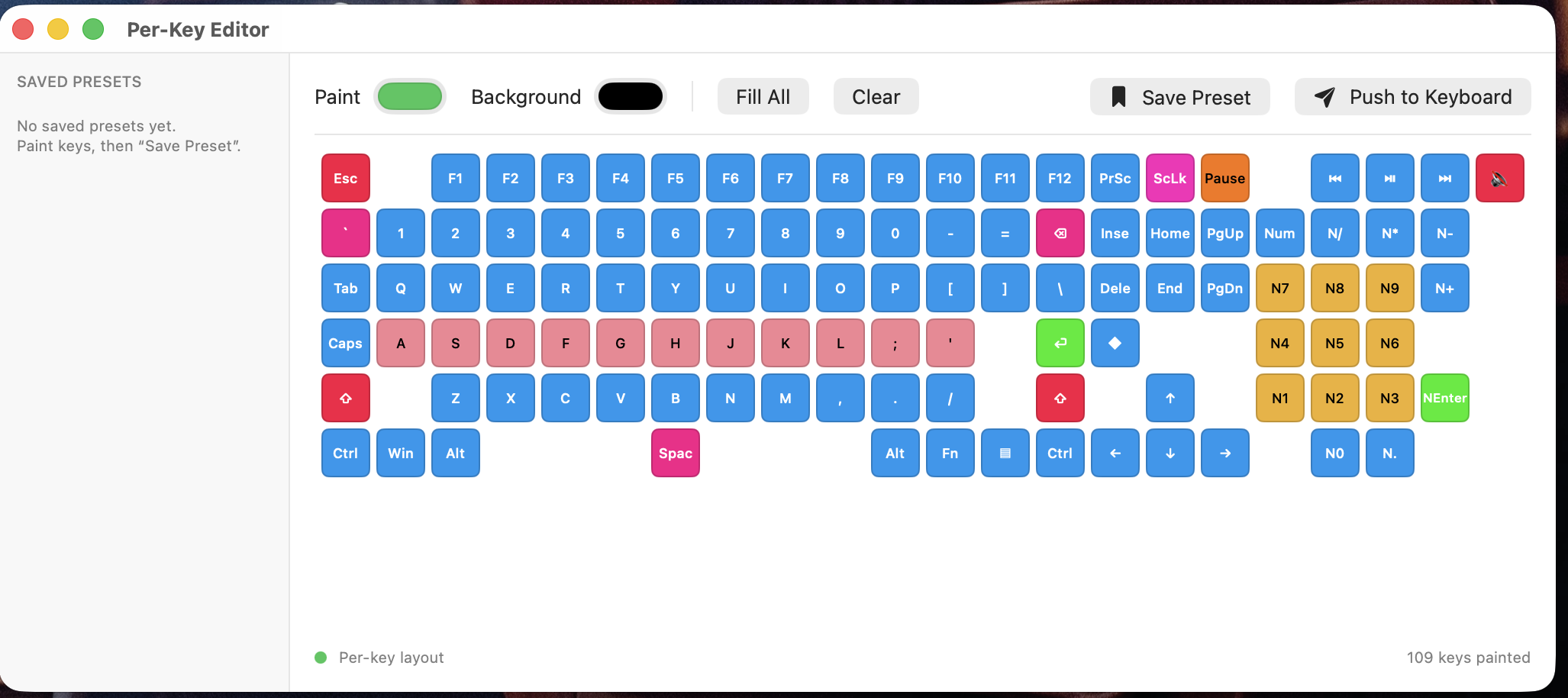

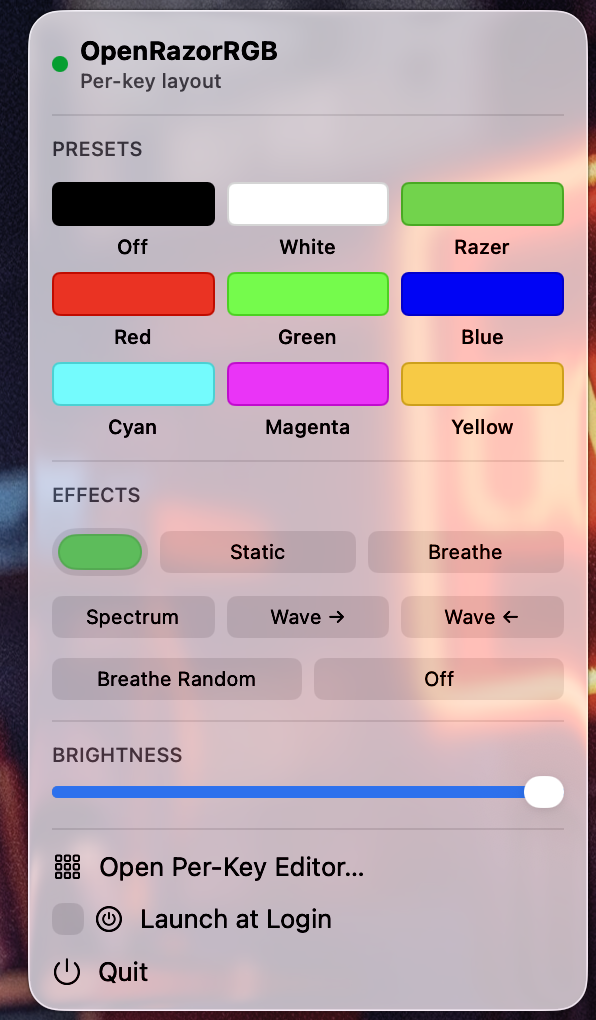

Menu-bar popover	Per-key editor with saved presets

Project structure

The SwiftPM package (Package.swift) and the Xcode project (project.yml → OpenRazorRGB.xcodeproj) share the same source files in Sources/. Use SwiftPM for quick CLI iteration; use Xcode to build the distributable .app.

Requirements

• macOS 13 Ventura or later
• Xcode 15+ / Swift 6+ (install via the App Store or xcode-select --install)
• A Razer BlackWidow V3 Pro (Wired) connected over USB

xcodegen is required to regenerate the .xcodeproj if you modify project.yml: brew install xcodegen && xcodegen generate

1. Build

git clone <this-repo>
cd OpenRazorRGB

# Recommended: build + install the signed .app and restart it
make prod

# Or, for quick SwiftPM iteration (bare binary):
swift build
swift build -c release   # optimised, required for the Claude Code hooks (section 3)

See section 2c for the full make command reference.

2. macOS permission: Input Monitoring

The keyboard's control interface sits on the Generic Desktop HID usage page, which macOS gates behind Input Monitoring (TCC). You must grant this permission to each binary you want to use.

Grant permission: System Settings → Privacy & Security → Input Monitoring → click +

The permission is per binary path. You will need to grant it separately for:

• Your terminal app — for swift run razer-poc … during development
• ~/.local/bin/razer-poc — for the installed CLI (section 3)

Tip: If a command returns kIOReturnNotPermitted, toggle the entry off and back on in System Settings, then fully quit and reopen your terminal.

2a. CLI tool (razer-poc)

Run directly from the build output during development:

# Safe: enumerate HID collections, no writes
swift run razer-poc --list

# Diagnostics: firmware version + device mode read-back
swift run razer-poc --info

# Set all keys to a solid color (hex RRGGBB)
swift run razer-poc 00ff00        # green
swift run razer-poc ff0000        # red

# Hardware effects
swift run razer-poc --spectrum             # animated rainbow
swift run razer-poc --wave-right           # wave →
swift run razer-poc --wave-left            # wave ←
swift run razer-poc --breathe ff0000       # breathing, one color
swift run razer-poc --breathe-random       # breathing, random colors
swift run razer-poc --off                  # lights off

# Brightness (0–255); --save persists to onboard memory
swift run razer-poc --save --brightness 200 00ff00

# Keymap validation: W/A/S/D red, arrow keys blue
swift run razer-poc --wasd

First run note: If the keyboard is dark after running a color command, its onboard brightness is saved at 0. Fix it with: swift run razer-poc --save --brightness 255 00ff00 After that, colors display without --save.

2b. Menu-bar app — quick run (development)

swift run OpenRazorRGBApp

Grant Input Monitoring to your terminal. Look for the ⌨️ icon in the menu bar.

The app:

• Connects automatically on launch and reapplies your last saved layout
• PRESETS section — one-click solid colors
• EFFECTS section — Static, Breathe (color/random), Spectrum, Wave →/←, Off
• Brightness slider — persists to onboard memory on release
• Per-key editor — click any key to paint it; changes push live to the keyboard
• Launch at Login toggle — registers/removes via SMAppService
• Saves a single layout to ~/Library/Application Support/OpenRazorRGB/state.json

2c. Menu-bar app — Xcode build (recommended for daily use)

Building with Xcode produces a signed .app bundle with a stable code identity. This means the Input Monitoring grant survives every rebuild — you only grant it once.

Prerequisites

• Add your Apple ID to Xcode (free account sufficient): Xcode → Settings → Accounts → + → Apple ID
• Install xcodegen: brew install xcodegen

One-time: configure signing in Xcode

open OpenRazorRGB.xcodeproj

In Xcode:

1. Click OpenRazorRGB at the top of the Project Navigator (left sidebar)
2. Select the OpenRazorRGB target (under TARGETS)
3. Signing & Capabilities tab → check Automatically manage signing
4. Set Team to your Apple ID

Build, install, and restart — make prod

make prod

This single command:

1. Regenerates the .xcodeproj with xcodegen (syncs new source files)
2. Builds a Release .app with Xcode (signed with your Apple ID)
3. Installs it to ~/Applications/OpenRazorRGB.app
4. Kills the running instance and relaunches the new build

After the first make prod, grant Input Monitoring (one-time): System Settings → Privacy & Security → Input Monitoring → + → select ~/Applications/OpenRazorRGB.app.

This grant is permanent — the bundle ID com.nmartignole.openrazorrgb + your signing certificate is stable, so future make prod runs don't revoke it.

Launch at Login

Click the ⌨️ menu bar icon → check Launch at Login. macOS registers it via SMAppService and adds it to System Settings → General → Login Items.

Makefile reference

Regenerating the Xcode project manually

The .xcodeproj is generated from project.yml using xcodegen. make prod and make release run xcodegen generate automatically. If you edit project.yml by hand and want to regenerate without a full build:

xcodegen generate   # rewrites OpenRazorRGB.xcodeproj in place

3. Claude Code hooks (optional)

Wire Claude Code's lifecycle events to keyboard colors so the keyboard becomes a physical status light for Claude's activity — and a context-window progress bar on the F1–F12 row.

There are two complementary pieces:

1. Status colors — each Claude lifecycle event lights the whole keyboard with a color reflecting what Claude is doing.
2. Context bar — on every prompt, F1–F12 light up as a gradient progress bar showing how full the context window is (red → green as it fills).

The trick: status-color commands use --status-color (not --static), which preserves the F1–F12 context gradient while filling the rest of the keys with the status color. --static would wipe the context bar.

Install the CLI + context-bar script to a stable path

Hooks fire from Claude Code's process, which needs its own TCC grant:

# Build release binary
swift build -c release

# Install to a user-owned stable path (no sudo needed)
mkdir -p ~/.local/bin
cp .build/release/razer-poc ~/.local/bin/razer-poc
chmod 755 ~/.local/bin/razer-poc

# Install the context-bar helper script (shipped in this repo)
cp hooks/razer-context-bar.sh ~/.local/bin/razer-context-bar.sh
chmod 755 ~/.local/bin/razer-context-bar.sh

Grant Input Monitoring to ~/.local/bin/razer-poc in System Settings.

Verify it works:

~/.local/bin/razer-poc --spectrum              # should animate rainbow
~/.local/bin/razer-poc --status-color ff8800   # rest of keys amber, F-row bar preserved

Color scheme

The F1–F12 context bar lights 1–12 keys (one per ~8% of the context window) with a green→red gradient; the percentage is read from the transcript JSONL by razer-context-bar.sh and cached to /tmp/razer-context-percent so subsequent --status-color hooks can overlay the gradient without re-parsing.

Configure the hooks

Add the following to your ~/.claude/settings.json (merge into the existing "hooks" key — do not replace other settings). Replace YOUR_USER with your macOS username:

{
  "hooks": {
    "SessionStart": [
      { "matcher": "", "hooks": [
        { "type": "command", "command": "/Users/YOUR_USER/.local/bin/razer-poc --breathe 0066ff &" }
      ]}
    ],
    "UserPromptSubmit": [
      { "matcher": "", "hooks": [
        { "type": "command", "command": "/bin/bash /Users/YOUR_USER/.local/bin/razer-context-bar.sh" }
      ]}
    ],
    "PreToolUse": [
      { "matcher": "Bash",  "hooks": [{ "type": "command", "command": "/Users/YOUR_USER/.local/bin/razer-poc --status-color ff8800 &" }] },
      { "matcher": "Edit",  "hooks": [{ "type": "command", "command": "/Users/YOUR_USER/.local/bin/razer-poc --status-color aa44ff &" }] },
      { "matcher": "Write", "hooks": [{ "type": "command", "command": "/Users/YOUR_USER/.local/bin/razer-poc --status-color aa44ff &" }] },
      { "matcher": "Read",  "hooks": [{ "type": "command", "command": "/Users/YOUR_USER/.local/bin/razer-poc --status-color 0055aa &" }] }
    ],
    "PostToolUse": [
      { "matcher": "Bash", "hooks": [
        { "type": "command", "command": "/Users/YOUR_USER/.local/bin/razer-poc --status-color 00ff66 &" }
      ]}
    ],
    "PostToolUseFailure": [
      { "matcher": "", "hooks": [
        { "type": "command", "command": "/Users/YOUR_USER/.local/bin/razer-poc --breathe ff0000 &" }
      ]}
    ],
    "Stop": [
      { "matcher": "", "hooks": [
        { "type": "command", "command": "/Users/YOUR_USER/.local/bin/razer-poc --spectrum &" }
      ]}
    ]
  }
}

Why & on every command: PreToolUse hooks block the tool call until the command exits. The & forks it to the background so Claude isn't delayed. The UserPromptSubmit context-bar script runs without & because it must finish writing /tmp/razer-context-percent before the subsequent --status-color hooks read it — but it still completes in milliseconds.

Why --status-color and not --static: --status-color reads the cached context percent and keeps the F1–F12 gradient lit while filling every other key with the status color. --static sets a flat hardware effect and would erase the context bar on each tool call.

How the context bar works

hooks/razer-context-bar.sh (installed to ~/.local/bin/) reads the last assistant message's usage object from the transcript JSONL, sums input_tokens + cache_read_input_tokens + cache_creation_input_tokens, divides by the model's context window (200K, or 1M for [1m] sessions), and calls razer-poc --context-bar <percent>. The PoC lights F1…F12 with a green→red gradient up to that percentage and persists it to /tmp/razer-context-percent. Later --status-color calls read that file to re-light the same F-keys while painting the rest of the keyboard.

Prompt to set this up with Claude Code

If you want Claude Code to configure the hooks automatically for your system, paste this prompt:

I have a Razer BlackWidow V3 Pro keyboard and the OpenRazorRGB project at
~/Dev/OpenRazorRGB. The release CLI binary is at ~/.local/bin/razer-poc and
already has Input Monitoring permission. The context-bar helper is at
~/.local/bin/razer-context-bar.sh.

Please:
1. Build the release binary with `swift build -c release` from ~/Dev/OpenRazorRGB
2. Copy it to ~/.local/bin/razer-poc
3. Copy hooks/razer-context-bar.sh to ~/.local/bin/razer-context-bar.sh
4. Update ~/.claude/settings.json to add keyboard RGB hooks:
   - SessionStart → breathe blue (0066ff)
   - UserPromptSubmit → run ~/.local/bin/razer-context-bar.sh (NO trailing &)
   - PreToolUse Bash   → --status-color amber  (ff8800)
   - PreToolUse Edit   → --status-color purple (aa44ff)
   - PreToolUse Write  → --status-color purple (aa44ff)
   - PreToolUse Read   → --status-color steel  (0055aa)
   - PostToolUse Bash  → --status-color green  (00ff66)
   - PostToolUseFailure → breathe red (ff0000)
   - Stop → spectrum rainbow
   Use --status-color (NOT --static) so the F1-F12 context bar is preserved.
   All commands end with & except the UserPromptSubmit context-bar script.
   Preserve any existing hooks (especially sound hooks on Stop/Notification).
5. Validate the settings.json is valid JSON before finishing.

Protocol reference

See CLAUDE.md for the full Razer HID protocol reference, macOS gotchas (especially the onboard brightness finding), the keymap extraction method, and project status.

Testing

The RazerKit core has unit tests covering the report wire format/CRC, RGB hex parsing, and the 109-key layout map:

swift test

Tests run without hardware (no HID I/O); they validate the pure protocol and data-model logic.

License

Released under the BSD 3-Clause License. See LICENSE.

Copyright (c) 2025 Nicolas Martignole.

This project reimplements the Razer HID lighting protocol in pure Swift/IOKit and contains no code from Razer Inc. or OpenRGB. "Razer" and "BlackWidow" are trademarks of their respective owners; this project is not affiliated with or endorsed by them.
